Jufeng 0.7-16MPa 6.5m³/min Refrigerated Air Dryer
Jufeng 0.7-16MPa 6.5m³/min Refrigerated Air Dryer
Jufeng 0.7-16MPa 6.5m³/min Refrigerated Air Dryer
Jufeng 0.7-16MPa 6.5m³/min Refrigerated Air Dryer
Jufeng 0.7-16MPa 6.5m³/min Refrigerated Air Dryer
Jufeng 0.7-16MPa 6.5m³/min Refrigerated Air Dryer
Specifications
Brand Name :
Jufeng
Model Number :
JF-050
Certification :
Rohs, CE
Place of Origin :
China
MOQ :
1 unit
Price :
contact us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2000 unit per month
Delivery Time :
5-7 work days
Packaging Details :
wooden case
Name :
Refrigerated Air Dryer
Pressure :
16 bar
Ambient temperature :
1-38°C
Air volume :
6.5 m³/min
Pressure dew point :
2 — 10℃
Warranty :
1 Year
Supply Power :
220V/50Hz
Net weight :
49.2kg
Description

Jufeng 0.7-16MPa 6.5m³/min Refrigerated Air Dryer


Product introduction

The JF-050 Refrigerated Air Dryer is designed to deliver ISO 8573-1 Class 4 compressed air by effectively removing moisture, oil aerosols, and contaminants. Ideal for industrial applications requiring 6.5 m³/min flow at 16 bar, it ensures reliable performance with 3°C dew point to protect downstream equipment from corrosion and operational downtime.

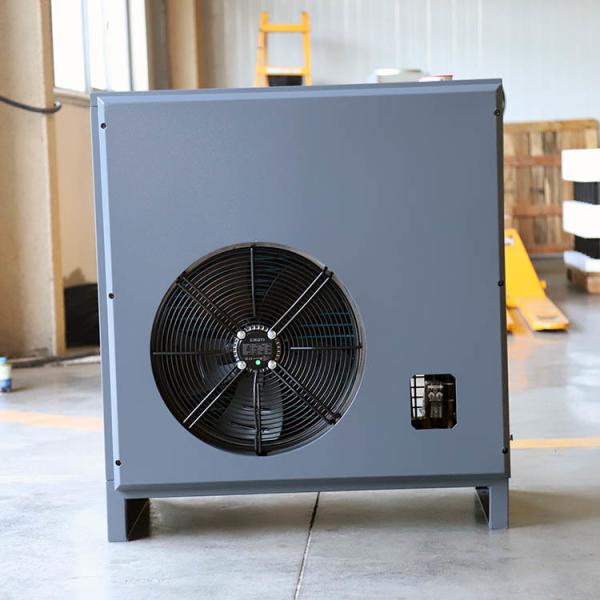

Product photo

Jufeng 0.7-16MPa 6.5m³/min Refrigerated Air Dryer


Product parameter

Air handling capacity 6.5m³/min
Compressed air inlet pressure 7~16 bar
Air inlet temperature ≦ 60℃
Standard ambient temperature 1~38℃
Pressure dew point 2-10℃
Pressure loss ≦ 0.018Mpa
Drain valve Electronic automatic drain valve
Cooling method Air cooling
Power supply V/PH/Hz 110VAC 60Hz 1P
Machine power 1.68kw
Compressor power 1.52kw/60Hz
refrigerant R410A
Inlet and outlet interface size G1-1/2"
Dimensions(l*w*h) 860mm × 530mm × 960mm
Net weight 49.2kg
