Advanced MBR Machine System for 100L/Hour Sewage Water Treatment Professional Plant
Advanced MBR Machine System for 100L/Hour Sewage Water Treatment Professional Plant
Advanced MBR Machine System for 100L/Hour Sewage Water Treatment Professional Plant
Advanced MBR Machine System for 100L/Hour Sewage Water Treatment Professional Plant
Advanced MBR Machine System for 100L/Hour Sewage Water Treatment Professional Plant
Advanced MBR Machine System for 100L/Hour Sewage Water Treatment Professional Plant
Specifications
Condition :
New
Applicable Industries :
Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2024
Warranty of core components :
1 Year
Core Components :
Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC
Place of Origin :
Shandong, China
Brand Name :
Juchuan
Size :
4.7*2*2m
Power :
6.1
Warranty :
1 Year
Productivity :
100L/Hour
Weight (KG) :
2900 kg
Product name :
Integrated sewage treatment equipment
Type :
Ground or underground
Color :
Customized Color
Certification :
ISO
Inspection report :
Provided
After Warranty Service :
Video Technical Support\Online Support\Spare Parts
Brand :
Juchuan
MOQ :
1set
Packing :
Custom Packaging
Port :
Qingdao Port
Price :
$8,998.00/plants 1-9 plants
Description
Product Overview

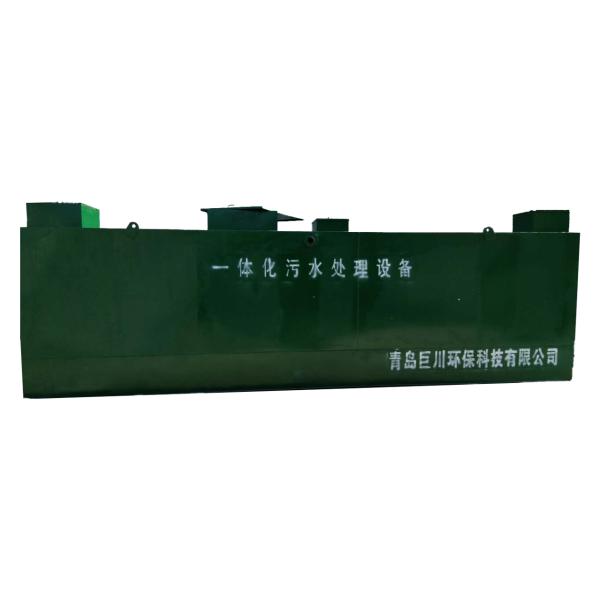

Integrated Sewage Treatment Equipment

With the growth of economy and population, the pollution of nature has attracted more and more attention. On the basis of summarizing the operation experience of domestic and foreign sewage treatment device, combined with our own scientific research and engineering practice, we designed the integration of sewage treatment equipment. Adopted advanced technology and manufacturing technology, the equipment is mainly made of anti-corrosion carbon steel. Its main purpose is to treat the domestic sewage and similar industrial organic wastewater to meet the buyer’s requirements.
The equipment is mainly used for domestic sewage treatment of rural areas, community areas, high-end hotels, hospitals, comprehensive office buildings and all kinds of public buildings. The quality of the water treated by the equipment can meet the discharge standards.
Products Description
(1) The equipment can be installed on the ground or underground; if buried underground, the surface above the equipment can be used as greening or other land, without building, heating and insulation.
(2) The bio-contact oxidation treatment process adopts push-flow type biological contact oxidation. Its treatment effect is better than that of the complete mixed and secondary series complete mixed biological contact oxidation tank. It is smaller than the activated sludge tank and has strong adaptability to water quality. It has good impact load resistance, stable effluent quality, and will not produce sludge expansion. The tank uses a new type of combined filler, which has a large specific surface area and make it easy for microorganisms to hang in and remove from membranes. Under the same organic load condition, it has a high removal rate of organic matter and can increase dissolved oxygen in the water.
(3) The biochemical tank adopts the bio-contact oxidation. The volume load is relatively low. The microorganisms are in their own oxidation stage, the amount of mud produced is less. It only takes three months or more(90 days) to discharge mud once (sucked with a fecal truck).
(4) The whole set of equipment is equipped with automatic electrical control system and fault alarm system, so that the operation is safe and reliable, usually do not need special management, only requires timely maintenance and upkeep of the equipment.
Advanced MBR Machine System for 100L/Hour Sewage Water Treatment Professional Plant
Project
Inlet water (mg/L)
Outlet water (mg/L)
COD
<300
60
BOD5
<150
20
SS
<200
20
TN
<50
20
NH4-N
<40
8
TP
<4.0
1.0
PH
6.0-9.0
6.0-9.0
Note: The inlet and outlet water quality can be adjusted according to the water quality data provided by user.
Recommend Products
Advanced MBR Machine System for 100L/Hour Sewage Water Treatment Professional Plant
Advanced MBR Machine System for 100L/Hour Sewage Water Treatment Professional Plant
Advanced MBR Machine System for 100L/Hour Sewage Water Treatment Professional Plant
Product Paramenters
Model
Treatment of water quantity (m3/d)
Dimensions (m)
Weight (t)
Power (kW)
Total Area (m2)
JCWSZ-30
30
4.7*2*2
2.9
6.1
26
JCWSZ-50
50
6.5*2*2.5
5.07
6.1
34
JCWSZ-70
70
8*2.25*2.5
6.31
7.5
41
JCWSZ--100
100
11.5*2.25*2.5
8.3
9.1
52
JCWSZ-150
150
12*3*2.7
11.22
14.85
72
JCWSZ-200
200
15.5*3*2.7
15.53
15.55
91
JCWSZ-250
250
19.5*3*2.7
17.3
21.8
110
JCWSZ-300
300
23.5*3*2.7
20.05
21.8
127
JCWSZ-360
360
28*3*2.7
25.11
30.9
145
JCWSZ-400
400
31*3*2.7
27.24
30.9
159
JCWSZ-500
500
39*3*2.7
33.71
30.9
193
Applications
Hotels, restaurants, nursing homes, hospitals; Residential areas, villages and market towns; Station, airport, seaport, ships; Plants, mines, troops, tourist spots, scenic spots; Various industrial organic wastewater similar to domestic sewage.

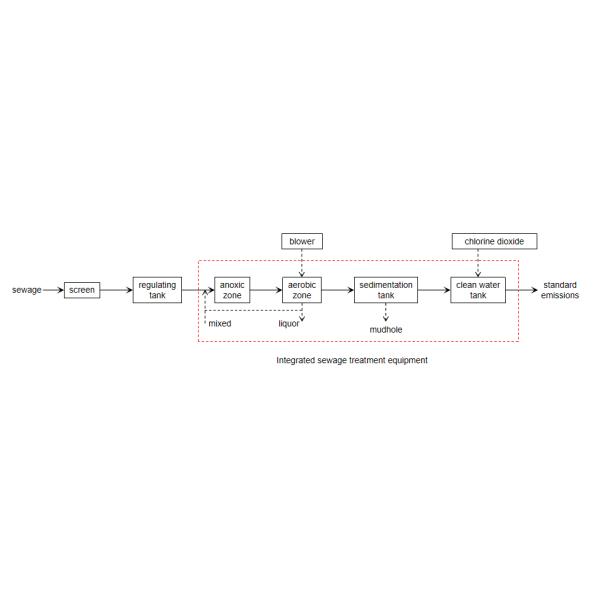

Product process principle
Advanced MBR Machine System for 100L/Hour Sewage Water Treatment Professional Plant
Process principle
1. The sewage first enters the sewage treatment system through the grille, which removes the large particles of solid objects in the sewage. The grid gap is 5mm to ensure the stable operation of the subsequent treatment device. Sewage removes the solid particles and flows into the regulating tank. 2. Sewage enters the regulating tank to fully adjust the water quantity and water quality of sewage, and buffer the load impact on the treatment system due to the uneven changes in water quality and water quantity. A submersible sewage pump is set in the regulating tank to pressure and lift the sewage, and the aeration mixing system is set to prevent sewage precipitation. At the same time, it can play a homogeneous role in sewage, and play a certain pre-aeration effect on sewage, to ensure the continuous and stable operation of the subsequent treatment system, and can reduce the treatment load of the subsequent treatment system. 3. Using anoxic zone to control the dissolved oxygen and carbon source, acidify organic pollutants under hypoxic condition, convert the macromolecules and refractory organic pollutants into small molecules and easily degradable pollutants to create favorable conditions for the subsequent aerobic reaction. Meanwhile, turn nitrate nitrogen in sewage into N2 to remove ammonia nitrogen. 4. The aerobic zone is used to control the organic load and dissolved oxygen concentration, so that the organic pollutants in a variety of biological bacteria growing on the filler, and finally converted into carbon dioxide and water, completely oxidized and removed. 5. The inclined tube sedimentation tank was used as the sedimentation tank to efficiently remove the shed biota and some other insoluble substances contained in the effluent water of the contact oxidation tank. 6. The effluent gravity of the sedimentation tank flows into the clear tank, and is discharged to the standard after chlorine dioxide disinfection.
Why Choose Us
Advanced MBR Machine System for 100L/Hour Sewage Water Treatment Professional Plant
1. High degree of automation, enabling unattended and remote monitoring. 2. Each equipment has undergone strict factory inspection, has a low failure rate, and is maintenance-free. 3. Each equipment is equipped with mixed liquid reflux system , which can adjust the reflux volume independently according to changes in water quality. The equipment has high denitrification efficiency and stable operation. 4. The shell is made of carbon steel, stainless steel or FRP(Fiber Reinforced Plastics). The carbon steel material is uesd with epoxy coal tar paint for anti-corrosion. 5. The equipment is equipped with reinforcing ribs, so that its buried depth can reach more than 2 meters. And it can also be used on the ground. 6. There is a water distribution system in each bin of the equipment, so there is no short circuit in water flow. The utilization rate of the tank can reach 89.8%, which is 5%-30% more than that without water distribution system or conventional water distribution. 7. Using a special microporous aeration device, without clogging, the sewage can be fully mixed with biofilm and dissolved oxygen, which can greatly improve the oxygen transmission efficiency and the biochemical activity of microorganisms. 8. The equipment is filled with functional biological affinity combination fillers, which can quickly film, grow microorganisms quickly with high activity, so the effluent quality is good.
FAQ
1.Q：What is the service life of the aerobic zone of the integrated sewage treatment equipment? Does it need to be replaced regularly? A: The sewage treatment equipment aerobic zone required packing is a combined filler, and its material is plastic with corrosion resistance, uniform tensile force, so it is not easy to break during operation, the service life is more than 8 years, beyond the service life needs to replace the new packing. 2.Q: Can you meet my special requirements for the product? A: Yes, we have a professional design team. We can provide foundation drawings upon your request. 3.Q: What problems should be paid attention to in the transportation and storage process of integrated sewage treatment equipment? A: The transportation and storage of integrated sewage treatment equipment should prevent severe impact, falling and rain. The storage environment temperature shall be-10-45℃, the relative humidity is not more than 80%, ventilated and no acid, alkaline or other harmful gases in the warehouse, the storage period shall not exceed 1 year.
4. Q: How to discharge mud from the sewage treatment equipment? A: The sewage treatment equipment adopts contact oxidation process, and the amount of residual sludge produced is less, so according to the height of the mud position of the sedimentation tank, the municipal dung truck regularly sucks and discharges mud.
5.Q: What’s your terms of payments? A: We accept T/T, L/C, Paypal, MoneyGram. T/T is better. 6.Q: How to install the equipment? A: We will provide you with detailed instructions and installation manuals.
