Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Specifications
Condition :
New
Applicable Industries :
Hotels, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Energy & Mining, Food & Beverage Shops, Other
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2024
Warranty of core components :
1 Year
Core Components :
Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC
Place of Origin :
Shandong, China
Brand Name :
Juchuan
Weight :
20-250kg
Size :
different as each model
Power :
0.1-5
Warranty :
1 Year
Productivity :
10-2000L/Hour
Weight (KG) :
50 kg
Product name :
Integrated polymer dosing device
Usage :
Water Treament
Function :
auto polymer preparation
Advantage :
24 Hours Automatic Running
Control mode :
Full automatic control
Material :
UPVC/CPVC/PVDF
Inspection report :
Provided
Certification :
ISO9001
After-sales service mode :
Video technical support/ online instruction
Packing :
Wooden case
Price :
$9,800.00/sets 1-9 sets
Description
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4

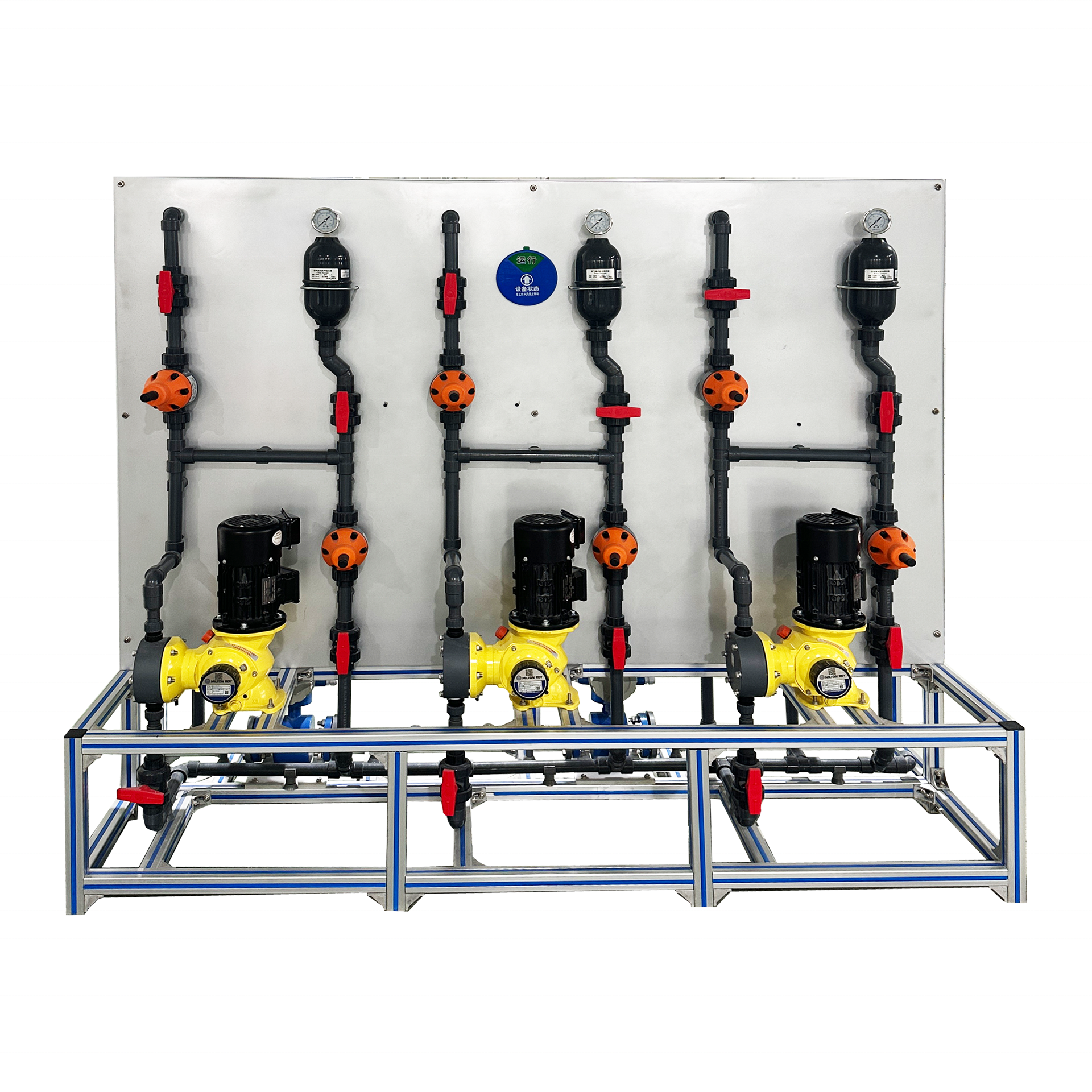

Integrated Polymer Dosing Device

The integrated polymer dosing device adopts the form of electromechanical integration structure, which can be divided into fixed and mobile (trolley type) in terms of installation, and each form of dosing device is equipped with a stirring system, dosing system and automatic control system. The integrated dosing device is a utility new device specially designed by our company for optimizing water treatment system, which can realize local control, remote automatic control, manual and automatic conversion dosing. It is used for dissolving and adding of polyacrylamide (PAM), polyaluminum chloride (PAC), potassium permanganate (KMnO4), sodium acetate, ferric chloride and other solid/liquid agents.
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
(1) It has stable performance, low energy consumption, compact structure, beautiful appearance, small footprint and wide application range.
(2) Automatic operation, easy operation, simple maintenance, constant dosage, easy to adjust the dosage.
(3) Modular design of product structure, integrated combination, easy function expansion.
(4) The control system adopts imported devices of high quality brands, and the operation is safe and stable.
(5) Can be flexibly configured according to different water quality and different requirements of users.
(6) A variety of brands, materials, and grades of devices and components at home and abroad are available for users to choose.
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Types
Productivity (L/h)
Mixing tank volume (m3)
Add pipe calibers (mm)
Power (kW)
Dimension L*W*H (m)
Weight (kg)
Number of pumps (set)
JCJ/YT-10L
10
0.5
15
0.1
0.7*0.3*1.3
20
2
JCJ/YT-50L
100
1
15
0.5
1.0*0.4*1.68
50
2
JCJ/YT-100L
100
3
20
1.0
1.0*0.4*1.68
110
2
JCJ/YT-500L
500
5
25
1.5
1.5*0.5*1.7
180
2
JCJ/YT-1000L
1000
10
32
3.0
1.8*0.6*1.8
200
2
JCJ/YT-2000L
2000
20
32
3.0
1.5*0.6*1.8
250
2
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Used in chemical, industrial, medical, municipal water supply, swimming pool, water plants, sewage treatment, industrial circulating water, industrial wastewater treatment, etc.
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Process principle
The integrated dosing equipment adopts the process of solution dosing. After adding a certain proportion of liquid concentration to the storage tank, through the flow signal collection and under the automatic control of PLC, the solution is automatically measured by the precise metering system and transported to the processing system, and then through the mixing reaction to meet the processing requirements.
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
Water Treatment Made Easy Integrated Automatic Chemical Dosing Machine with PAC KMnO4
1.Q：Are you trading company or manufacturer? A: We are original equipment manufacturer, owning our own factory. 2.Q: Can you meet my special requirements for the product? A: Yes, we have a professional design team. We can provide foundation drawings upon your request. 3.Q: How do I find the suitable model? A: Please provide the agent type, preparation concentration and dosage, or click the“Contact” icon directly with us. We can help you choose the model.
4. Q: What is your production capacity? A: Our factory covers an area of more than 10000m² and produces 100 machines per month..
5.Q: What’s your terms of payments? A: We accept T/T, L/C, Paypal, MoneyGram. T/T is better. 6.Q: How to install the equipment? A: We will provide you with detailed instructions and installation manuals. If necessary, we can send technicians to help you.
