Specifications
Place of Origin :
Shandong, China
Brand Name :
Juchuan
Communication interface :
TCP RJ45
Product name :
PLC Control Panel for Flocculation Precipitation
Type :
PLC HMI Control Panel
Box/Cabinet Protection Grade :
IP55
Quality :
100% Tested Workable
Warranty :
1 Year
Function :
Overload Protection, Failure Shutdown
Size :
220*80*60cm
MOQ :
1 Piece
Application :
INDUSTRIAL AUTOMATION
Package :
Standard Export Wooden Box with Pallet
Port :
Qingdao Port
Price :
$3,500.00 - $7,800.00/pieces
Description
Product Description
Product Name
PLC Control Panel for Flocculation Precipitation
Brand
Juchuan
Model Number
JCK-002
Origin
Qingdao, China
Type
PLC HMI Control Cabinet/Panel
MOQ
1 Piece
Function
Start Stop, monitoring
Shell Protection Grade
IP55
Application
Water Treatment Industry, other industrial scenarios
Shell Material
Q235 Steel Plate/304 Stainless Steel Plate
Feature
Overload Protection, Failure Shutdown
Size
220*80*60cm, customized
Voltage
AC220V
Color
RAL7035 White
Current
20A
Transport Package
Standard Export Wooden Box with Pallet
Output Frequency
50Hz
Warranty
12 months
TCP RJ45 Communication Interface Flocculation Precipitation Industrial Control Cabinet

  • PLC Control Panel for Flocculation Precipitation

The PLC Control Panel is used to monitor and control the sewage discharge process in the flocculation and sedimentation tank, including sludge discharge valves, sludge pumps and other equipment, to achieve precise control and intelligent management of the flocculation and sedimentation process, ensuring the stable operation and efficient treatment of the flocculation and sedimentation process.
Multiple Pump Working Modes: The panel supports the configuration of various pump working modes, allowing for the operation of up to five pumps (1 frequency + 4 frequency). Pressure Measurement Anti-shake Compensation Control: Equipped with a pressure measurement anti-shake compensation control function, ensuring accurate pressure readings and stable operation. Password Lock and Protection: Parameter adjustment and setting are secured with password lock and protection functions, enhancing security and preventing unauthorized access. Analog Output Control: The D/A transmission control frequency voltage ranges from DC 0-10V and can be set to current DC 4-20mA, providing flexibility in control options. Pressure Sensor Compensation: Includes a pressure sensor zero point and full-scale compensation function, ensuring precise pressure measurements and control. Timing Automatic Pump Priming: Features a timing automatic pump priming function, facilitating efficient pump operation and system performance. Automatic Water Shortage Detection and Protection: Incorporates an automatic water shortage detection and protection function, as well as an external input shutdown protection function, ensuring system safety and reliability. Control of Small Attached Pump: Capable of controlling small pumps attached to the water supply, with options to set the frequency conversion or power frequency mode for optimal operation.

TCP RJ45 Communication Interface Flocculation Precipitation Industrial Control Cabinet
TCP RJ45 Communication Interface Flocculation Precipitation Industrial Control Cabinet
TCP RJ45 Communication Interface Flocculation Precipitation Industrial Control Cabinet
Details Images
Box/Cabinet: Rittal 2200*800* 600(H*W*D) Series PLC: Siemens S7-1200/1500 Series Circuit Breaker: Schneider Electric IC65N Series Relay: Honeywell CR Series Switching Power Supply: Siemens PSU Series Host Computer: Advantech Industrial Computer IPC-610L Monitor: DELL 24 Inches Operating System: Windows 10 Professional SCADA: WellinTech King SCADA
TCP RJ45 Communication Interface Flocculation Precipitation Industrial Control Cabinet
TCP RJ45 Communication Interface Flocculation Precipitation Industrial Control Cabinet
TCP RJ45 Communication Interface Flocculation Precipitation Industrial Control Cabinet
Schneider contactor

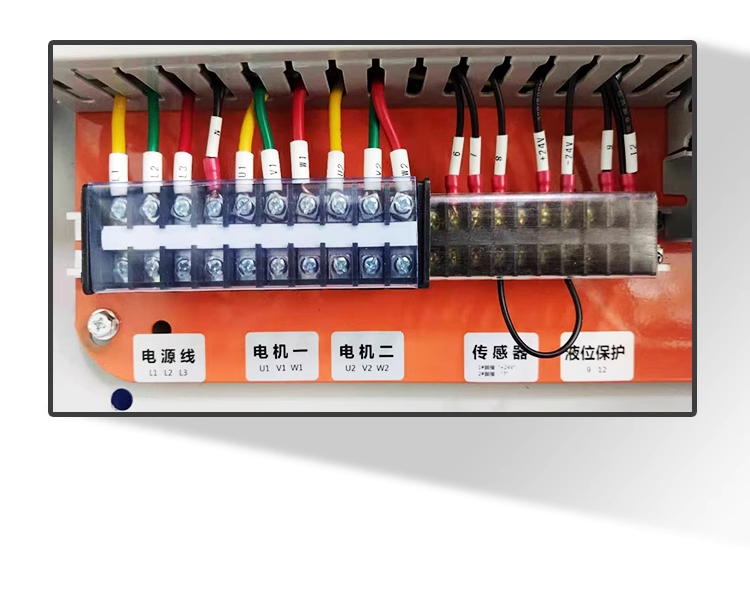

Precise routing and clear wiring

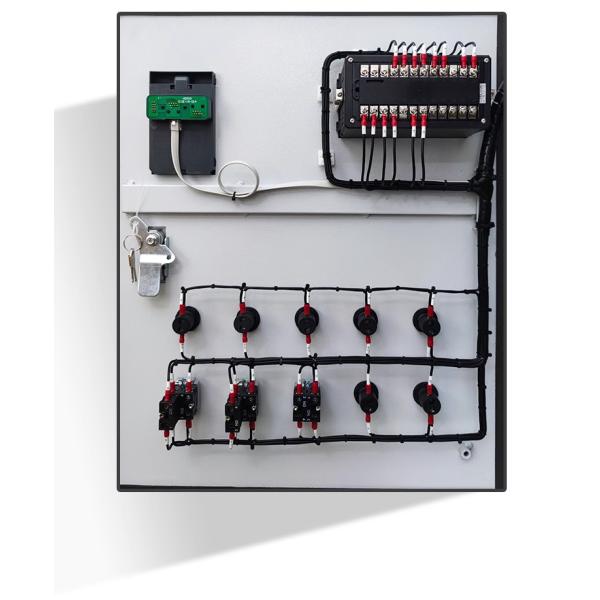

Cabinet doors neatly wiring
Related Products
TCP RJ45 Communication Interface Flocculation Precipitation Industrial Control Cabinet
PLC Control Panel for Raw Water Pumping Station
TCP RJ45 Communication Interface Flocculation Precipitation Industrial Control Cabinet
VFD PLC Constant Pressure Water Supply Control Panel
TCP RJ45 Communication Interface Flocculation Precipitation Industrial Control Cabinet
PLC Control Panel for V-type filter
Product Performance

Intelligent Control

According to the preset program and logic conditions, automatically control the opening and closing of the sludge discharge valve, adjust the opening of the valve and other parameters to achieve the best flocculation and sedimentation effect.

HMI

Equipped with an intuitive and friendly operation interface, including an HMI and operation buttons for convenient parameter setting, operation monitoring and fault diagnosis.

Remote Monitoring and Control

You can monitor the system operating status in real time through network connection or wireless communication, and remotely adjust parameters and control equipment operation to achieve remote intelligent management.

Easy installation and maintenance

The control panel equipped with a detailed installation and maintenance manual to ensure easily install, operate and maintain the control panel, which can reduce operating costs.

Quality assurance

Stable cooperation with high-quality component industry giants, all components in the cabinet use regular manufacturer brands.

Widely Used

It is used in many fields, such as water works, treatment of domestic sewage, industrial wastewater treatment, etc.
Company Introduction
Qingdao Juchuan Environmental Protection Technology Co., Ltd., established in 2008, covering an area of 13250 square meters. We are a high-tech enterprise engaged in the research, development, design, manufacturing, sales, installation and after-sales service of chlorine dioxide generator, polymer dosing device, water plant control cabinet, sewage plant deodorization equipment, containerized water treatment plant, etc. Products are widely used in tap water, secondary water supply, swimming pool water and food processing water disinfection treatment, industrial, municipal, chemical, medical and hospital wastewater treatment.
TCP RJ45 Communication Interface Flocculation Precipitation Industrial Control Cabinet
TCP RJ45 Communication Interface Flocculation Precipitation Industrial Control Cabinet
TCP RJ45 Communication Interface Flocculation Precipitation Industrial Control Cabinet

Welcom to Juchuan!

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Striving hard to improve the quality of human life is the mission of Juchuan. We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together.
FAQ
1. What type of flocculation precipitation tank is the panel suitable for? Our PLC control panel is suitable for all types and sizes of tanks, whether in waterworks, municipal wastewater treatment plants, industrial wastewater treatment plants or other flocculation valve control processes. 2. What are the main functions of the control panel? Our PLC control panel has the functions of sludge discharge control, real-time monitoring and alarm of liquid level, so as to realize the intelligent control of flocculation precipitation process. 3. Dose the panel support multiple process modes? Yes, our control panel support a variety of process modes, including conventional flocculation sedimentation mode, fast flocculation mode, slow flocculation mode, and can be flexibly switched according to different water quality and treatment requirements. 4. What is the installation and commissioning process of the control panel? We provide detailed installation and commissioning instructions, as well as on-site technical support to ensure that the control panel can be installed and operated smoothly. 5. Do you provide technical support and after-sales service? Yes, we provide comprehensive technical support and after-sales service, including installation and commissioning, training, maintenance and remote support, etc., to ensure that customers can get a satisfactory service experience. 6. What should be pay attention to when maintaining and maintaining the control panel? We provide detailed maintenance and maintenance guidelines, including regular cleaning, lubrication, checking electrical connections, etc., to ensure the stable operation and extended service life of the control panel. 7. How much does the control panel cost? The price of the control panel varies depending on the model, configuration, and customization requirements. We offer specific quotes and customized programs tailored to meet the needs and budgets of our customers. 8. What about reliability and durability? Our control panel is equipped with industry-leading components, ensuring excellent reliability and durability. It can run stably for extended periods, guaranteeing the safety and reliability of the entire system.
