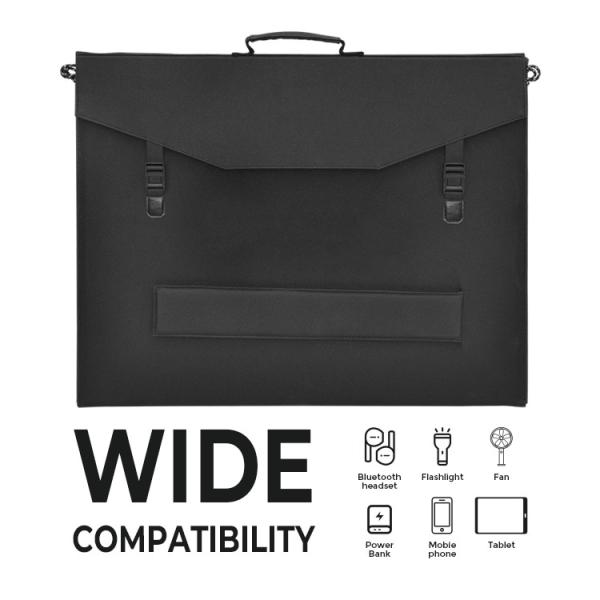

Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Specifications
Brand Name :
JTN
Model Number :
JTN-A13
Place of Origin :
Guangdong, China
Packaging Details :
High efficiency mono pannelli fotovoltaici portatili folding pannello solare portatile 200w
Supply Ability :
50000 Piece/Pieces per Month
MOQ :
20 pieces
Price :
$147.50/pieces 20-199 pieces
Cell size :
156.75mmx156.75mm
Panel Efficiency :
22.5%-24%
Product name :
200w Foldable solar panel
Waterproof :
IP65
Support :
OEM/ODM
Solar cell :
MONO
Surface material :
PET/ETFE
Size(mm) :
510*640*60
USB Output :
5V 3.4A / 9V 2.5A / 12V 2A Max
Type-C Output :
5V 3.4A / 9V 2.5A / 12V 2A / 15V 3A Max
Net Weight :
6.5KG
Certificate :
CE/FCC/PSE/ROHS, FCC/CE/ROHS/PSE/BSCI
Type :
PERC, Foldable
Size :
510*640*55mm( folded)
Warranty :
1 year
Port :
Shenzhen
Description
High efficiency mono pannelli fotovoltaici portatili folding pannello solare portatile 200w
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Products Description
Model
JTN-A9
JTN-A10
JTN-A11
JTN-A12
JTN-A13
Maximum Power(Pmax/W)
100
100
120
140
200
Cell Type
mono
mono
mono
mono
mono
Cell Efficiency
18.5-22.5%
18.5-22.5%
23%
23%
18.5-22.5%
Open-circuit Voltage (Voc/V)
21.6
21.6
21.6
21.6
21.6
Short-circuit Current (Isc/A)
6.11
6.11
7.33
8.56
12.22
Maximum Power Voltage(Vmp/V)
18
18
18
18
18
Maximum Power Current (Imp/A)
5.56
5.56
6.67
7.78
11.11
Power Tolerance(W)
0~+5W
Standard Test Environment
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
Product
Surface Process
PET
Folding Number
2
4
4
4
4
USB Port(5V)
Port* 2
Port* 2
/
/
Port* 2
Type-C(5V)
Port* 1
Port* 1
/
/
Port* 1
DC
/
Port* 1
/
/
Port* 1
MC4
Port* 1
Port* 1
Port* 1
Port* 1
Port* 1
Anderson
/
/
/
/
/
Dimension (unfolded)
1188*636*30mm
1610*523*30mm
1548*533*25mm
1700*635*30mm
2220*635*30mm
Dimension (folded)
636*510*40mm
523*360*50mm
533*417*55mm
635*360*55mm
635*510*55mm
Net weight(KG)
0.55
0.71
0.74
0.95
1.2
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Mono Foldable Solar Panel Solar Energy Portable Charger 200W Type-C Output 9V
Q :Are you manufacturer or trading company?
A : We are manufacturer with more than 10 years experience and can control the production of goods quality and delivery time.
Q : What kind of certificates your products have?
A : CE,FCC,RoHS,PSE,MSDS

Q : What's your products MOQ?
A : No MOQ request.If you need do OEM&ODM, We provide you small MOQ for each item, it depends your specific order!

Q : How about your delivery time?
A : Generally,our stock products would be shipped in 1-3 days after payment received. finally depends on order quantities.

Q : What's your warranty?
A : All our products will be 100% test before shipment. Warranty 2 years.

Q : What is the payment method?
A: We accept payment by T/T, Credit card, Alibaba platform, Western Union and etc.
