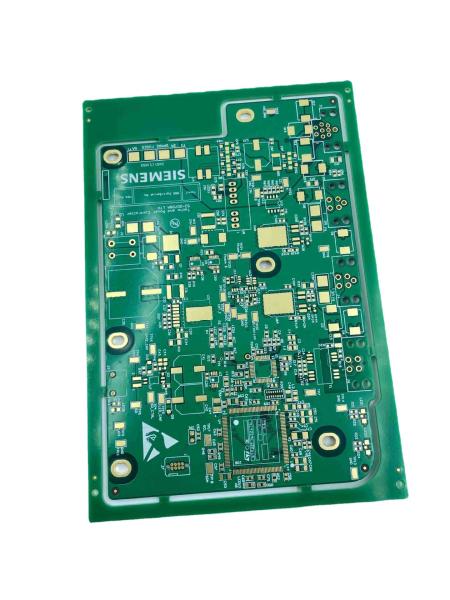

Rogers 4350 Plate Signal Board 2 Layer Circuit Board Immersion Gold
Rogers 4350 Plate Signal Board 2 Layer Circuit Board Immersion Gold
Specifications
Brand Name :
JIETENG
Model Number :
Rogers 4350
Certification :
ISO/TS16949/RoHS/TS16949
Place of Origin :
china
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
150000 square meters / year
Delivery Time :
5-8 working days
Packaging Details :
Blank carton vacuum packing
Copper thickness :
1OZ
Min. line spacing :
0.1mm
Board thickness :
1.6mm
Service :
ODM and OEM
Solder mask :
Green
Benefits :
High TG industrial standard material shows excellent thermal reliability
Description

Rogers 4350 plate signal board 2-layer immersion gold circuit board

Features and benefits
1. High TG industrial standard material shows excellent thermal reliability;
2. Immersion gold ensure excellent wetting during component soldering and avoid copper corrosion;
3. In house, engineering design prevents problems from occurring in pre-production;
4. ISO9001, ISO14001, IATF16949, ISO13485, UL Certified;
5. Customer complaint rate: <1%
6. Delivery on time: >98%
7. Prototype PCB capability to Volume Production capability;
8. Multilayer and Any Layer HDI PCBs;
9. More than 14+ years of PCB experience.

Company Capability
Layers 1-40 layers
Copper Thickness 0.5-6 OZ
Material FR4(Shengyi China,ITEQ,KB A+,HZ),HI-TG, FR06,Rogers, Taconic,Argon,
Nalco,Isola and so on
Solder Mask green, yellow,white, blue,black,red
Finished Surface conventional hasl, lead free hasl, immersion gold, immersion tin,immersion silver, hard gold, OSP...
Silkscreen color white,black
Minimum line width/gap 3.5/4mil(laser drill)
Minimum hole size 0.15mm(mechanical drill)/4mil(laser drill)
Minimum Annlar Ring 4mil
Max Copper thickness 6OZ
Min Solder Mask Bridge 0.08mm
Plugging Vias capability 0.2-0.8mm

Shenzhen Jieteng Circuit specializes in manufacturing circuit boards and has its own R&D team. Has been focusing on the production and manufacture of high-precision circuit boards
