Composition
Composed of two components: emulsion and color paste. The main resin system consists of epoxy resin, isocyanate crosslinking agent, and toughening agent, neutralized with acid to form the emulsion. The dispersion resin is based on epoxy resin, and the color paste is made by grinding pigments and fillers.

Features

• Application Performance: Excellent anti-sticking properties; outstanding anti-settling performance of the bath.
• Coating Performance: Superior coating appearance and mechanical properties.
• Environmentally Friendly: A water-based paint free of lead and other heavy metals, environmentally safe.

Applications

• Widely used in electrophoretic applications where anti-sticking of the coating is required, such as for screws, small hardware, umbrellas, and various steel components requiring corrosion protection.

Technical Specifications

Raw Paint Specifications

Bath Parameters

Film Performance Indicators

*Salt Spray Resistance: Using Bonderite standard phosphated steel panel, unidirectional corrosion ≤ 2 mm*

Bath Preparation
Color paste : Emulsion : Deionized water = 1:3:4 (by weight). Add appropriate additives and neutralizing agents to adjust the parameters. Let the mixture age for 48 hours, then filter and apply.

Application Process

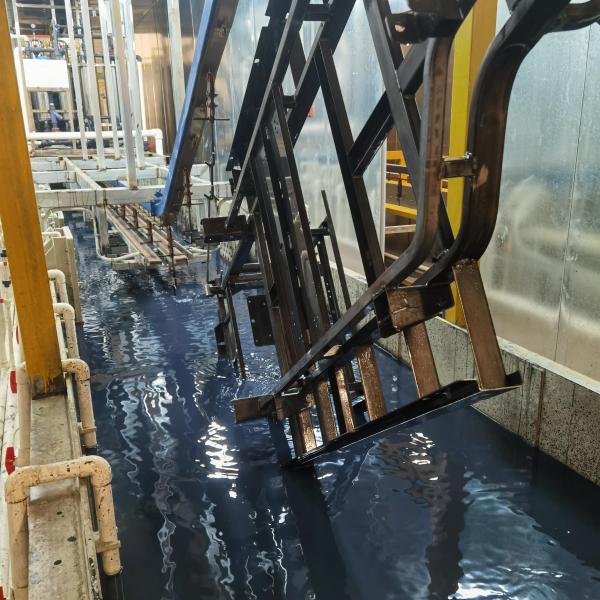

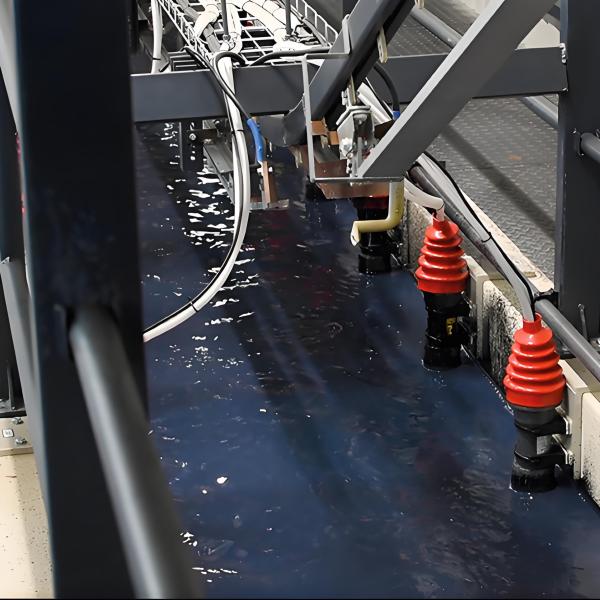

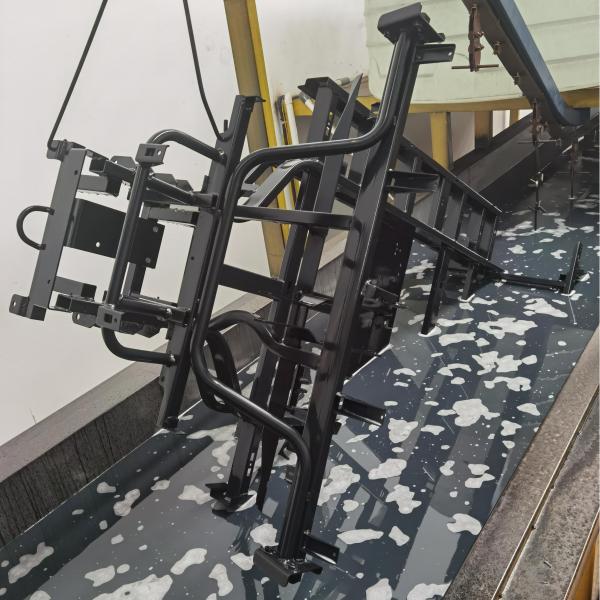

Pre-degreasing → Degreasing → Water Rinse → Surface Conditioning → Phosphating → Water Rinse → Pure Water Rinse → Electrophoresis → Post-rinse → Drying (Also suitable for silane or ceramic pretreatment processes)

Packaging and Storage

• Packaging
  Emulsion: 50 kg/barrel, 200 kg/barrel, 1000-liter plastic IBC barrel (1000 kg/barrel)
  Color paste: 50 kg/barrel, 65 kg/barrel
• Storage Conditions
  Store sealed in a cool, dry place at 5–35°C
• Shelf Life
  Emulsion: 6 months
  Color paste: 6 months (If past the shelf life, the product can still be used if it passes quality inspection based on relevant standards.)

Safety and Hygiene Regulations

• This product is not listed in the "GB6944 Classification and Code of Dangerous Goods."
• Ensure proper ventilation during application.
• Avoid contact with eyes or ingestion.
