Spiral UF Membrane for Electrocoating Process
Spiral UF Membrane for Electrocoating Process
Spiral UF Membrane for Electrocoating Process
Spiral UF Membrane for Electrocoating Process
Spiral UF Membrane for Electrocoating Process
Spiral UF Membrane for Electrocoating Process
Specifications
Brand Name :
Jingtu
Place of Origin :
China
Cross Replacement Refer :
Koch 8638 M-183-Vpp
Feed :
246-303 Lpm
Recommended Inlet Pressure :
3-4bar
Recommended Outlet Pressure :
1-2.7bar
Permeate Flux :
10.6-17 Lpm
Element Od :
8.63"
Description

Product Overview

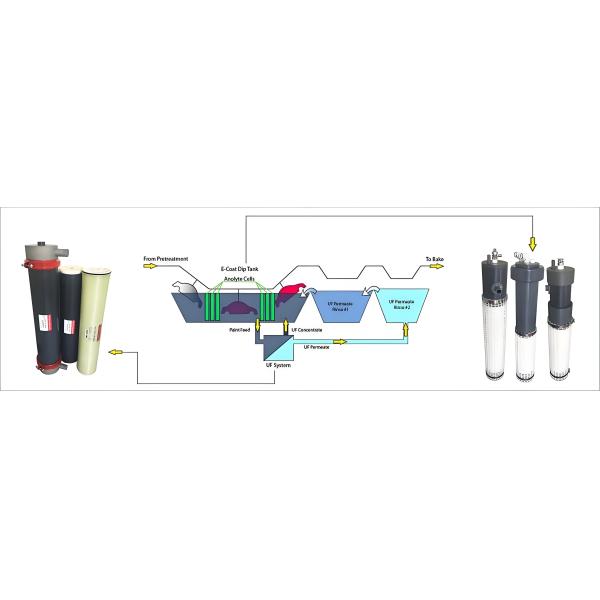

We provide a complete range of ultrafiltration (UF) membranes specifically designed for the electrocoating (e-coat) industry. Our spiral-wound UF membranes are recognized as an industry standard and are widely used in automotive, home appliance, metal furniture, and jewelry manufacturing sectors. Whether for cathodic or anodic paint baths, we offer neutral and positively charged EDUF membranes to ensure optimal paint recovery and consistent performance.

Spiral UF Membrane for Electrocoating Process

Product Features

  • Membrane Material: High-quality Polyvinylidene Fluoride (PVDF), with options for positively charged membranes.
  • Configuration: Spiral-wound structure with an integrated PVC cage for superior mechanical strength and easy handling.
  • Wide Compatibility: Suitable for both anodic and cathodic e-coating systems, delivering excellent separation performance and chemical resistance.
  • Reliable Performance: Proven success in global automotive paint systems, offering consistent paint recovery and extended membrane lifespan.

Material Construction

  • Membrane Layer: PVDF
  • Backing Material: Polyester
  • Permeate Tube: UPVC (Unplasticized Polyvinyl Chloride)
  • Seal Carrier: ABS Plastic
  • Brine Seal: EPDM

Product Parameter

Configuration Application Outer Wrap

Membrane

Type

Membrane

Material

 Size
Spiral E-coat s=sanitary net Ultrafitration

F=PVDF

N=PAN

 4.0"×20"
g=glass fiber 4.0"×40"
f=flance 5.6"×40"
p=PVC housing integrated 7.6"×40"
8.0"×40"

Operating Conditions

  • Maximum Inlet Pressure: 65 psi (4.4 bar)
  • Recommended Inlet Pressure: 44–60 psi (3.0–4.1 bar)
  • Recommended Outlet Pressure: 15–40 psi (1.0–2.7 bar)
  • Maximum Operating Temperature: 122°F (50°C)
  • Allowable pH Range (Continuous Operation): 2.0–10.0
  • Allowable pH Range (Short-Term Cleaning): 2.0–11.5 at 50°C for 30 minutes

Applications

  • Automotive E-Coat Paint Recovery
  • Home Appliance Surface Finishing
  • Metal Furniture Coating Lines
  • Jewelry and Precision Component Finishing

Spiral UF Membrane for Electrocoating Process
