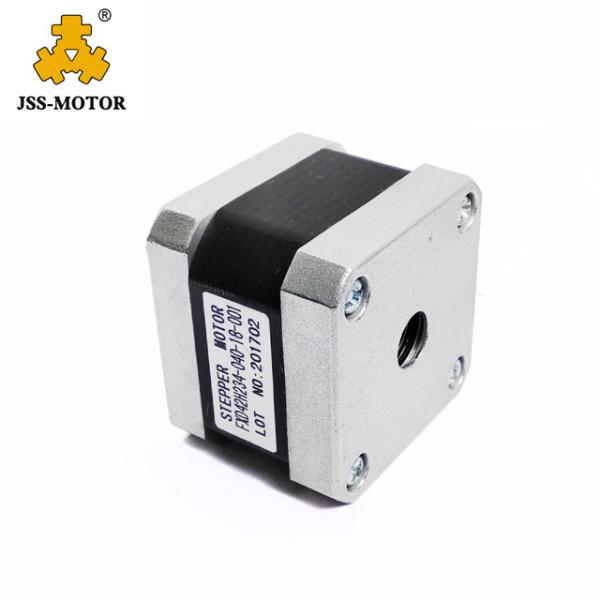

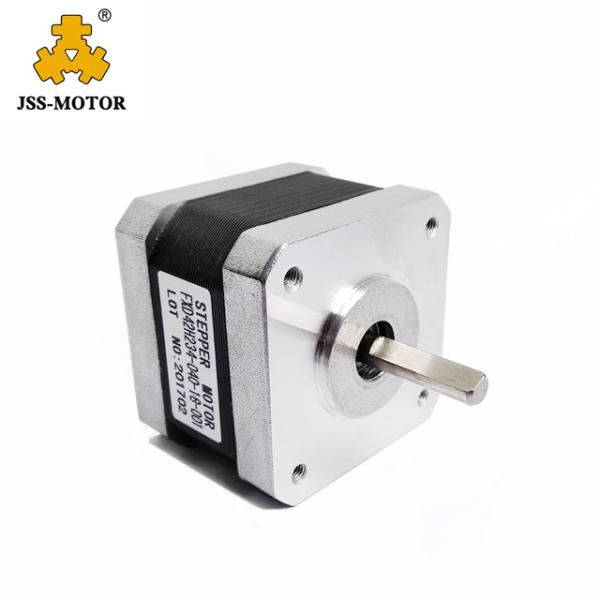

42HS40-1704 replicator 2/2x nema 17 hybrid stepper motor 1.8 58ozin 40mm 42mm
42HS40-1704 replicator 2/2x nema 17 hybrid stepper motor 1.8 58ozin 40mm 42mm
42HS40-1704 replicator 2/2x nema 17 hybrid stepper motor 1.8 58ozin 40mm 42mm
42HS40-1704 replicator 2/2x nema 17 hybrid stepper motor 1.8 58ozin 40mm 42mm
42HS40-1704 replicator 2/2x nema 17 hybrid stepper motor 1.8 58ozin 40mm 42mm
42HS40-1704 replicator 2/2x nema 17 hybrid stepper motor 1.8 58ozin 40mm 42mm
Specifications
Brand Name :
JSS
Model Number :
42HS40-1704
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1 pcs
Price :
USD 5-7 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 pcs month
Delivery Time :
12 days
Packaging Details :
Carton
Flange :
42*42mm
Holding torque :
5.2kG.CM
Current :
1.7A
Length :
40mm
Shaft diameter :
5MM
Shaft length :
customized
Colour :
black
Product name :
step motor
ODM :
support
application :
3D printer
Key words :
hybrid stepper motor
Description

3D printer Nema 17 Stepper motor 42HS40-1704 Motor

our main products:

hybrid stepper motor

Brushless DC motor

planetary gearbox

AC servo motor

Spindle motor

Linear guide

Ball screw

General specifiation

Step Angle 1.8°
Temperature Rise 80℃ Max
Ambient Temperature -20℃ Max∼+50℃
Insulation Resistance 100M ΩMin.,500VDC
Dielectric Strength 500VAC for 1 minute
Shaft Radial Play 0.02Max (450g-load)
Shaft Axial Play 0.08Max (450g-load)
Max. Radial Force 28N (20mm from the flange)
Max. Asial Force 10N

Electrical Specification:

Model No Step Angle() Rated Voltage(V) Rated Current (A) Phase Resistance() Phase Inductance (mH) Holding Torque (Kg.cm) Detent Torque(g.cm Max) Rotor Inertia (g.cm) Motor Length (mm) Leads No. Motor Weight(Kg)
42HS40-0404 1.8 12 0.4 30 60 4.2 220 54 40 4 0.28
42HS40-0804 1.8 5.4 0.8 6.8 12 4.5 220 54 40 4 0.28
42HS40-1204 1.8 6.6 1.2 5.5 11 5.2 220 54 40 4 0.28
42HS40-1684 1.8 2.8 1.68 1.68 3.4 4 220 54 40 4 0.28
42HS40-1704 1.8 3.4 1.7 2 3 4 220 54 40 4 0.28
42HS40-1206 1.8 4 1.2 3.3 3.5 2.97 220 54 40 6 0.28

42HS40-1704 replicator 2/2x nema 17 hybrid stepper motor 1.8 58ozin 40mm 42mm

42HS40-1704 replicator 2/2x nema 17 hybrid stepper motor 1.8 58ozin 40mm 42mm

42HS40-1704 replicator 2/2x nema 17 hybrid stepper motor 1.8 58ozin 40mm 42mm
