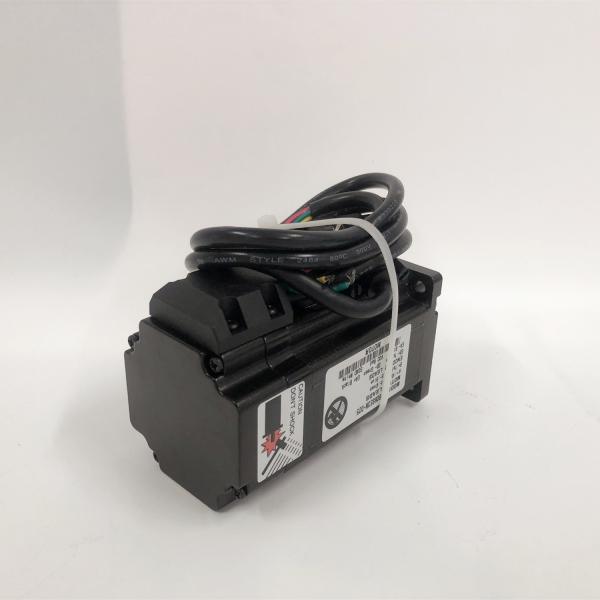

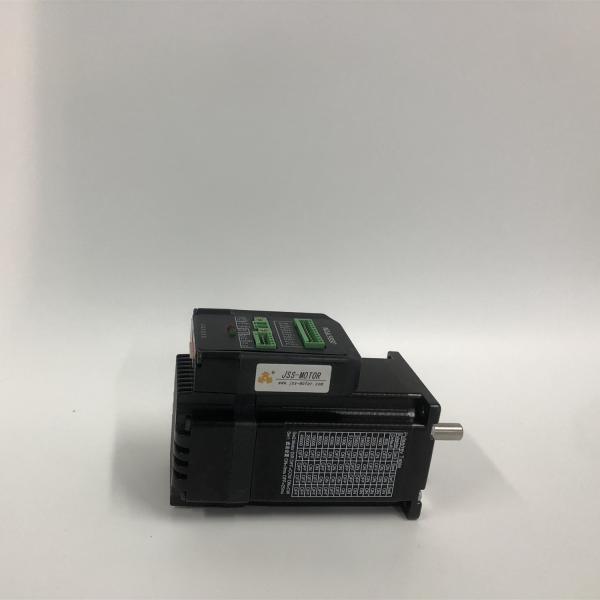

24v 48 Volt Brushless Dc Motor 3000rpm 300w 377w 1.2nm Electrical Car
24v 48 Volt Brushless Dc Motor 3000rpm 300w 377w 1.2nm Electrical Car
24v 48 Volt Brushless Dc Motor 3000rpm 300w 377w 1.2nm Electrical Car
24v 48 Volt Brushless Dc Motor 3000rpm 300w 377w 1.2nm Electrical Car
Specifications
Brand Name :
JSS
Model Number :
JSS80BL120-430
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
800pcs/day
Delivery Time :
15days
Packaging Details :
Cartoon box
Name :
BLDC motor
Rated Voltage :
48VDC
Rated Current :
10.5
Rated power :
377W
Rated torque :
1.2N.M
Peak torque :
3.6N.M
Rated Speed :
3000rpm
Motor Length :
125MM
Motor Weight :
2.5Kg
Color :
Customer-made
Description
Electrical car motor brushless dc motor 48Vdc 3000rpm 1.2N.M
Product Description

General specification:

Item Specification
Widing type Star/Delta
Hall effect angle 120 degree electrice angle
Shaft runout 0.03mm
Radial play 0.03mm/50g
End play 0.03mm/50g
Max radial force 35N/20mm from the flange
Max axial force 30N
Insulation class Class B
IP class IP 40
Dielectric strength 500VDC for one minute
Insulation Resistance 100MΩmin 500VDC

Electrical Specification:

Model Phase No. Rated Voltage (VDC) Rated Speed (RPM)

Rated

Current

(A)

 Rated Torque (N.m) Rated Power (W) Mass (Kg) Body Length (mm)
80BL100-430 3 48 3000 7 0.8 251 1.6 105
80BL120-430 3 48 3000 10.5 1.2 377 2.5 125
80BL145-430 3 48 3000 14 1.6 502 3.0 145

Dimensions:

(Unit=mm)

Electrical Connection:

Lead No. Lead Color Lead Gauge Function Description
1 Red UL3266/28AWG VCC+5VDC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A SIGNAL OF HALL A
4 Green HALL B SIGNAL OF HALL B
5 Blue UL3266/20AWG HALL C SIGNAL OF HALL C
1 Yellow PHASE U MOTOR PHASE U
2 Green PHASE V MOTOR PHASE V
3 Blue PHASE W MOTOR PHASE W

Our Services

Different specification of stepper motor with competitive price for your choice:

Contact me :

WhatsApp: +86 18306110590

Phone: +86 18306110590

Packaging & Shipping

We have standard package for our products. We can also make it as per your special requirement..

Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.

Certifications:
