Industrial CT C Series Hot Air Circulation Drying Oven Designed for Uniform Heating and Drying in Pharmaceutical Food and Chemical Fields
Industrial CT C Series Hot Air Circulation Drying Oven Designed for Uniform Heating and Drying in Pharmaceutical Food and Chemical Fields
Specifications
Delivery Time :
Shipment arranged within 3 working days after payment.
Processing air volume :
300~36000 m³/h
Temperatureaccuracy :
±1°C
Brand Name :
Pengduo
Heating Zones :
Temperature-controlled
Mainframe size :
250×2800 - 1700×6000 mm
Certification :
iso9000，CE
Model :
XYZ-123
Price :
5000-30000$
Cylinder diameter :
200-1600 mm
Safetyfeatures :
Over-temperature protection, automatic power-off
Payment Terms :
L/C,T/T,D/P,western union…
Evaporation water volume :
10~2000 kg/h
Packaging Details :
Wooden Case
Host power :
5~135 kW
Place of Origin :
China
Thermal efficiency :
35%-45%
MOQ :
1 set
Description

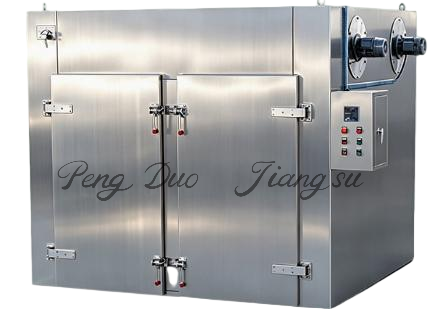

CT-C Series Hot Air Circulation Drying Oven
High Efficiency CT-C Series Hot Air Circulation Drying Oven For Pharmaceutical, Food & Chemical Applications
Product Overview
Industrial CT C Series Hot Air Circulation Drying Oven Designed for Uniform Heating and Drying in Pharmaceutical Food and Chemical Fields
Industrial CT C Series Hot Air Circulation Drying Oven Designed for Uniform Heating and Drying in Pharmaceutical Food and Chemical Fields

CT-C series hot air circulation drying ovens are equipped with low-noise high-temperature resistant axial flow fans and automatic temperature control systems. The fully enclosed circulation system greatly improves thermal efficiency. Multiple heating options including steam, electric power and far infrared are available. The equipment runs smoothly with low noise, featuring convenient installation and maintenance. It is universal drying equipment suitable for heating, curing and dehydration of various materials.


Product Features & Advantages

  • Internal hot air circulation delivers high thermal efficiency and significant energy savings.
  • Adjustable air distribution plates are fitted to ensure uniform drying of materials.
  • Multiple heating options are available, including steam, hot water, electricity and far infrared.
  • Low running noise and stable operation; temperature automatic control supported.
  • Simple installation and convenient daily maintenance, wide application range.

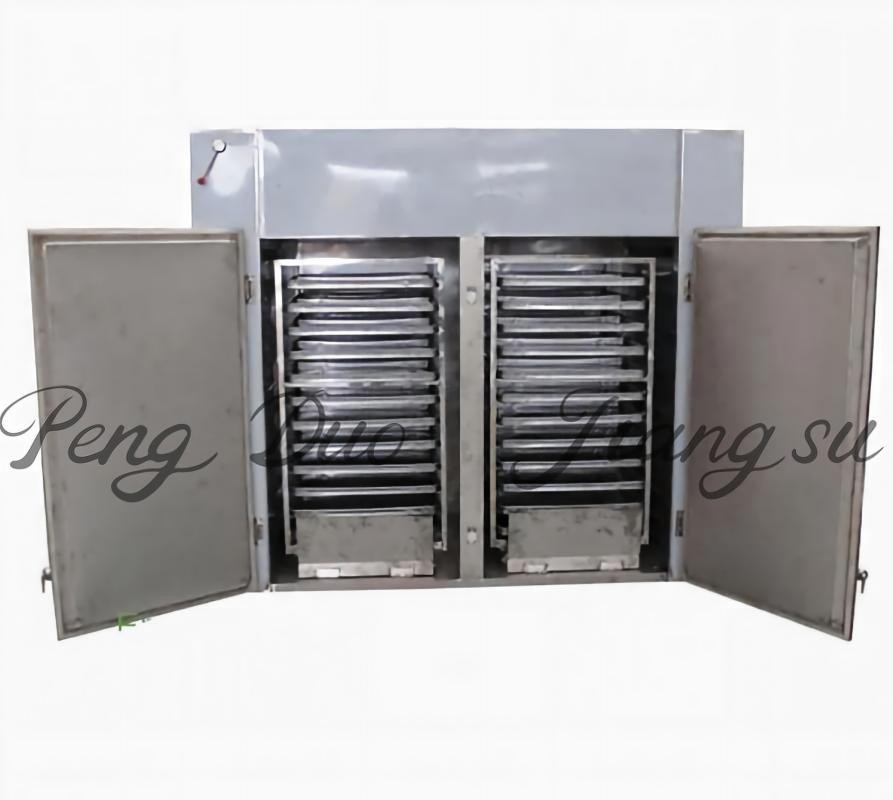

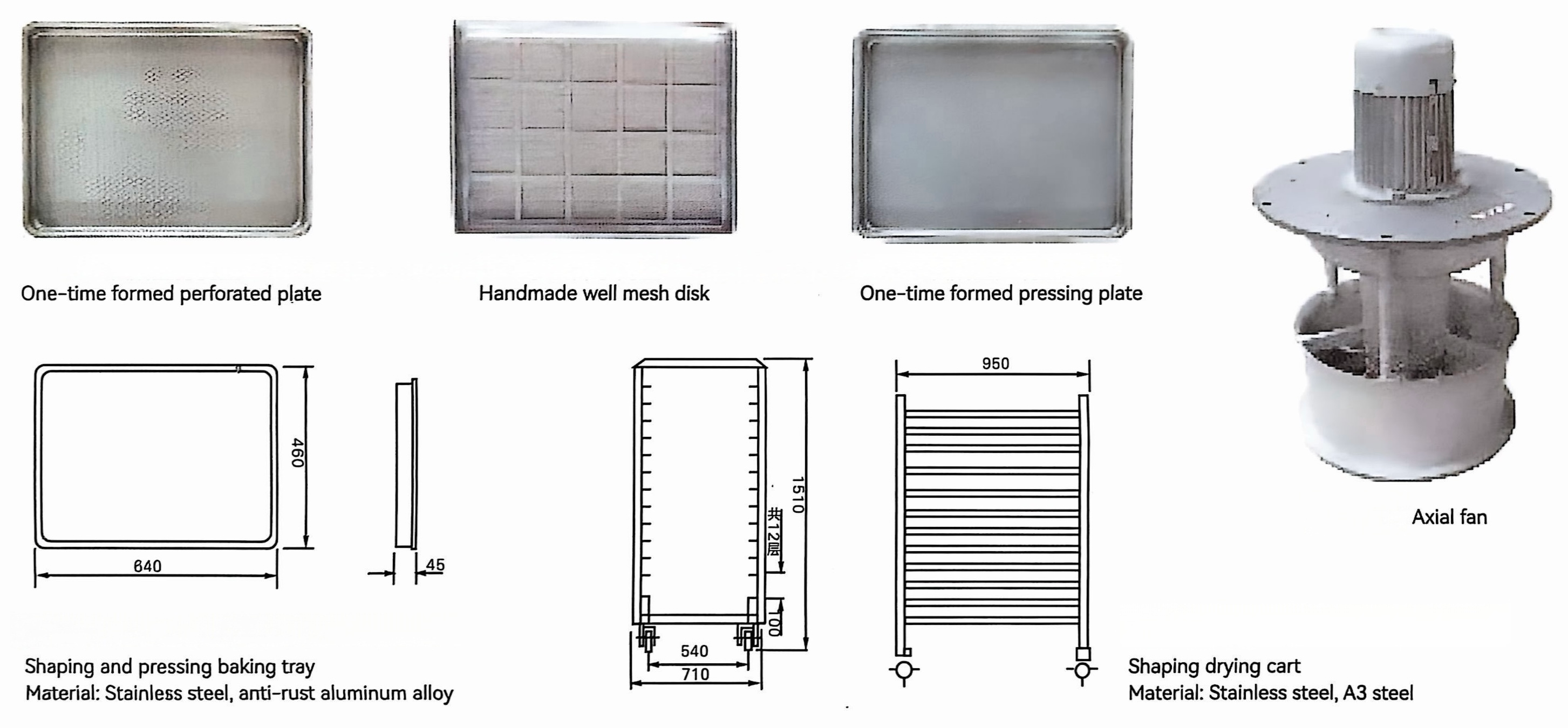

  • Uniform tray size, drying trays and trolleys are interchangeable for flexible usage.
  • Industrial CT C Series Hot Air Circulation Drying Oven Designed for Uniform Heating and Drying in Pharmaceutical Food and Chemical Fields

Technical Parameters
Model of industrial standard
Mode
Dry amount each time (kg)
Equipped power (kW)
Consumption of steam (kg/h)
Area of radiation (m2)
Amount of air (m³/h)
Amount of drying tray to be equipped
Overall dimensions W~D~H(mm)
Equipped drying troley
RXH~7~C
CT~C~0
50
0.55
10
10
3450
24
1600×1200×2000
1
RXH~14~C
CT~C~I
100
0.55
18
20
3450
48
2300×1200×2000
2
RXH~27~C
CT~C~II
200
1.1
36
40
6900
96
2300×2200×2000
4
RXH~41~C
CT~C~III
300
1.65
54
80
10350
144
3300×2200×2000
6
RXH~54~C
CT~C~IV
400
2.2
72
100
13800
192
4460×2200×2000
8
