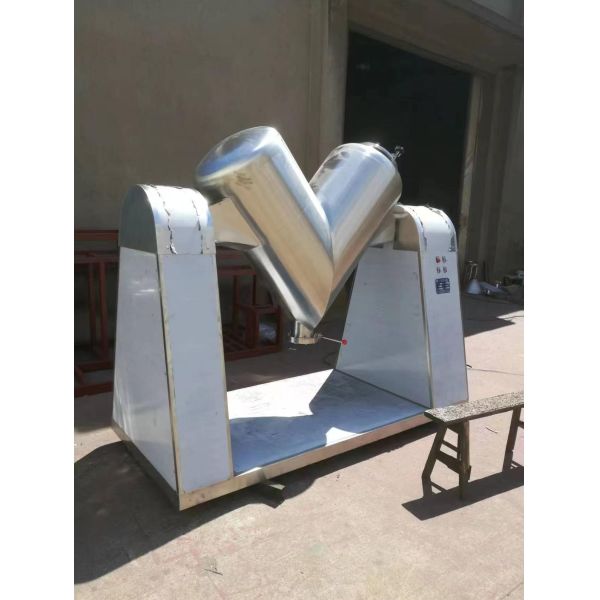

The ZKH(V) Series Mixer is an industry-leading solution designed for the highly uniform mixing of dry powdered or granular materials. Widely utilized in the pharmaceutical, chemical, and food industries, its unique V-shaped geometry ensures gravity-driven blending that is both gentle and incredibly thorough.This machine’s mixing cylinder has a unique structure, featuring high mixing efficiency and no dead corners. It is made of stainless steel with polished inner and outer walls, presenting a beautiful appearance. The mixing is uniform and has a wide range of applications. It can also be equipped with a forced agitator according to the user’s requirements to be suitable for the mixing of fine powder, block, and materials containing a certain amount of moisture.

• High-precision mixing delivers fully homogeneous blends every time.
• Low-shear gravity blending safeguards material texture and composition.
• Its signature V-shaped structure drives complete internal material circulation.
• Ideal for pharmaceutical, chemical, and food industry applications
• Efficient processing of dry powders and granular materials

  Model	V-0.18	V-0.3	V-0.5	V-1.0	V-1.5	V-2.5	V-3.0	V-5.0	V-6.0
  Productive capacity (kg/time)	72	90	150	300	450	800	900	1500	1800
  Model of vacuum pump	W2			W3			W4
  Time of raw material fed in(min)	3-5		4-6	6-9	6-10	8-15	8-12	15-20	18-25
  Mixing time(min)	4-8	6-10					8-12
  Total volume(m3)	0.18	0.3	0.5	1.0	1.5	2.5	3.0	5.0	6.0
  Stiring speed(r/min)	12						10
  Power of motor(kW)	1.1		1.5	3	4	7.5		15	18.5
  Rotating height (mm)	1580	2160	2360	2600	2800	3000	3200	4500	5000
  Weight (kg)	280	320	550	950	1020	2040	2300	3250	3850
