2 Inch 50mm General Pressure Gauge Various Dials
2 Inch 50mm General Pressure Gauge Various Dials
Specifications
Brand Name :
JSHQ
Model Number :
Y-50
Certification :
CE
Place of Origin :
Jiangsu,China
MOQ :
2
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000
Delivery Time :
5-10 Work days
Packaging Details :
Export Cartons Packaging
Product Name :
2 Inch 50mm General Pressure Gauge Various Dials
Type :
General Pressure Gauge
Company :
Hongqi Automatic Control (Jiangsu) Co.,Ltd
Description
  • Product Description


Ordinary pressure gauges are local indicating pressure gauges, displaying the pressure locally without remote transmission, display, or adjustment functions. Pressure gauges include axial pressure gauges and axial pressure gauges with flanges. In industrial process control and technical measurement, ordinary pressure gauges are increasingly widely used due to their high mechanical strength of the elastic sensing element, ease of production, simple installation, and convenient reading.


  • Operating temperature: -40℃～70℃;
  • Vibration resistance: V·H·3 level;
  • Relative humidity: not greater than 90%;
  • Temperature effect: not greater than 0.4%/10℃ (operating temperature deviation 20±5℃);
  • Standard: GB/T1226-2001;


  • Specification
Model Structure Accuracy(％) Measure Range (MPa)

Y-50

 Radial without edge ±2.5

-0.1～0;

-0.1～0.06;

-0.1～0.15;
-0.1～0.3;

-0.1～0.5;

-0.1～0.9
-0.1～1.5;

-0.1～2.4

Y-50T

 Radial with rear edge

Y-50Z

 Axial without edge
Y-50ZQ Axial with front edge
Y-60 Radial without edge
Y-60T Radial without rear edge
Y-60Z Axial without edge
Y-60ZQ Axial without front edge
Y-75 Radial without edge
Y-75T Radial without rear edge
Y-75Z Axial without edge
Y-75ZQ Axial wihtout front edge
Y-100 Radial without edge

±1.6

Y-100T

Radial without rear edge

Y-100Z

Axial wihtout edge

Y-100ZQ

Axial without front edge

Y-150

Radial without edge

0～0.16;

0～0.25;
0～0.4;

0～0.6;

0～1.0;

0～1.6

0～2.5;
0～4.0;

0～6.0;

0～10;

0～16;

0～25;
0～40;

0～60;

0～100
Y-150T Radial without rear edge
Y-150Z Axial without edge
Y-150ZQ Axial without front edge
Remarks Axial structure can be customized with a square or clamp type


  • Thread Type


Nominal diamete Connector Size

D d L d1
mm mm mm mm
50 M14×1.5 14 5
60 M14×1.5 14 5
75 G3/8 14 5
100 M20×1.5 20 6
150 M20×1.5 20 6


  • Dimension


2 Inch 50mm General Pressure Gauge Various Dials

  • Precautions

1) The working pressure should ideally be 1/3 to 2/3 of the full scale, and the maximum operating range should not exceed 3/4 of the full scale.

2) The calibration cycle should generally not exceed six months. For applications involving large fluctuations in the medium being measured, frequent use, high accuracy requirements, or stringent safety requirements, the calibration cycle may be appropriately shortened depending on the specific circumstances.

3) The working environment should be free of corrosive gases.

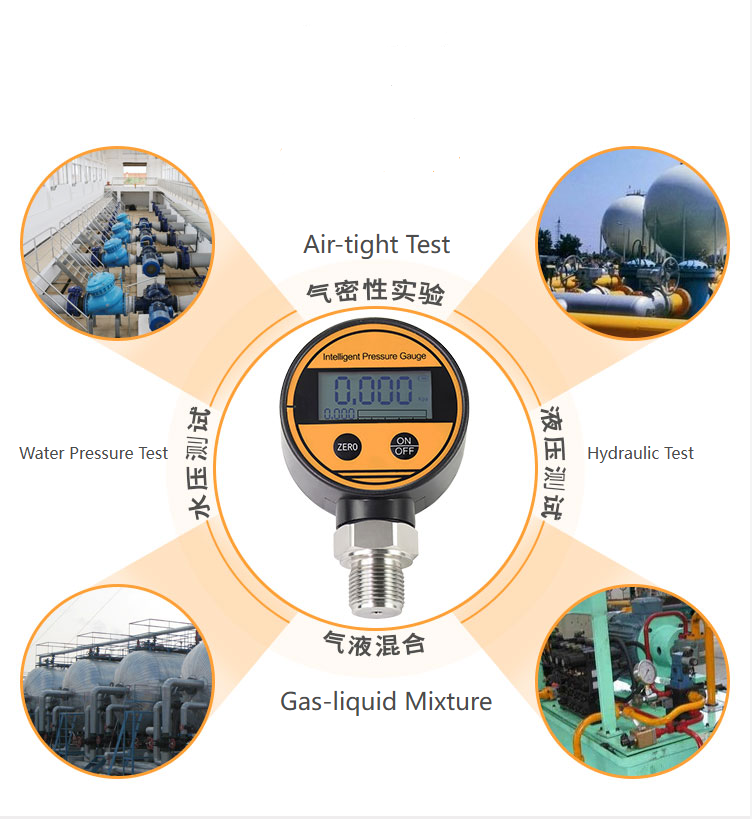

  • Applications

Ordinary pressure gauges are suitable for measuring the pressure and vacuum of liquids, gases, or vapors that are non-explosive, non-crystallizing, non-solidifying, and non-corrosive to copper and copper alloys.
