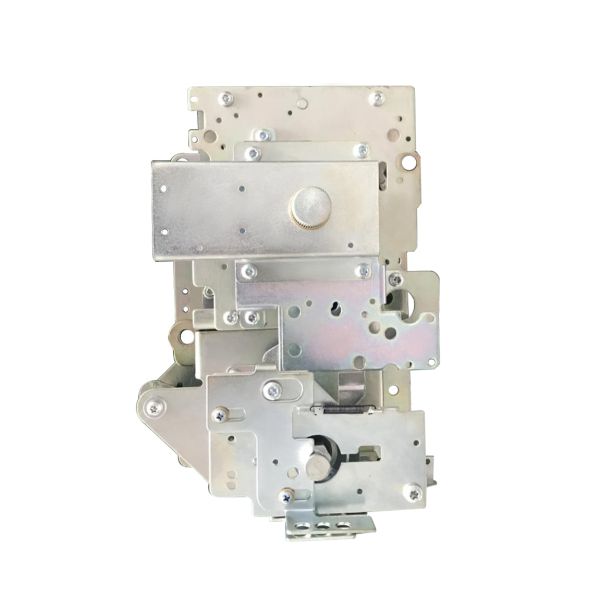

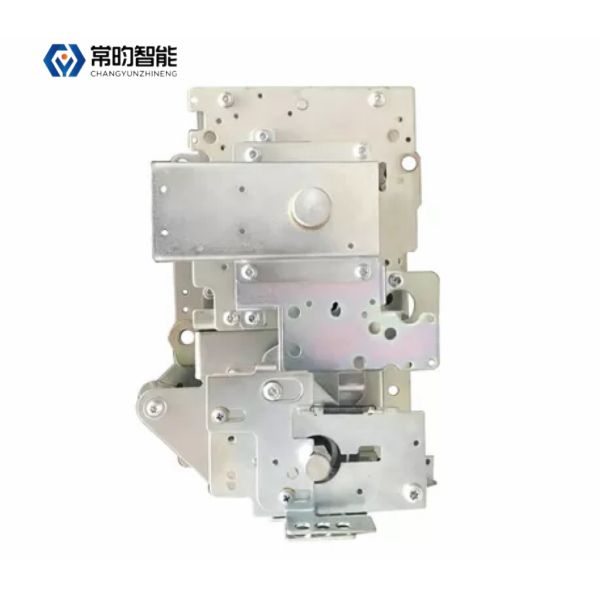

Our Incoming Line Manual Operating Mechanism is a core accessory for ring main units (RMUs), designed to provide reliable, safe, and intuitive manual control of the incoming line switchgear in power distribution networks. Engineered for use in SF6 gas-insulated RMUs, this mechanism ensures precise switching operations (closing/opening/earthing) while incorporating comprehensive mechanical interlocks to eliminate incorrect operations, making it an essential safety and functional component for urban distribution, industrial plants, and commercial power systems.

• Precision Spring-Assisted Operation

  Built on compression spring release principles, the mechanism delivers consistent, rapid switching actions, ensuring contact speeds meet required ratings for reliable load breaking and making operations. The spring-driven design eliminates manual operation inconsistency, ensuring repeatable performance across thousands of cycles.

• Robust Mechanical Interlock System ("Five-Prevention" Safety Logic)

  Equipped with multi-level interlocking devices (position interlock, sequence interlock, door-control interlock), it prevents dangerous operations such as:

  Closing the switch while the earthing switch is closed

  Opening the earthing switch while the line is energized

  Opening the cubicle door when the switch is in the closed position

  This fully mechanical safety system requires no external power, ensuring protection even in outage scenarios.

• Durable Industrial Construction

High-grade galvanized steel plates with anti-corrosion treatment, suitable for indoor and semi-outdoor environments

Precision-machined components with tight tolerances, ensuring smooth operation and minimal wear

IP3X-rated structural integrity, compatible with standard RMU cubicle dimensions

• Versatile Compatibility

  Designed as a drop-in replacement or OEM component for 12kV/24kV SF6 load switches and ring main units, including common models like FLRN36-12D and FLN36-12D. Custom modifications for specialized RMU designs are available on request.

• Low Maintenance Design

  The self-lubricating mechanism and sealed structure minimize routine maintenance needs, reducing long-term operational costs and downtime for power distribution systems.

This mechanism is widely used in:

• Urban and rural medium-voltage power distribution networks
• Industrial facilities (factories, mines, chemical plants)
• Commercial buildings (shopping malls, hospitals, data centers)
• Renewable energy distribution (wind farms, solar power plants)
• Infrastructure projects (railways, airports, ports)

As a professional manufacturer of power distribution accessories, we combine decades of RMU mechanism expertise with strict quality control standards:

1. OEM/ODM Capabilities: Custom dimensions, mounting interfaces, and interlock logic to match your specific RMU design
2. Quality Assurance: ISO 9001 certified production, with each unit tested for operation smoothness, interlock function, and corrosion resistance
3. Global Support: Technical documentation in multiple languages, fast delivery, and after-sales support for international projects
4. Cost-Effective Sourcing: Factory-direct pricing with no middlemen, ensuring competitive lead times and pricing for bulk orders

Click the "Inquiry Now" button to get a customized quote, technical datasheet, or compatibility consultation. Our engineering team is ready to support your RMU project with tailored solutions.
