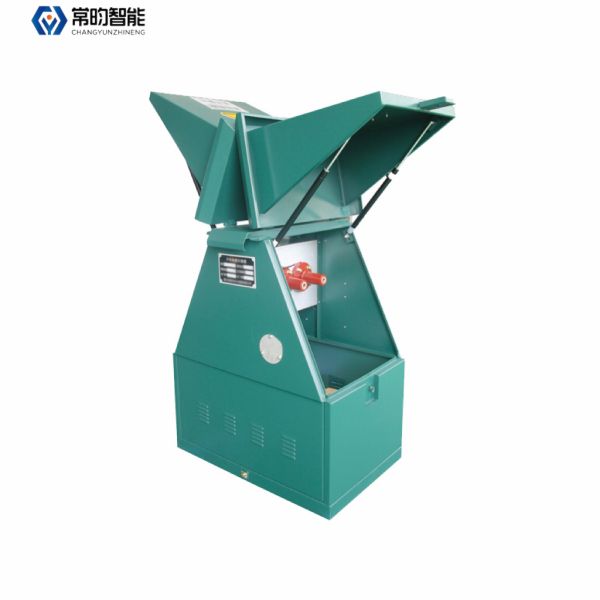

Outdoor High Voltage Cable Distribution Box
Outdoor High Voltage Cable Distribution Box
Outdoor High Voltage Cable Distribution Box
Outdoor High Voltage Cable Distribution Box
Specifications
Shell protection class :
IP44
Frequency withstand voltage of secondary circuit(KV) :
2
Partial Discharge(PC) :
＜20
Lightning impulse withstand voltage(KV) :
75/85
Rated short time(kA/3s)withstand current :
20
Place of Origin :
China
Rated Voltage (KV) :
12
Rated Current (A) :
630
Rated peak withstand current(KA) :
50
Power frequency withstand voltage(KV) :
42/48
Equipped with cable cross section（mm²） :
≤400
Description

This outdoor HV cable distribution box is designed for medium-voltage power distribution network connection and cable branching applications.
It adopts a fully sealed waterproof and dustproof structure, robust weather-resistant metal casing, as well as safe and stable high-voltage insulation performance.

Use Conditions
  1. Ambient temperature: -45℃ ~ +55℃, maximum daily average temperature ≤25℃
  2. Installation altitude: no more than 1000m
  3. Site environment: free from frequent severe vibration and perennial corrosive media
