100m Miniature Laser Distance Sensor , Outdoor Laser Measurement Sensor
100m Miniature Laser Distance Sensor , Outdoor Laser Measurement Sensor
Specifications
Brand Name :
JRT
Model Number :
B605B
Certification :
CE ,ISO9001,ROHS, FCC ,FDA.
Place of Origin :
Chengdu China
MOQ :
1
Price :
Welcome to contact us for discussion
Payment Terms :
T/T, Western Union, Pay pal
Supply Ability :
10000 pcs/day
Delivery Time :
1-3 working days
Packaging Details :
neutro-packing
PRODUCT NAME :
USB Laser Distance Sensor B605B 100m
ACCURACY :
+-1mm
size :
72*40*18mm (±1 mm)
Weight :
About 25g
Measuring Range :
0.03-100m
Voltage :
DC2.0V
Description

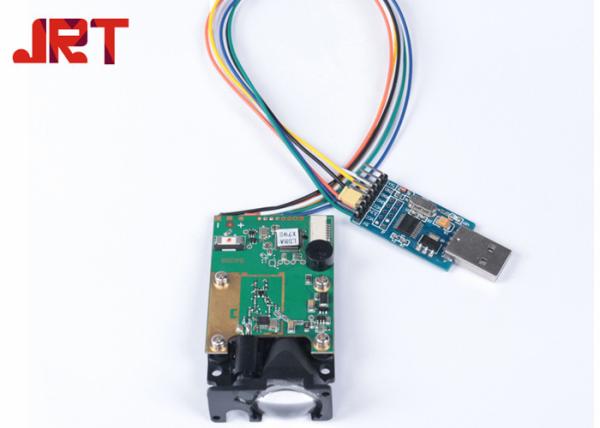

USB Laser Distance Sensor B605B 100m outdoor laser measurement sensor UARTTTL

Description:

USB Laser Distance Sensor B605B serial port is avaliable for different applications. USB output of laser distance sensor is much more stable for industrial application. The accuracy of Laser Distance Sensor can up to high accuracy 1mm.

This USB Laser distance sensor industrial serial port 100m is conneted by USB is much more coniventent for users to test through conneting with laptop or any device which support USB. Our High Precision Laser Distance Sensor also supports data communication via blue tooth,RS232,RS485,etc.

If you have have other requirements, JRT can design and product laser ranging module with serial port as your demand to detect moving objects.

USB Laser Distance Sensor Feature:

1. Good for USB Laser distance sensor

2. Support single measurement/continous measurement

3. Data output: RXTX, USB, RS232, RS485, Bluetooth optional

Specifications of USB Laser Distance Sensor Feature:

Brand Name JRT
Product Name 150m High Precision Laser Distance Sensor with RS232
Packaging Neutro-packing
Certification FDA/ISO9001/CE/ROHS/FCC
Place of Origin China
Accuracy ±1 mm (0.04 inch)
Measuring Unit meter/inch/feet
Measuring Range (without Reflection) 0.03-100m
Measuring Time 0.125~4 seconds
Laser Class Class II
Laser Type 635nm, <1mW
Size

72*40*18mm(±1 mm)
Weight About 25g
Voltage DC2.0~3.3V
Electrical Level TTL/CMOS
Frequency 3HZ~8Hz
Operating Temperature 0-40 ℃ (32-104 ℉ )
Storage Temperature -25~60 ℃ (-13~140 ℉)
Model Number B605B

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.

3.120m,150m can be customized.

4. Voltage can be changed by power converter LDO

5. Frequency would be affected by environment.

6. Operating temperature -10 ℃~50 ℃ can be customized.
