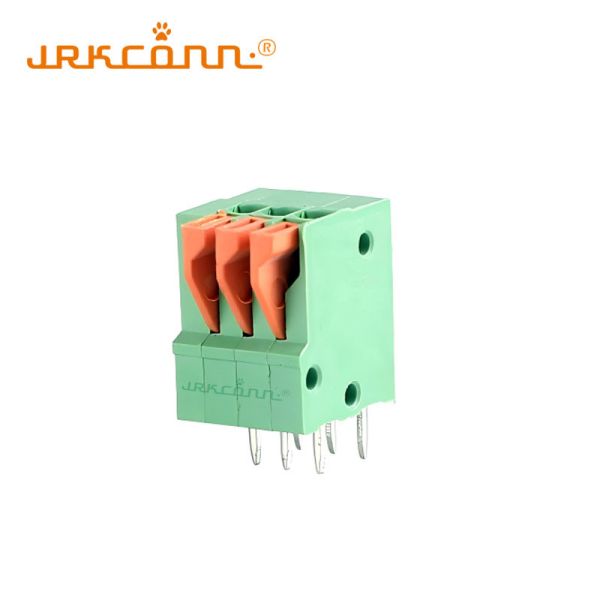

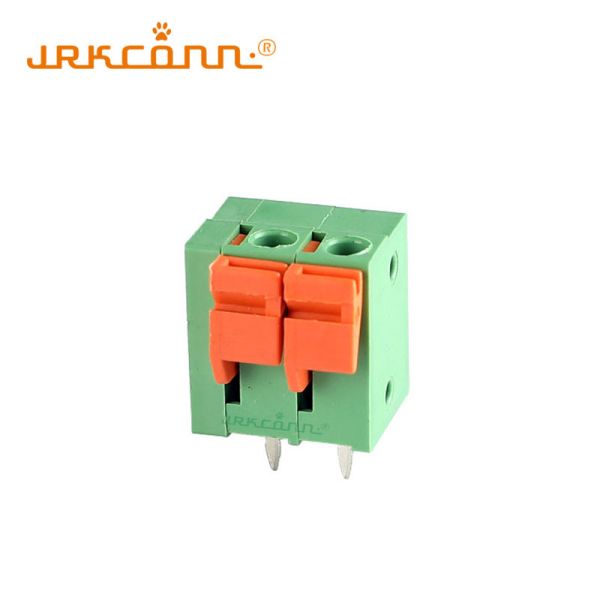

5.08/7.62mm Pitch PA66 Housing PCB Spring Terminal Block for Tool-Free Connection
5.08/7.62mm Pitch PA66 Housing PCB Spring Terminal Block for Tool-Free Connection
Specifications
Brand Name :
Jrkconn
Model Number :
JRK142R-5.08/7.62
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Contact Us
Price :
Contact us
Payment Terms :
T/T,MoneyGram,D/P,D/A,L/C
Supply Ability :
1000000 per week
Delivery Time :
7-14 working days
Packaging Details :
PE Bag Packaging
Pitch :
5.08/7.62mm
Rated current :
10A
Housing :
PA66
Pin Header :
Brass, Tin Plated
Wire Guage :
22-14AWG
Number of Poles :
1P~24P
Description
5.08/7.62mm Pitch PA66 Housing PCB Spring Terminal Block for Tool-Free Connection


PCB spring terminal blocks are compact, insulated PCB wire connectors designed for fast, secure, and tool-free electrical connections on printed circuit boards. Using an internal spring clamp mechanism, these terminal blocks maintain constant contact pressure, ensuring reliable power and signal transmission even in high-vibration or space-constrained applications.

Unlike traditional screw terminal blocks, spring terminal blocks for PCBs eliminate the need for screws, simplifying installation and reducing maintenance time. Wires can be connected quickly through push-in or tension spring technology, improving assembly efficiency and minimizing wiring errors.


Application Fields
  • Programmable Logic Controller (PLC) Systems: For high-density Input/Output (I/O) point connections
  • Factory Automation & Robotics: Where end-effectors, tool changers, or sensor modules require frequent disconnection
  • Motor Control Centers (MCCs) & Power Distribution Panels: For connecting contactors, drives, and circuit breakers
  • Transportation: Railway and mobile equipment requiring reliable, vibration-proof connections


Why Choose JRKCONN?
  • Engineering You Can Trust
    Backed by 13+ years of manufacturing expertise, we specialize in terminal block solutions engineered for performance, reliability, and long-term stability.
  • Quality Without Compromise
    Every product undergoes 100% inspection before shipment, ensuring dependable quality, eliminating defects, and protecting your projects from costly delays or failures.
  • One Partner. Total Solution
    From design to delivery, our one-stop manufacturing solution simplifies your supply chain, reduces sourcing complexity, and helps you save time and control costs.
  • Support That Goes Beyond Products
    Our engineering team works closely with you, providing custom drawings, fast technical responses, and application-specific solutions to bring your ideas to market faster.


Product Specifications
Material:
Model Number JRK142R-5.08/7.62 Series
Type PCB SpringTerminal Block
Pitch 5.08/7.62mm
Poles 1~XXP
Wire Guard Phosphor Bronze, Ni Plated
Pin Header Brass, Tin Plated
Housing Material PA66, UL94V-0
Electrical:
Voltage Rating 300V
Withstanding Voltage AC 1500V / 1Min
Current Rating 10A
Wire Gauge 22-14 AWG
Mechanical:
Temp Range -30℃~+120℃
Max Soldering +250℃ for 5 Sec
Strip Length 10mm
Color Green
Note: The actual product color may vary slightly from the images shown due to variations in monitor settings. All measurements are taken manually and may have slight deviations.

Technical Drawing:
Packing & Delivery
Selling Units Single item
Package Tray/bag + carton box packing
Port Shenzhen
Estimated Delivery Time:
Samples 3 ~ 7 working days
1 ~ 100K 15 business days
Custom Manufacturing Process
5.08/7.62mm Pitch PA66 Housing PCB Spring Terminal Block for Tool-Free Connection
Frequently Asked Questions
Q1. Can I have a sample order before placing a purchase order?
A: Samples are available for testing; customers pay only the express courier cost.
Q2. What is the sample lead time?
A: Standard samples take 3-7 working days; customized samples take 7-15 working days.
Q3. Do you have any MOQ Limit?
A: Low MOQ available; 1 piece for sample checking.
Q4. Can I make personalized/customized products?
A: Yes, we accept custom orders based on your drawings or samples.
Q5. How do you ship the goods, and what is the shipping time?
A: We ship via DHL, UPS, FedEx, TNT, or your freight forwarder, typically arriving in 3-10 days.
Q6. Are OEM and ODM available?
A: Yes, OEM and ODM are available.
