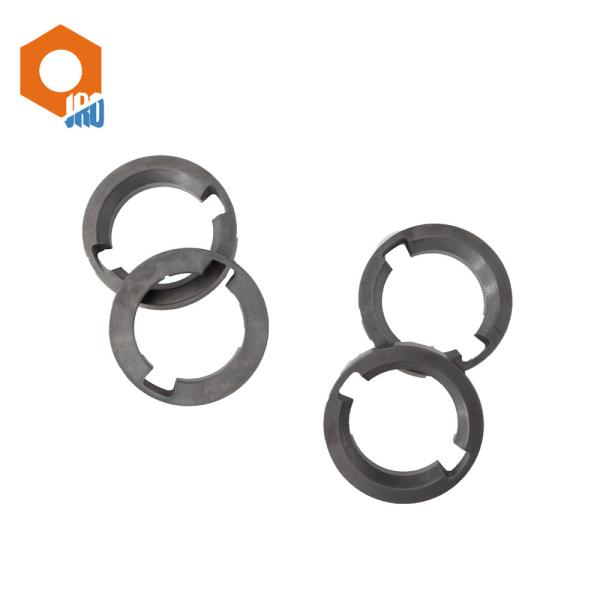

OEM 5mm-150mm Cemented Carbide Bushing With Inner Groove For Oil
OEM 5mm-150mm Cemented Carbide Bushing With Inner Groove For Oil
OEM 5mm-150mm Cemented Carbide Bushing With Inner Groove For Oil
OEM 5mm-150mm Cemented Carbide Bushing With Inner Groove For Oil
Specifications
Brand Name :
OEM
Model Number :
custom
Place of Origin :
China,Sichuan
MOQ :
20pcs
Price :
USD+23+Pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000+pieces+per month
Delivery Time :
15 days
Packaging Details :
Foam+corrugated box +15*15*10cm for 10 pcs
Product name :
tungsten carbide sleeve bushings
material :
tungsten carbide
grade :
YG6,YN6,K10,P20,Etc
Diameter :
OEM,5mm-150mm
Applicable Industries: :
used for water pump, oil pump
Feature :
high wear resistance,corrosion resistance
density :
14.8
surface :
lapping
Description

OEM Tungsten carbide Wear Sleeve Bushing with inner groove for oil

Tungsten carbide parts holds incredible potential for the oil and gas industry and mining- where leading installations are already profiting from its Wear-resistant, corrosion-resistant and high hardness.

OEM 5mm-150mm Cemented Carbide Bushing With Inner Groove For Oil

Chinese Grade ISO Chemical Composition Physical Mechanical Properties
WC Co Density Bend Strength Hardness
% % G/Cm3 N/mm2 HRA
YG3 K01 96.5-97 3 14.9-15.3 ≥1180 ≥91.0
YG6X K10 93.5 6 14.8-15.1 ≥1420 ≥92
YG6 K20 94 6 14.7-15.1 ≥1600 ≥91
YG8 K20-K30 92 8 14.5-14.9 ≥1600 ≥90
YG10 K40 90 10 14.3-14.7 ≥1900 ≥89
YG10X 89 10 14.3-14.7 ≥2200 ≥89.5
YG15 K30 85 15 13.9-14.2 ≥2100 ≥87
YG20 80 20 13.4-13.7 ≥2500 ≥85.5
YG20C K40 80 20 13.4-13.7 ≥2200 ≥85.5
YG30 G60 70 30 12.8 ≥2750 ≥82

Tungsten carbide bushings are appropriate for long-run high-production drilling applications.These higher-cost drill bushings are made of C2 tungsten carbide material for extreme wear resistance. PC bushings are the carbide version of our popular P bushings, which are permanently pressed into jig plate, usually flush with the top surface. HC bushings are the carbide version of our popular H bushings, which are also permanently pressed into the jig plate and have a sturdy head to resist heavy axial loads. The head can be left exposed, or recessed by counterboring the installation hole. SFC bushings are the carbide version of our popular SF bushings, which are replaceable bushings generally used with a liner bushing and lockscrew. Other bushing types including Directed-Coolant Bushings, Gun-Drill Bushings, and special-to -print bushings are also available in carbide. All carbide bushings are manufactured to order.
