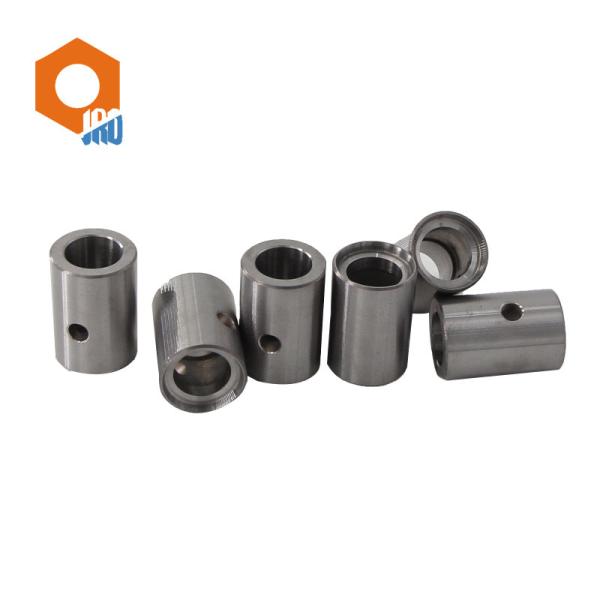

Cemented Tungsten Carbide Drill Bushing Customized hole with sleeve bushing
Cemented Tungsten Carbide Drill Bushing Customized hole with sleeve bushing
Specifications
Brand Name :
OEM
Model Number :
custom
Place of Origin :
China
MOQ :
20pcs
Price :
USD+17+Pieces
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
10000+pieces+per month
Delivery Time :
20 days
Packaging Details :
carton +25*20*20+50pcs
type :
TC bushing sleeve
materil :
cemented carbide,tungsten carbide
grade :
YG6,YG8,YT15,etc.
size :
OEM, custom
hardness :
HRA 89
Surface roughness :
Ra 0.12
Advantage :
High Wear Resistance
Density :
14.8
Description

customized cemented tungsten carbide sleeve bushings

Tungsten Carbide bushings have the characters of high wear resistance, high corrosion resistance and good compressive properties.It's widely used in petrochemical industries and other industries which call for high properties of the mechanical parts.

Cemented Tungsten Carbide Drill Bushing Customized hole with sleeve bushing

Cemented Tungsten Carbide Drill Bushing Customized hole with sleeve bushing

Tungsten carbide parts holds incredible potential for the oil and gas industry and mining- where leading installations are already profiting from its Wear-resistant, corrosion-resistant and high hardness.

Chinese Grade ISO Chemical Composition Physical Mechanical Properties
WC Co Density Bend Strength Hardness
% % G/Cm3 N/mm2 HRA
YG3 K01 96.5-97 3 14.9-15.3 ≥1180 ≥91.0
YG6X K10 93.5 6 14.8-15.1 ≥1420 ≥92
YG6 K20 94 6 14.7-15.1 ≥1600 ≥91
YG8 K20-K30 92 8 14.5-14.9 ≥1600 ≥90
YG10 K40 90 10 14.3-14.7 ≥1900 ≥89
YG10X 89 10 14.3-14.7 ≥2200 ≥89.5
YG15 K30 85 15 13.9-14.2 ≥2100 ≥87
YG20 80 20 13.4-13.7 ≥2500 ≥85.5
YG20C K40 80 20 13.4-13.7 ≥2200 ≥85.5
YG30 G60 70 30 12.8 ≥2750 ≥82

Grade as following :
YG6,YG6X,YG8,YG8.2,YG8L,YG15,YG20,YG20C,YG20D etc are the traditional material,suitable for the normal tungsten carbide roller.

1. Tungsten carbide bushing has the characteristics of wear resistance and impact resistance.


2.It is the supporting parts used in the mechanical parts, in order to achieve sealing, wear protection and other functions.
In the field of valve applications, the tungsten carbide bushing is in the bonnet and is the corrosion-resistant materials for sealing.


3.In the field of bearing application, the carbide bushings are used to reduce wear between the bearing and the shaft seat, and to avoid the increase of clearance between shaft and hole.
