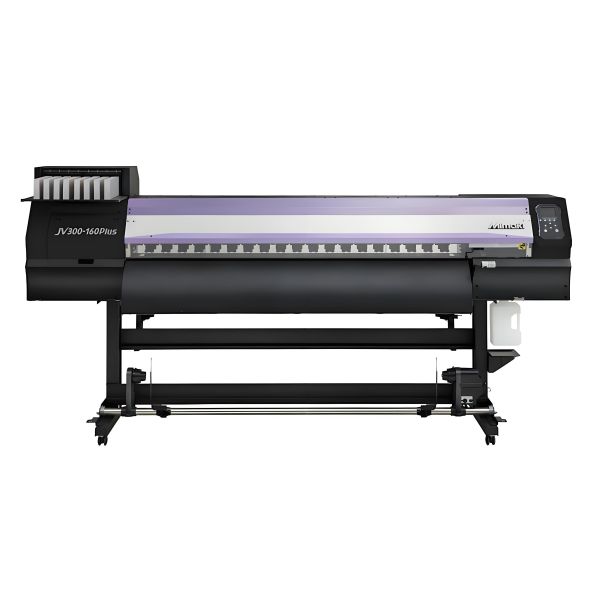

Large Format Eco Solvent Printer For T Shirts Mimaki JV300-160 Plus
Large Format Eco Solvent Printer For T Shirts Mimaki JV300-160 Plus
Large Format Eco Solvent Printer For T Shirts Mimaki JV300-160 Plus
Large Format Eco Solvent Printer For T Shirts Mimaki JV300-160 Plus
Specifications
Brand Name :
MIMAKI
Model Number :
JV300-160 Plus
Certification :
CE
Place of Origin :
Japan
MOQ :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 Sets Per 1 Month
Delivery Time :
7-15 Working Days
Packaging Details :
Standard Packaging
Printhead :
On-demand piezo head (2 staggered printheads)
Print resolution :
360dpi, 540dpi, 720dpi, 1,080dpi, and 1,440dpi
Maximum print width :
1,610mm (63.3")
Maximum media width :
1,620mm (63.7")
Ink Type/Color :
Eco-solvent ink ・SS21（C,M,Y,K,Lc,Lm,Lk,Or,W） ・BS3（C,M,Y,K）*Only available in specific countries ・BS4（C,M,Y,K）*Only available in specific countries ・ES3（C,M,Y,K,Lc,Lm,W） Sublimation ink ・Sb54（Bl,M,Y,K,Lbl,Lm）
Ink Package size *1 :
SS21: 440ml Ink cartridge / 600ml Ink pack / 2L Ink pack (*W is provided in 220ml Ink cartridge only) BS3, BS4: 600ml Ink pack / 2L Ink pack ES3: 440ml Ink cartridge (*W is provided in 220ml Ink cartridge only) Sb54: 440ml Ink cartridge / 2L Ink pack
Circulation system :
MCT (Mimaki Circulation Technology) *2
Media thickness :
1.0mm or less
Rolled media weight :
45kg (99 lb) or less
Certifications :
VCCI class A, FCC class A, ETL IEC 62368-1 CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, EAC
Interface :
USB 2.0 / Ethernet 1000BASE-T
Power supply :
Single-phase (AC 100–120V / AC 220–240V) × 2　50/60Hz ±1Hz
Power consumption :
1,440W×2 or less (at AC 100V system) 1,920W×2 or less (at AC 200V system)
Operational environment :
Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing)
Dimensions (W×D×H) :
2,775mm×700mm×1,392mm (109"×28"×55")
Weight :
200kg (441 lb)
feature :
High precision
product name :
Eco Solvent Printer
ink type :
Eco-solvent ink / Sublimation ink
type :
entry model
Description

Mimaki JV300-160 Plus the perfect choice for businesses looking for high-functioning Eco Solvent Printer

Large-format inkjet printer equipped with eco-solvent ink for signage market, which is evolved with three "Plus" features

"JV300 Plus Series" are new model products standing as successor of "JV300 Series".
Environmental consideration, economic performance, and work efficiency have been added as "Plus" features as well as high function.

Three "Plus" features

  1. ECO feature for green protection
  2. Labor-saving process & Business efficiency
  3. Newly added functions to realize higher image quality and stability

Specifications

JV300-130 Plus JV300-160 Plus
Printhead On-demand piezo head (2 staggered printheads)
Print resolution 360dpi, 540dpi, 720dpi, 1,080dpi, and 1,440dpi
Maximum print width 1,361mm (53.5") 1,610mm (63.3")
Maximum media width 1,371mm (53.9") 1,620mm (63.7")
Ink Type/Color Eco-solvent ink
・SS21(C,M,Y,K,Lc,Lm,Lk,Or,W)
・BS3(C,M,Y,K)*Only available in specific countries
・BS4(C,M,Y,K)*Only available in specific countries
・ES3(C,M,Y,K,Lc,Lm,W)
Sublimation ink
・Sb54(Bl,M,Y,K,Lbl,Lm)
Package size
*1		 SS21: 440ml Ink cartridge / 600ml Ink pack / 2L Ink pack (*W is provided in 220ml Ink cartridge only)
BS3, BS4: 600ml Ink pack / 2L Ink pack
ES3: 440ml Ink cartridge (*W is provided in 220ml Ink cartridge only)
Sb54: 440ml Ink cartridge / 2L Ink pack
Circulation
system		 MCT (Mimaki Circulation Technology) *2
Media thickness 1.0mm or less
Rolled media weight 45kg (99 lb) or less
Certifications VCCI class A, FCC class A, ETL IEC 62368-1
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, REACH, Energy Star, RCM, EAC
Interface USB 2.0 / Ethernet 1000BASE-T
Power supply Single-phase (AC 100–120V / AC 220–240V) × 2　50/60Hz ±1Hz
Power consumption 1,440W×2 or less (at AC 100V system)
1,920W×2 or less (at AC 200V system)
Operational environment Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing)
Dimensions (W×D×H) 2,525mm×700mm×1,392mm
(99"×28"×55")		 2,775mm×700mm×1,392mm
(109"×28"×55")
Weight 170kg (375 lb) 200kg (441 lb)

*1 Optional Mimaki bulk ink system 3 (MBIS3) is required for using 2L Ink pack.
*2 MCT works only with white ink.

Ink set

SS21
［C,M,Y,K,Lc,Lm,Lk,Or,W］		 C　M　Y　K
C　M　Y　K　Lc　Lm　Lk　Or
C　M　Y　K　Lc　Lm　W
C　M　Y　K　Lk　Or　W
BS3
［C,M,Y,K］		 C　M　Y　K
BS4
［C,M,Y,K］		 C　M　Y　K
ES3
［C,M,Y,K,Lc,Lm,W］		 C　M　Y　K
C　M　Y　K　Lc　Lm
C　M　Y　K　Lc　Lm　W
Sb54
［Bl,M,Y,K,Lbl,Lm］		 Bl　M　Y　K
Bl　M　Y　K　Lbl　Lm

Production Example of JV300 Plus Series

*Click to view larger image.

Large Format Eco Solvent Printer For T Shirts Mimaki JV300-160 Plus Large Format Eco Solvent Printer For T Shirts Mimaki JV300-160 Plus Large Format Eco Solvent Printer For T Shirts Mimaki JV300-160 Plus Large Format Eco Solvent Printer For T Shirts Mimaki JV300-160 Plus
Outdoor signboard Poster Illumination signboard Banner
Large Format Eco Solvent Printer For T Shirts Mimaki JV300-160 Plus
Fashion Apparel


Large Format Eco Solvent Printer For T Shirts Mimaki JV300-160 Plus
Large Format Eco Solvent Printer For T Shirts Mimaki JV300-160 Plus
Large Format Eco Solvent Printer For T Shirts Mimaki JV300-160 Plus
