Specifications
Brand Name :
MIMAKI
Model Number :
TxF300-1600
Certification :
CE
Place of Origin :
Japan
Print head :
On-demand piezo head
Printing resolution :
720dpi, 1,080dpi, 1,440dpi
Ink Type/Color :
Heat transfer pigment ink PHT50 (C, M, Y, K, W)
Ink Capacity :
600 ml ink pack (500 ml for white only)
Circulation function :
Available only for white ink
Maximum print width :
1,610 mm (63.4 in)
Media Maximum width :
1,610 mm (63.8 in)
Media Thickness :
1.0 mm or less
Media Roll weight :
45 kg (99.2 lb) or less
Interface :
Ethernet 1000 BASE-T / USB2.0 Hi-speed
Power specifications :
Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1
Power consumption :
100V system: 1.3kW or less, 200V system: 1.75kW or less
Certifications :
VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, KC
Dimensions (W×D×H) :
2,783 x 700 x 1,392 mm (109.6 x 27.6 x 54.8 in)
Weight :
166 kg (366.0 lb)
MOQ :
Negotiable
Packaging Details :
Standard Packaging
Delivery Time :
7-15 Working Days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
product name :
DTF Printer
Image Format :
JPG, TIF, PDF, etc.
Print Color :
CMYK+W
Media Type :
Pet Film
Description

MIMAKI TxF300-1600 DTF Printer with 720dpi, 1,080dpi, 1,440dpi Resolution, 600 ml Ink Pack, and 1,610 mm Print Width

MIMAKI TxF300-1600 UV-DTF Printer
A safe and stable machine packed with Mimaki's technology
Productivity increases! Mimaki's Pro-model DTF printer
"TxF300-1600" is a DTF (direct-to-film) printer with a maximum printing width of 160 cm for producing DTF print transfer sheets. "PHT50" heat transfer pigment ink for DTF, consisting of five colors (CMYK and white), has acquired the ECO PASSPORT certification which is essential for obtaining the international safety standard for textile products "OEKO-TEX®".
The "TxF300-1600" is equipped with approx. 130% of the custom T-shirt print productivity (compared to previous model, TxF300-75).
Furthermore, the printing width has been extended to approx. double that of the previous model, enabling original printing on relatively wide interior fabrics.
What is DTF?
A printing method which prints directly on DTF film, sprinkles hot-melt powder, which is then heated and dried to form transferable ink layer. The ink layer is heat-pressed and transferred to a fabric such as T-shirt.
*Mimaki offerings for DTF printing will be printers, inks and RIP software. Our recommended specifications for the film used to create the transfer sheet, hot-melt powder, powder application equipment, post-processing machines and heat press transfer machines are provided to customers at the time of sale.
Product outlines
  • Productivity increases! Mimaki's Pro-model DTF printer
  • A wider print size, widers your application
  • Eliminates "ink ejection defects" and "white ink clogging" to realize stable operation
  • ECO PASSPORT certified ink to ensure customer safety and security
  • Optional cartridge enables long-term continuous operation
Specifications
TxF300-1600
Print head On-demand piezo head
Printing resolution 720dpi, 1,080dpi, 1,440dpi
Ink Type/Color: Heat transfer pigment ink PHT50 (C, M, Y, K, W)
Capacity: 600 ml ink pack (500 ml for white only)
Circulation function: Available only for white ink
Maximum print width 1,610 mm (63.4 in)
Media Maximum width: 1,620 mm (63.8 in)
Thickness: 1.0 mm or less
Roll weight: 45 kg (99.2 lb) or less
Interface Ethernet 1000 BASE-T / USB2.0 Hi-speed
Power specifications Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1
Power consumption 100V system: 1.3kW or less, 200V system: 1.75kW or less
Certifications VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, KC
Dimensions (W*D*H) 2,783 x 700 x 1,392 mm (109.6 x 27.6 x 54.8 in)
Weight 166 kg (366.0 lb)
TxF300-1600 MIMAKI DTF Printer 720dpi 1080dpi 1440dpi Resolution

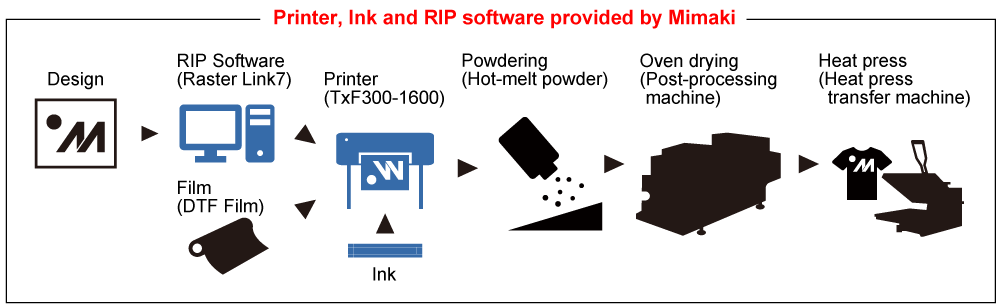

Printer, Ink and RIP software provided by Mimaki
Production Example of TxF300-1600
TxF300-1600 MIMAKI DTF Printer 720dpi 1080dpi 1440dpi Resolution
T-shirt
TxF300-1600 MIMAKI DTF Printer 720dpi 1080dpi 1440dpi Resolution
Fashion accessories
TxF300-1600 MIMAKI DTF Printer 720dpi 1080dpi 1440dpi Resolution
Interior fabrics
