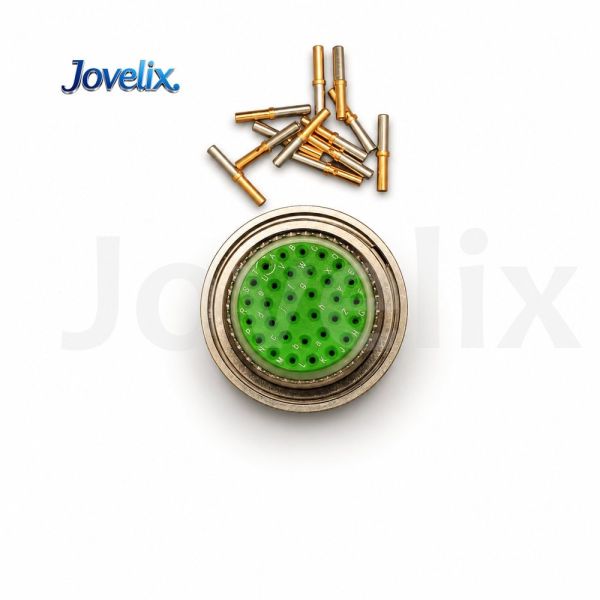

Y27473T18F32SN MIL‑DTL‑38999 Series II 32Pin Circular Aviation Connector，Circular Connector, 32 Pin, Defense‑Grade Standard, Quick Lock, EMI Shielding
Y27473T18F32SN MIL‑DTL‑38999 Series II 32Pin Circular Aviation Connector，Circular Connector, 32 Pin, Defense‑Grade Standard, Quick Lock, EMI Shielding
Y27473T18F32SN MIL‑DTL‑38999 Series II 32Pin Circular Aviation Connector，Circular Connector, 32 Pin, Defense‑Grade Standard, Quick Lock, EMI Shielding
Y27473T18F32SN MIL‑DTL‑38999 Series II 32Pin Circular Aviation Connector，Circular Connector, 32 Pin, Defense‑Grade Standard, Quick Lock, EMI Shielding
Y27473T18F32SN MIL‑DTL‑38999 Series II 32Pin Circular Aviation Connector，Circular Connector, 32 Pin, Defense‑Grade Standard, Quick Lock, EMI Shielding
Y27473T18F32SN MIL‑DTL‑38999 Series II 32Pin Circular Aviation Connector，Circular Connector, 32 Pin, Defense‑Grade Standard, Quick Lock, EMI Shielding
Specifications
Brand Name :
Jovelix
Mechanical Properties :
Shell Material: Aluminum alloy, Stainless steel
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 pcs per month
Impact :
3 ms half-sine wave; acceleration peak 300g
Operating Temperature :
Class B: --65 ˚ C ~ +175 ˚ C; Class E and F: --65 ˚ C ~ +200 ˚C;
Model Number :
JY27473T18F32SN
Delivery Time :
2--9 weeks
Vibration :
Random vibration Frequency 100–1000 Hz Power spectral density 1 g ²/Hz
Certification :
AS9001
Working height :
≤ 30480 m
Packaging Details :
standard export package
Mechanical lifespan :
500 cycles
Place of Origin :
China
MOQ :
10PCS
Price :
10＄--500＄
Salt Spray Resistance :
Class B:500h; Class E:1000h Fcategory:48h
Relative humidity :
At 40 ˚ C, it reaches 98%
Description
Product Introduction

This product complies with GJB599B (MIL-DTL-38999M) Series II standard and adopts card-type quick connection structure.

It ranks the smallest in volume, lightest in weight and shortest in housing among all 599 series, and supports EMI/RFI shielding performance.

The contacts are press-fit and detachable, and diagonal insertion is not allowed. In narrow space where insertion and removal are inconvenient, it is recommended to pre-install pins in the socket.

Purpose

This product is applied to circuit signal connection.

Application Environment

This is a lightweight electrical connector, suitable for working conditions without high-intensity vibration, severe wind, sand and humid harsh environments.

Basic Mechanical Design Feature
Mechanical Properties

Shell Material: Aluminum alloy, Stainless steel

Coating
  • Class B: Cadmium-plated mili-tary green
  • Class E: Stainless steel passivation
  • Class F: Chemical nickel plating

Contact piece: Gold-plated copper alloy surface, suitable for crimping, welding and printed circuit board applications

Mechanical lifespan: 500 mating cycles

Vibration: Random vibration, frequency 100–1000 Hz, power spectral density 1 g²/Hz

Impact: 3 ms half-sine wave; acceleration peak 300g

behaviour of electricity

Contact resistance and rated current of the contact parts:

Contact Specifications Working diameter mm Contact resistance m Ω Rated current A
22D Φ0.76 ≤12 5
20# Φ1.00 ≤5 7.5
16# Φ1.60 ≤2.5 13
12# Φ2.40 ≤1.5 23

Electromagnetic interference shielding: at 100 MHz-1 GHz, minimum attenuation is 45 dB; Withstand voltage:V

Job Level* M Ⅰ Ⅱ
Sea Level 1300 1800 2300
21000m 800 1000 1000

Insulation resistance: Under normal conditions ≥ 5000 MΩ

Electrical continuity between the shell and interior: Class B ≤ 2.5 m Ω

Moisture condition: ≥ 100 M Ω

F class ≤ 1.0 m Ω E class ≤ 50 m Ω

Environmental Performance

Operating Temperature:Class B: --65 ˚ C ~ +175 ˚ C; Class E and F: --65 ˚ C ~ +200 ˚C;

Salt Spray Resistance:Class B:500h; Class E:1000h Fcategory:48h

Relative humidity: At 40 ˚ C, it reaches 98%

Working height: ≤ 30480 m

JY27473/JY27484 Plug

Y27473T18F32SN MIL‑DTL‑38999 Series II 32Pin Circular Aviation Connector，Circular Connector, 32 Pin, Defense‑Grade Standard, Quick Lock, EMI Shielding

 Shell Number D1 Thread D2 UNEF-2A
08 18.8 0.4375-28
10 21.5 0.5625-24
12 25.8 0.6875-24
14 29.2 0.8125-20
16 32.3 0.9375-20
18 35.4 1.0625-18
20 38.5 1.1875-18
22 41.7 1.3125-18
24 44.7 1.4375-18
