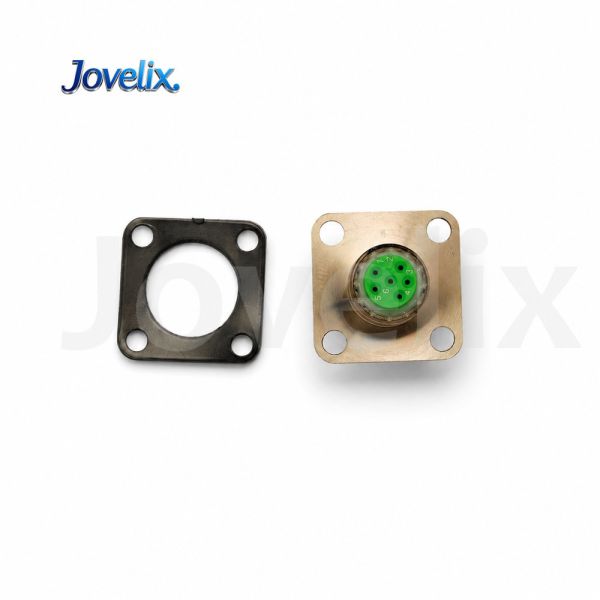

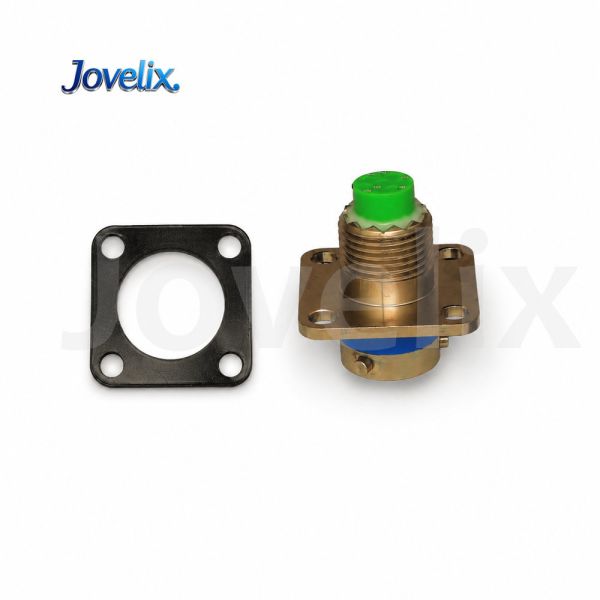

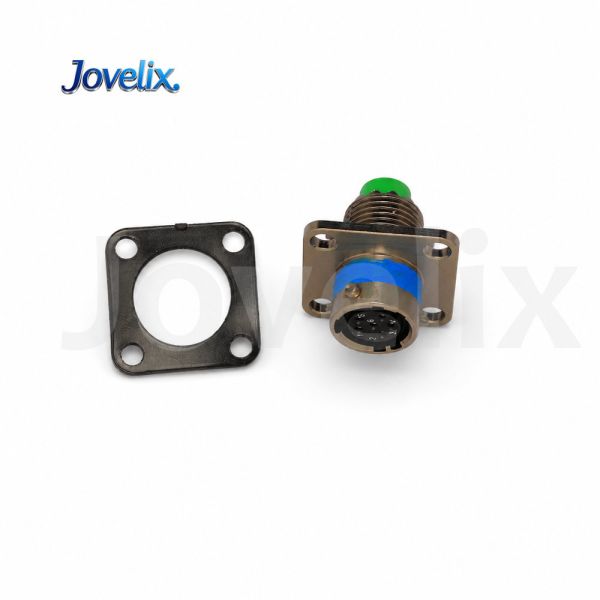

GJB599B MIL-DTL-38999 Series I Quick-Release EMI Shielded Connector

The GJB599B MIL-DTL-38999 Series I Quick-Release EMI Shielded Connector is designed for compact, lightweight, and high-density circuit signal connection. It features quick-release coupling, EMI/RFI shielding, five-key positioning, anti-mismating protection, and detachable crimp contacts for reliable connection performance.

This series provides 9 shell sizes, multiple contact layouts, and various receptacle mounting styles, including box-type, wall-mounted, front-mounted, rear-mounted, and jam-nut options. Rear accessories comply with GJB1784, supporting stable cable assembly and system-level integration.

The connector is manufactured with aluminum alloy, stainless steel, or titanium alloy shells. Contacts are made of gold-plated copper alloy and support crimp, solder, and PCB termination. With 500-cycle mechanical durability, 10–2000 Hz sine vibration resistance, random vibration resistance, and 300g half-sine shock resistance, it is widely used in aviation systems, defense electronics, communication equipment, industrial control systems, and high-reliability signal interconnection applications.

behaviour of electricity :

Contact resistance and rated current of the contact components

Contact Specifications Working diameter mm Contact resistance m Ω Rated current A
22D Φ0.76 ≤12 5
20# Φ1.00 ≤5 7.5
16# Φ1.60 ≤2.5 13
12# Φ2.40 ≤1.5 23
10# Φ3.15 ≤1.0 40

Electromagnetic interference shielding: at 100 MHz to 1 GHz, the minimum attenuation is 85 dB At frequencies from 1 GHz to 10 GHz, the minimum attenuation is 50 dB.

Voltage rating: V (Note: Different contact arrangements have different operating ratings; specific ratings are indicated by the letters in the upper-right corner of the contact arrangement diagram.)

Job Level* M N I II
Sea Level 1300 1000 1800 2300
21000m 800 600 1000 1000
JY27466 Front-Mount Wal Square-Flange Receptacle
Shell D1 Thread D2 UNEF-2A A1 A2 B C D T d1 d2
09 14.6 0.4375-28 16.1 20.8 2.54 18.26 23.8 3.2 12.5 16.7
11 17.8 0.5625-24 16.1 20.8 2.54 20.62 26.2 3.2 15.5 20.2
13 21.6 0.6875-24 16.1 20.8 2.54 23.02 28.6 3.2 19.5 24.5
15 24.8 0.8125-20 16.1 20.8 2.54 24.62 31.0 3.2 21.5 27.7
17 28.0 0.9375-20 16.1 20.8 2.54 26.98 33.3 3.2 25.0 30.9
19 30.7 1.0625-18 16.1 20.8 2.54 29.36 36.5 3.2 28.0 32.9
21 33.8 1.1875-18 15.3 20.1 3.3 31.76 39.7 3.7 31.5 36.2
23 37.0 1.3125-18 15.3 20.1 3.3 34.92 42.9 3.7 34.5 39.3
25 40.2 1.4375-18 15.3 20.1 3.3 38.10 46.0 3.7 37.5 42.5
