MS3116F14-4S Straight Circular Connector Plug 4 Socket Contacts For Industrial Equipment
MS3116F14-4S Straight Circular Connector Plug 4 Socket Contacts For Industrial Equipment
MS3116F14-4S Straight Circular Connector Plug 4 Socket Contacts For Industrial Equipment
MS3116F14-4S Straight Circular Connector Plug 4 Socket Contacts For Industrial Equipment
MS3116F14-4S Straight Circular Connector Plug 4 Socket Contacts For Industrial Equipment
MS3116F14-4S Straight Circular Connector Plug 4 Socket Contacts For Industrial Equipment
Specifications
Packaging Details :
standard export package
Brand Name :
Jovelix
Price :
10＄--500＄
Durability :
≥ 500 cycles
Shell Material :
Aluminium-alloy, copper-alloy or stainless-steel
MOQ :
10PCS
Model Number :
MS3116F14-4S
Delivery Time :
2--9 weeks
Environmental seal :
≤ 4.6×102 Pa ·cm3/s
Supply Ability :
10000 pcs per month
Place of Origin :
China
Certification :
AS9001
Payment Terms :
L/C,T/T,Western Union
Operating temperature range :
-55 oC ~ +125 oC
Random vibration :
Frequency 10Hz ~ 2000Hz at 147 m/s2
Shock :
Max acceleration 490 m/s2
Corrosion resistance :
Class L withstand 48 hours salt spray and others withstand 500 hours salt spray
Description
MIL-C-26482 Series I Circular Connector

The MIL-C-26482 Series I Circular Connector is a rugged quick-disconnect connector designed for reliable performance in commercial, mili-tary, and aerospace electrical systems. Featuring a bayonet coupling mechanism, solder contact termination, compact structure, and medium contact density, this series provides fast mating, secure locking, and stable electrical continuity in demanding applications.

Available in multiple shell materials, shell sizes, finishes, plug styles, receptacle mounting options, contact types, and contact layouts, the series offers flexible configuration choices for different equipment designs. With reliable sealing, corrosion resistance, shock resistance, vibration resistance, and a service life of 500+ mating cycles, it is well suited for harsh operating environments.

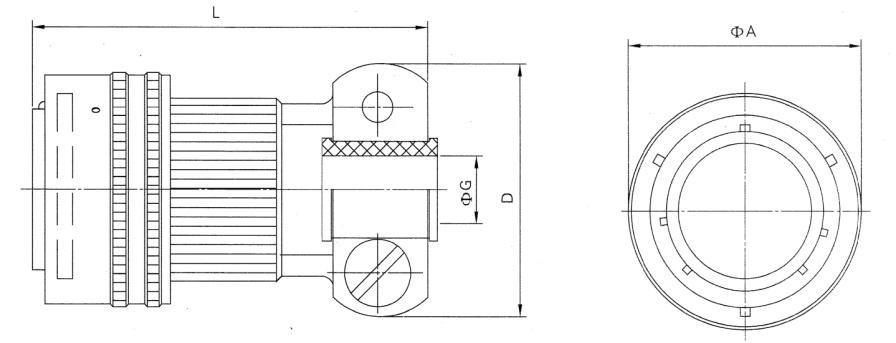

Straight plug (MS3116F)
MS3116F14-4S Straight Circular Connector Plug 4 Socket Contacts For Industrial Equipment
Shell No. 8 10 12 14 16 18 20 22 24
L (max) 48.0 48.0 48.0 48.0 51.0 51.0 52.0 52.0 52.0
A (max) 19.0 21.0 26.0 28.5 31.0 35.0 39.0 42.0 45.0
D (max) 19.9 21.5 24.0 27.8 29.4 35.3 35.3 41.1 42.4
G (max) 3.5 5.0 8.2 10.0 13.0 16.0 16.0 19.3 20.6
