MIL-DTL-38999 Series II Circular Connector MS27497T10B35P, 13-Core Wall Mount Receptacle
MIL-DTL-38999 Series II Circular Connector MS27497T10B35P, 13-Core Wall Mount Receptacle
MIL-DTL-38999 Series II Circular Connector MS27497T10B35P, 13-Core Wall Mount Receptacle
MIL-DTL-38999 Series II Circular Connector MS27497T10B35P, 13-Core Wall Mount Receptacle
MIL-DTL-38999 Series II Circular Connector MS27497T10B35P, 13-Core Wall Mount Receptacle
MIL-DTL-38999 Series II Circular Connector MS27497T10B35P, 13-Core Wall Mount Receptacle
Specifications
Place of Origin :
China
Salt Spray Resistance :
Class B: 500h; Class E: 1000h F category: 48h
Relative humidity :
At 40 ˚ C, it reaches 98%
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
2--9 weeks
Packaging Details :
standard export package
Working height :
≤ 30480 m
Operating Temperature :
Class B: --65 ˚ C ~ +175 ˚ C; Class E and F: --65 ˚ C ~ +200 ˚ C;
MOQ :
10PCS
Certification :
AS9001
Brand Name :
Jovelix
Supply Ability :
10000 pcs per month
Model Number :
MS27497T10B35P
Price :
10＄--500＄
Description
Lightweight Electrical Connector for Controlled Operating Environments

This lightweight electrical connector is designed for circuit signal connection in applications where extreme vibration, severe wind, sand, and moisture exposure are not primary operating conditions. It is suitable for compact electronic systems requiring reliable performance, reduced weight, and stable mechanical structure.

The connector shell is available in aluminum alloy and stainless steel, with coating options including Class B mili-tary green cadmium plating, Class E stainless steel passivation, and Class F chemical nickel plating. The contact pieces are made of gold-plated copper alloy and support crimp, solder, and printed circuit board termination.

With a mechanical lifespan of 500 mating cycles, random vibration resistance from 100–1000 Hz, and 300g half-sine impact resistance, this connector provides dependable performance for lightweight signal interconnection applications.

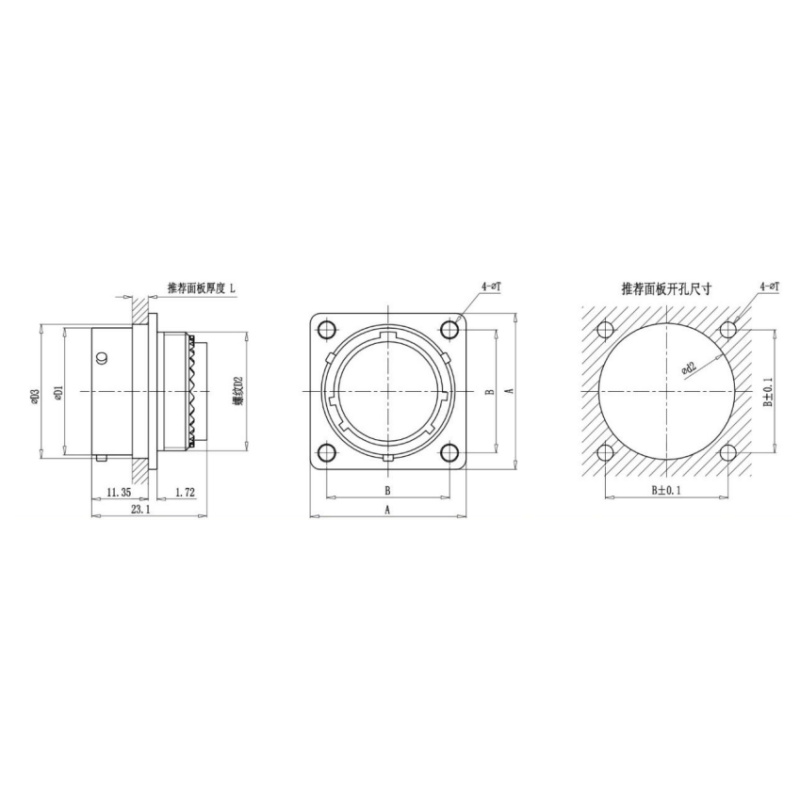

JY27497 Wall-mounted square panel rear-mounted socket
MIL-DTL-38999 Series II Circular Connector MS27497T10B35P, 13-Core Wall Mount Receptacle
Shell Size D1 Thread D2 UNEF-2A D3 L max A B T d1 d2
08 12.00 0.4375-28 13.20 2.0 21.00 15.09 3.2 12.5 14.2
10 15.00 0.5625-24 16.14 2.0 24.10 18.26 3.2 15.5 17.5
12 19.05 0.6875-24 20.50 2.0 26.50 20.62 3.2 19.5 21.3
14 22.23 0.8125-20 23.60 2.0 28.90 23.01 3.2 21.5 25.0
16 25.40 0.9375-20 26.80 2.0 31.21 24.61 3.2 25.0 27.3
18 28.58 1.0625-18 30.00 2.0 33.60 26.97 3.2 28.0 31.3
20 31.75 1.1875-18 33.20 2.5 36.80 29.36 3.2 31.5 34.5
22 34.93 1.3125-18 36.35 2.5 40.00 31.75 3.2 34.5 37.5
24 38.10 1.4375-18 39.50 2.5 43.10 34.93 3.9 37.5 40.6
