178488-11N Rectangular Connector Header 5 Pin High Current Connector
178488-11N Rectangular Connector Header 5 Pin High Current Connector
178488-11N Rectangular Connector Header 5 Pin High Current Connector
178488-11N Rectangular Connector Header 5 Pin High Current Connector
178488-11N Rectangular Connector Header 5 Pin High Current Connector
178488-11N Rectangular Connector Header 5 Pin High Current Connector
Specifications
Model Number :
178488-11N
Sealing :
The plug connector complies with the MIL-DTL-38999M requirements for low-pressure impregnation.
Salt spray resistance :
W class:500h K, TA Class:1000h; F Class:48h/96h; FT Class:96h
Delivery Time :
2-9weeks
Packaging Details :
standard export package
MOQ :
10pcs
Supply Ability :
10000pcs per month
Payment Terms :
L/C,T/T,Western Union
Certification :
AS9001
Dampness and Heat :
According to MIL-DTL-38999M:24 hours 10 cycles
Temperature range :
W Class:-65 ° C to +175 ° C F, K, FT, TA categories:-65 °C to +200 °C
Price :
10$-500$
Brand Name :
Jovelix
Place of Origin :
China
Liquid resistance :
Resistant to various fuels, coolant, and solvents
Description

J1784/18-N Model Naming

178488-11N Rectangular Connector Header 5 Pin High Current Connector

178488-11N Rectangular Connector Header 5 Pin High Current Connector

The connector rear cable clamp and shielding accessory is used to fasten the shielding braid and secure the cable body to the connector rear assembly. It ensures proper electrical connection between the cable shielding mesh and rear accessories, providing reliable electromagnetic shielding and environmental protection.

This accessory is available in various lengths and is suitable for extended-length cable assembly applications, including high-frequency and low-frequency mixed installations. Pre-assembled cables are recommended to ensure stable performance, reliable installation, and consistent shielding effectiveness.

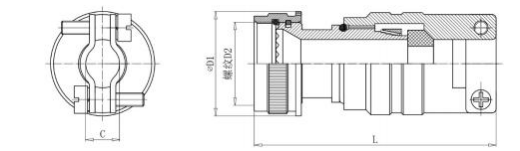

Table 1

Shell Number For each housing number, the wire diameter specification can be selected. D1 Thread D2
09 01~02 16.5 M12*1.0
11 01~03 19.5 M15*1.0
13 02~04 22.5 M18*1.0
15 02~05 26.5 M22*1.0
17 02~06 29.5 M25*1.0
19 03~07 32.5 M28*1.0
21 03~08 36.0 M31*1.0
23 03~09 38.5 M34*1.0
25 04~10 41.7 M37*1.0

Table 2

Line diameter specification number Adaptive cable diameter range C
01 1.57~3.18
02 3.18~6.35
03 6.35~9.53
04 9.53~12.7
05 12.7~15.88
06 15.88~19.05
07 19.05~22.23
08 22.23~25.4
09 25.4~28.58
10 28.58~31.75

Table 3

Shell Number RLE L
09~25 Standard (omitted) 64.1
09~25 A 88.1
15~25 B 113.5
21~25 C 138.9

Straight Accessories(J1784/88 or JY599II-FJA00)

178488-11N Rectangular Connector Header 5 Pin High Current Connector

Shell Size D1 Thread D2 A(02 Cable Exit Holes) A(03 Cable Exit Holes)
09 17.6 M12*1.0 N/A 6.4
11 20.6 M15*1.0 N/A 7.9
13 23.6 M18*1.0 7.9 11.1
15 27.6 M22*1.0 11.1 14.3
17 30.3 M25*1.0 12.7 15.9
19 33.3 M28*1.0 15.9 19.1
21 36.8 M31*1.0 15.9 20.6
23 39.3 M34*1.0 17.5 23.8
25 42.3 M37*1.0 19.1 25.4
Send your message to this supplier
Send Now

178488-11N Rectangular Connector Header 5 Pin High Current Connector

Ask Latest Price
Product Detail
Model Number :
178488-11N
Sealing :
The plug connector complies with the MIL-DTL-38999M requirements for low-pressure impregnation.
Salt spray resistance :
W class:500h K, TA Class:1000h; F Class:48h/96h; FT Class:96h
Delivery Time :
2-9weeks
Packaging Details :
standard export package
MOQ :
10pcs
Contact Supplier
178488-11N Rectangular Connector Header 5 Pin High Current Connector
178488-11N Rectangular Connector Header 5 Pin High Current Connector
178488-11N Rectangular Connector Header 5 Pin High Current Connector

Wuxi Juhuili Technology Development Co., Ltd.

Verified Supplier
1 Years
jiangsu, wuxi
Since 2011
Business Type :
Manufacturer
Main Products :
Russian Connector, Rectangular Connector, Circular Connector
Total Annual :
1000-5000
Employee Number :
100~500
Certification Level :
Verified Supplier
