ITT Cannon Circular 8-Pin Aerospace Plug, MS27508 Connector
ITT Cannon Circular 8-Pin Aerospace Plug, MS27508 Connector
ITT Cannon Circular 8-Pin Aerospace Plug, MS27508 Connector
ITT Cannon Circular 8-Pin Aerospace Plug, MS27508 Connector
ITT Cannon Circular 8-Pin Aerospace Plug, MS27508 Connector
ITT Cannon Circular 8-Pin Aerospace Plug, MS27508 Connector
Specifications
Operating Temperature :
Class B: --65 ˚ C ~ +175 ˚ C; Class E and F: --65 ˚ C ~ +200 ˚ C;
Certification :
AS9001
Working height :
≤ 30480 m
Supply Ability :
10000 pcs per month
Delivery Time :
2--9 weeks
Packaging Details :
standard export package
MOQ :
10PCS
Relative humidity :
At 40 ˚ C, it reaches 98%
Model Number :
MS27508E08B35P
Salt Spray Resistance :
Class B: 500h; Class E: 1000h F category: 48h
Price :
10＄--500＄
Place of Origin :
China
Brand Name :
Jovelix
Payment Terms :
L/C,T/T,Western Union
Description
Product Introduction
Key Features
  • Complies with GJB599B (MIL-DTL-38999M)Series II standard
  • Card-type quick connection
  • 599 The smallest in volume, lightest in weight, and shortest in housing among all series
  • EMI/RFI shielding

The contact pieces are press-fit and detachable; they are not designed for diagonal insertion. In environments with limited space where insertion and removal are inconvenient, it is recommended to install pins in the socket.

Purpose and Application

Purpose: The product is used for circuit signal connection.

Application environment: The electrical connector is a lightweight connector suitable for applications that do not withstand high-intensity vibrations or harsh wind, sand, and moisture conditions.

Basic Mechanical Design Feature

Mechanical Properties: Shell Material: Aluminum alloy, Stainless steel

Coating:

  • Class B: Cadmium-plated mili-tary green
  • Class E: Stainless steel passivation
  • Class F: Chemical nickel plating

Contact piece: Gold-plated copper alloy surface, suitable for crimping, welding, or printed circuit board applications

Mechanical lifespan: 500 cycles

Vibration: Random vibration Frequency 100–1000 Hz Power spectral density 1 g²/Hz

Impact: 3 ms half-sine wave; acceleration peak 300g

Environmental Performance

Operating Temperature: Class B: --65 ˚ C ~ +175 ˚ C; Class E and F: --65 ˚ C ~ +200 ˚ C;

Salt Spray Resistance: Class B: 500h; Class E: 1000h F category: 48h

Relative humidity: At 40 ˚ C, it reaches 98% F category: 48h

Working height: ≤ 30480 m

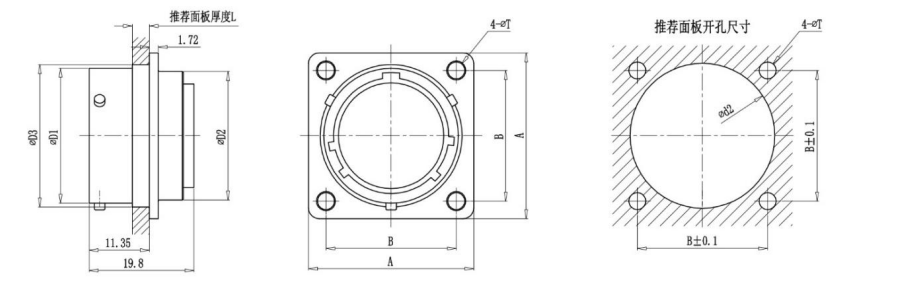

JY27508 Box-type square panel rear-mounted socket
ITT Cannon Circular 8-Pin Aerospace Plug, MS27508 Connector

Shell Size

D1

D2

D3

L max

A

B

T

d1

d2

08

12.00

11.51

13.20

2.0

21.00

15.09

3.2

12.5

14.2

10

15.00

14.68

16.14

2.0

24.10

18.26

3.2

15.5

17.5

12

19.05

17.86

20.50

2.0

26.50

20.62

3.2

19.5

21.3

14

22.23

21.03

23.60

2.0

28.90

23.01

3.2

21.5

25.0

16

25.40

24.21

26.80

2.0

31.21

24.61

3.2

25.0

27.3

18

28.58

26.97

30.00

2.0

33.60

26.97

3.2

28.0

31.3

20

31.75

30.18

33.20

2.5

36.80

29.36

3.2

31.5

34.5

22

34.93

33.32

36.35

2.5

40.00

31.75

3.2

34.5

37.5

24

38.10

36.53

39.50

2.5

43.10

34.93

3.9

37.5

40.6
