D38999/32W11R MIL-DTL-38999 Circular Connector Protective Plug Cover Dust Cap
D38999/32W11R MIL-DTL-38999 Circular Connector Protective Plug Cover Dust Cap
D38999/32W11R MIL-DTL-38999 Circular Connector Protective Plug Cover Dust Cap
D38999/32W11R MIL-DTL-38999 Circular Connector Protective Plug Cover Dust Cap
D38999/32W11R MIL-DTL-38999 Circular Connector Protective Plug Cover Dust Cap
D38999/32W11R MIL-DTL-38999 Circular Connector Protective Plug Cover Dust Cap
Specifications
Certification :
AS9001
F Class :
48h/96h
FT Class :
96h
Packaging Details :
standard export package
Dampness and Heat :
According to MIL-DTL-38999M:24 hours 10 cycles
Temperature range :
W Class:-65 ° C to +175 ° C
Price :
10＄--500＄
Brand Name :
Jovelix
Model Number :
D3899932W11R
Place of Origin :
China
Delivery Time :
2--9 weeks
Liquid resistance :
Resistant to various fuels, coolant, and solvents
MOQ :
10PCS
Sealing :
The plug connector complies with the MIL-DTL-38999M requirements for low-pressure impregnation
K, TA Class :
1000h
F, K, FT, TA categories :
-65 °C to +200 °C
Payment Terms :
L/C,T/T,Western Union
Salt spray resistance :
W class:500h
Supply Ability :
10000 pcs per month
Description
Plug / Receptacle Sealing Caps

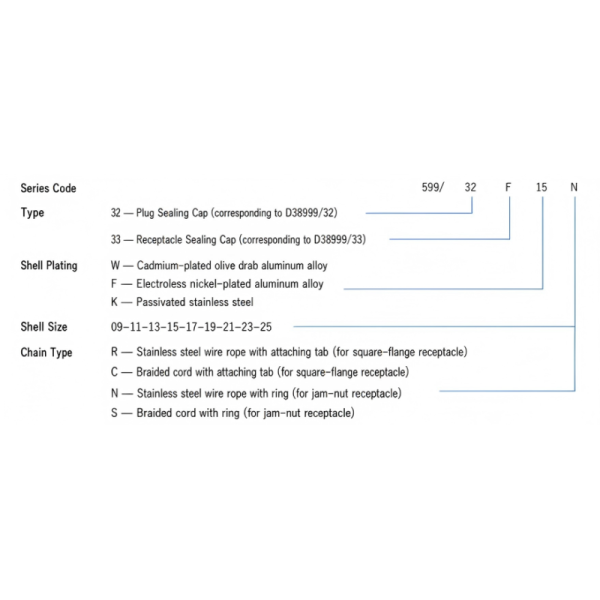

Model Designation:
D38999/32W11R MIL-DTL-38999 Circular Connector Protective Plug Cover Dust Cap

Note: Sealing caps shall be ordered separately and are not supplied with the connector.

Customization is available upon request.

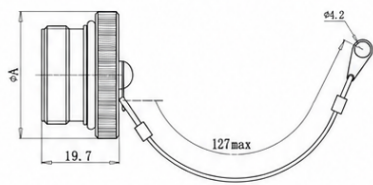

Overall Dimensions

Plug Sealing Cap: J599/32 (D38999/32)

Class C

D38999/32W11R MIL-DTL-38999 Circular Connector Protective Plug Cover Dust Cap D38999/32W11R MIL-DTL-38999 Circular Connector Protective Plug Cover Dust Cap

Receptacle Sealing Cap: J599/33(D38999/33)

Class C

D38999/32W11R MIL-DTL-38999 Circular Connector Protective Plug Cover Dust Cap D38999/32W11R MIL-DTL-38999 Circular Connector Protective Plug Cover Dust Cap
Shell Number 09 11 13 15 17 19 21 23 25
A 22.5 26.5 29.5 32.5 36 38.4 41.7 44.4 48.3
B min 12.92 17.78 19.27 22.6 25.62 28.95 31.97 34.03 38.32
C 22.5 26.5 29.5 32.5 36 38.4 41.7 44.4 48.3
D min 17.78 21.33 25.62 28.95 31.97 35.3 38.32 41.65 44.45
