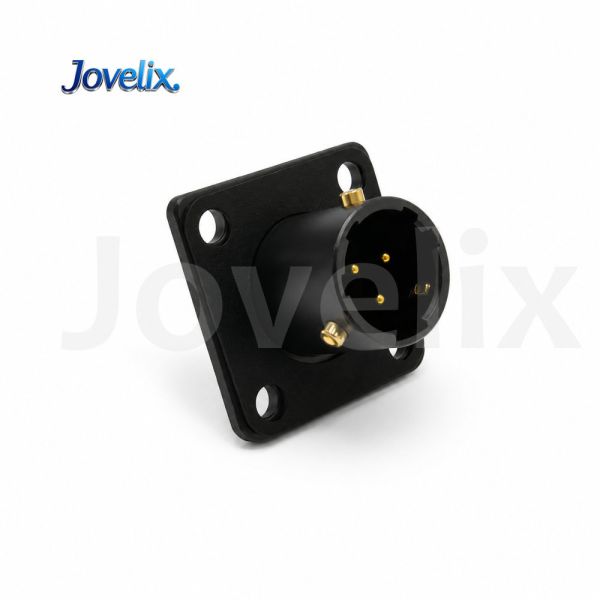

MS3112E8-33P Male 3 Position Flange Mount Circular Connector Receptacle
MS3112E8-33P Male 3 Position Flange Mount Circular Connector Receptacle
MS3112E8-33P Male 3 Position Flange Mount Circular Connector Receptacle
MS3112E8-33P Male 3 Position Flange Mount Circular Connector Receptacle
MS3112E8-33P Male 3 Position Flange Mount Circular Connector Receptacle
MS3112E8-33P Male 3 Position Flange Mount Circular Connector Receptacle
Specifications
Brand Name :
Jovelix
Durability :
≥ 500 cycles
Supply Ability :
10000 pcs per month
Place of Origin :
China
Certification :
AS9001
Payment Terms :
L/C,T/T,Western Union
Random vibration :
Frequency 10Hz ~ 2000Hz at 147 m/s2
Delivery Time :
2--9 weeks
Operating temperature range :
-55 oC ~ +125 oC
Packaging Details :
standard export package
MOQ :
10PCS
Model Number :
MS3112E8-33P
Shock :
Max acceleration 490 m/s2
Price :
10＄--500＄
Environmental seal :
≤ 4.6×102 Pa ·cm3/s
Shell Material :
Aluminium-alloy, copper-alloy or stainless-steel
Corrosion resistance :
Class L withstand 48 hours salt spray and others withstand 500 hours salt spray
Description
MIL-C-26482 Series I Quick Bayonet Circular Electrical Connector

The MIL-C-26482 Series I Quick Bayonet Circular Electrical Connector is a small-size, medium-density connector designed for reliable electrical interconnection in commercial, mili-tary, and aerospace systems. It features quick bayonet locking, solder contacts, durable shell materials, and flexible contact arrangements for different application needs.

This series offers 3 shell material options, 9 shell sizes, 4 finishes, 6 plug styles, 18 receptacle mounting styles, 3 contact types, and more than 30 contact layouts. Shell materials include aluminum alloy, copper alloy, and stainless steel, allowing users to choose the right configuration based on weight, corrosion resistance, mechanical strength, and installation requirements.

With an operating temperature range of -55°C to +125°C, environmental sealing of ≤4.6 * 10² Pa·cm³/s, shock resistance up to 490 m/s², random vibration resistance from 10 Hz to 2000 Hz at 147 m/s², and a mechanical life of 500+ mating cycles, this connector series is ideal for high-reliability signal and power connection applications.

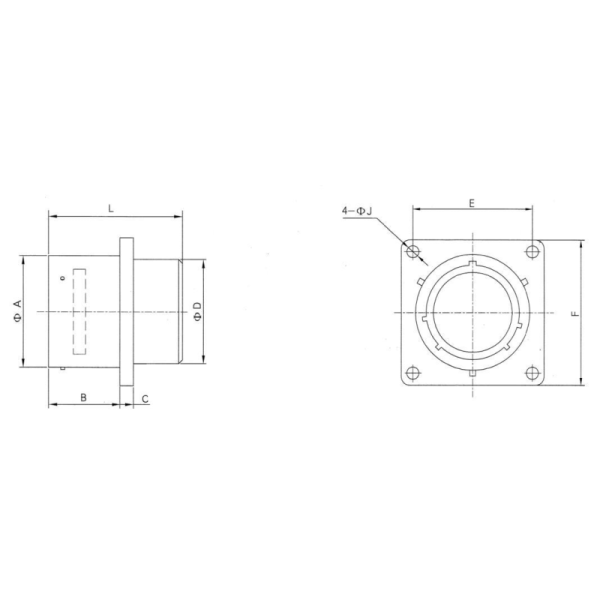

Box square flange receptacle (MS3112E)
MS3112E8-33P Male 3 Position Flange Mount Circular Connector Receptacle
Shell No. L (max) A B (max) C (max) D (max) E (max) F (max) J (max)
8 21 12.04 11.70 1.7 10.84 15.09 20.99 3.2
10 21 15.00 11.70 1.7 13.99 18.26 24.19 3.2
12 21 19.07 11.70 1.7 17.37 20.62 26.54 3.2
14 21 22.25 11.70 1.7 20.57 23.00 28.89 3.2
16 21 25.43 11.70 1.7 23.72 24.61 31.29 3.2
18 21 28.60 11.70 1.7 26.69 26.97 33.69 3.2
20 23 31.78 14.35 2.5 29.89 29.36 36.89 3.2
22 23 34.95 14.35 2.5 33.04 31.75 39.99 3.2
24 23 38.13 15.20 2.5 36.24 34.92 43.15 3.8
