J599-33F-09 D38999 Series III Circular Connector Plug Socket Protective Seal Cover Accessory
J599-33F-09 D38999 Series III Circular Connector Plug Socket Protective Seal Cover Accessory
J599-33F-09 D38999 Series III Circular Connector Plug Socket Protective Seal Cover Accessory
J599-33F-09 D38999 Series III Circular Connector Plug Socket Protective Seal Cover Accessory
J599-33F-09 D38999 Series III Circular Connector Plug Socket Protective Seal Cover Accessory
J599-33F-09 D38999 Series III Circular Connector Plug Socket Protective Seal Cover Accessory
Specifications
Payment Terms :
L/C,T/T,Western Union
Liquid resistance :
Resistant to various fuels, coolant, and solvents
Temperature range :
W Class:-65 ° C to +175 ° C F, K, FT, TA categories:-65 °C to +200 °C
Contact material :
Gold-plated copper alloy, available in crimped, welded, and printed circuit board types.
Place of Origin :
China
Price :
10＄--500＄
Salt spray resistance :
W class:500h K, TA Class:1000h; F Class:48h/96h; FT Class:96h
Delivery Time :
2--9 weeks
At ambient temperature :
Frequency range 100 to 1000 Hz, power spectral density 5 g ²/Hz, corresponding root mean square value 49.5 g
Sealing :
The plug connector complies with the MIL-DTL-38999M requirements for low-pressure impregnation.
Vibration :
Sine wave:60g, with temperature cycling and simulation (36h)
Dampness and Heat :
According to MIL-DTL-38999M:24 hours 10 cycles
Insulation resistance :
≥ 5000M Ω (500VDC)
MOQ :
10PCS
Impact :
3ms half-sine wave; acceleration peak 300g
Supply Ability :
10000 pcs per month
Electromagnetic interference shielding :
At 100 MHz to 1 GHz, the minimum attenuation is 85 dB(Class F, Class W). At 1GHz to 10GHz, the minimum attenuation is 65dB (F class) and 50dB (W class)
Mechanical lifespan :
500 insertion and removal cycles
Brand Name :
Jovelix
Model Number :
J599-33F-09
Shell conductivity :
W class:2.5m Ω F;FT class:1.0m Ω K;TA class:10m Ω
Certification :
AS9001
At high temperatures :
frequency 100 to 1000 Hz, power spectral density 1 g 2/Hz, corresponding root mean square value 41.7 g
Packaging Details :
standard export package
Description

J599-33F-09 Connector Sealing Cover is a protective accessory designed for J599 series circular connectors. It is used to protect the connector receptacle interface when the connector is not mated, helping prevent dust, moisture, oil, sand, and foreign particles from entering the mating area.

The cover helps protect the connector thread, sealing surface, and contact cavity during storage, transportation, installation, and field maintenance. Its rugged metal structure provides reliable mechanical protection, while the internal sealing gasket improves environmental sealing performance.

The outer knurled surface allows easy manual tightening and removal. A stainless steel safety wire can be supplied to help prevent the cover from being lost during operation or maintenance.

For model J599-33F-09, the standard finish is F Class electroless nickel plating, offering good corrosion resistance, wear resistance, and electrical conductivity.

Other finish options for the same series can be supplied upon request:

  • W Class: Green protective plating
  • F Class: Electroless nickel plating
  • K Class: Passivated stainless steel

This product is suitable for industrial equipment, communication devices, testing instruments, automation systems, vehicle electronics, and other high-reliability connector applications.

J599-33F-09 D38999 Series III Circular Connector Plug Socket Protective Seal Cover Accessory

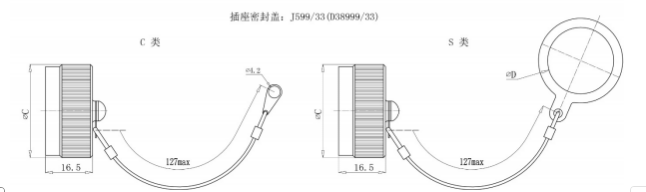

Shell Number 09 11 13 15 17 19 21 23 25
A 22.5 26.5 29.5 32.5 36 38.4 41.7 44.4 48.3
B min 12.92 17.78 19.27 22.6 25.62 28.95 31.97 34.03 38.32
C 22.5 26.5 29.5 32.5 36 38.4 41.7 44.4 48.3
D min 17.78 21.33 25.62 28.95 31.97 35.3 38.32 41.65 44.45
