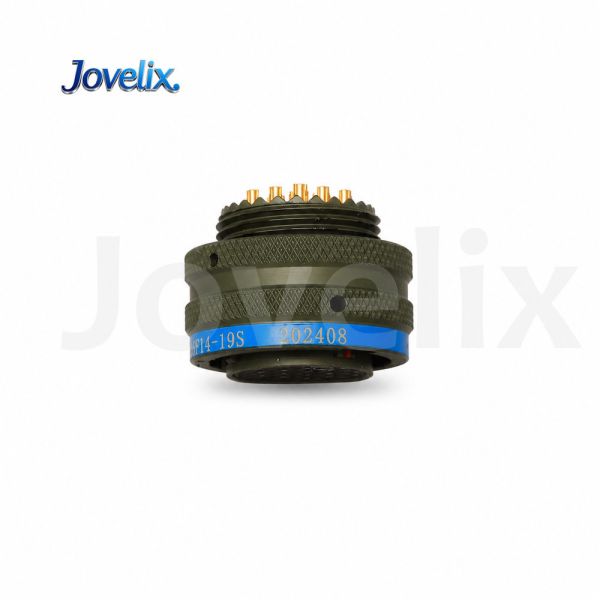

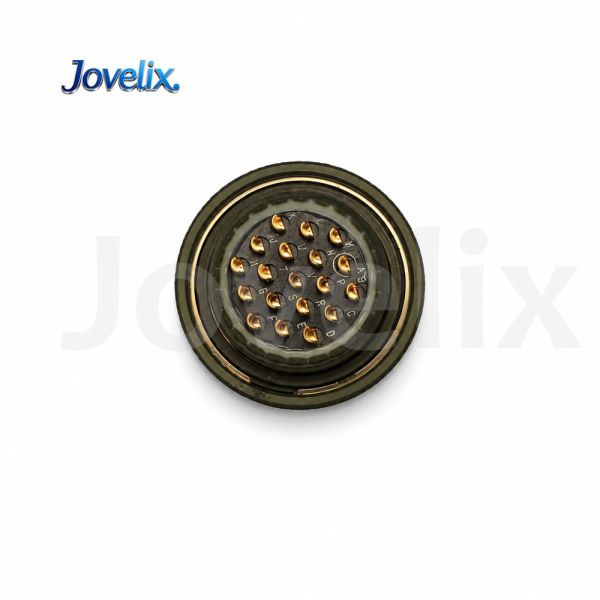

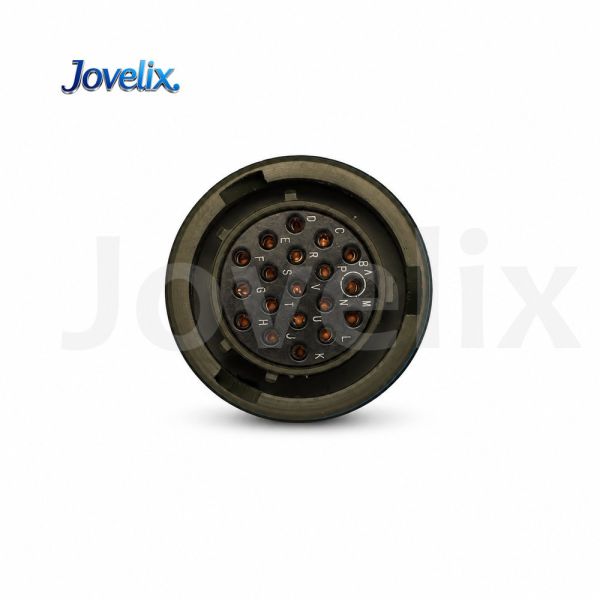

MS3116F14-19S Sealed Circular Electrical Connector
MS3116F14-19S Sealed Circular Electrical Connector
MS3116F14-19S Sealed Circular Electrical Connector
MS3116F14-19S Sealed Circular Electrical Connector
MS3116F14-19S Sealed Circular Electrical Connector
MS3116F14-19S Sealed Circular Electrical Connector
Specifications
Place of Origin :
China
Delivery Time :
2--9 weeks
Environmental seal :
≤ 4.6×102 Pa ·cm3/s
Model Number :
MS3116F14-19S
Shock :
Max acceleration 490 m/s2
Supply Ability :
10000 pcs per month
Brand Name :
Jovelix
Certification :
AS9001
MOQ :
10PCS
Packaging Details :
standard export package
Corrosion resistance :
Class L withstand 48 hours salt spray and others withstand 500 hours salt spray
Durability :
≥ 500 cycles
Shell Material :
Aluminium-alloy, copper-alloy or stainless-steel
Price :
10＄--500＄
Operating temperature range :
-55 oC ~ +125 oC
Random vibration :
Frequency 10Hz ~ 2000Hz at 147 m/s2
Payment Terms :
L/C,T/T,Western Union
Description
Quick Bayonet Circular Connector for Rugged Electronic Systems

The MIL-C-26482 Series I Circular Connector is developed for systems that require compact size, quick connection, and dependable performance in harsh operating conditions. Its bayonet coupling structure enables rapid mating and unmating, while solder contacts provide stable electrical termination for medium-density circuit layouts.

To meet different environmental and mechanical requirements, the connector can be supplied with aluminum alloy, copper alloy, or stainless-steel shells, along with multiple finish options, plug styles, receptacle mounting styles, contact types, and contact layouts. This wide configuration range makes the series suitable for both standard equipment platforms and customized interconnect designs.

The connector delivers reliable performance under temperature extremes, vibration, shock, and corrosive environments. It operates within -55°C to +125°C, offers durability of ≥500 cycles, and provides corrosion resistance of 48 hours salt spray for Class L and up to 500 hours salt spray for other finish classes. It is widely used in aerospace equipment, mili-tary electronics, commercial systems, communication devices, and rugged industrial applications.

MS3116F14-19S Sealed Circular Electrical Connector

MS3116F14-19S Sealed Circular Electrical Connector
