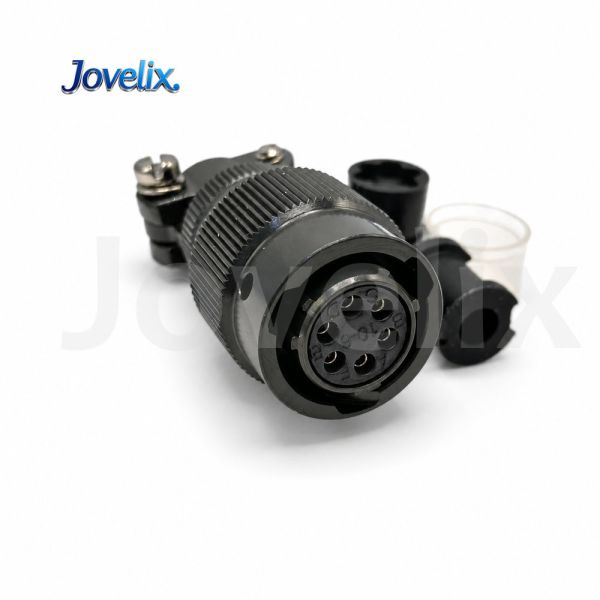

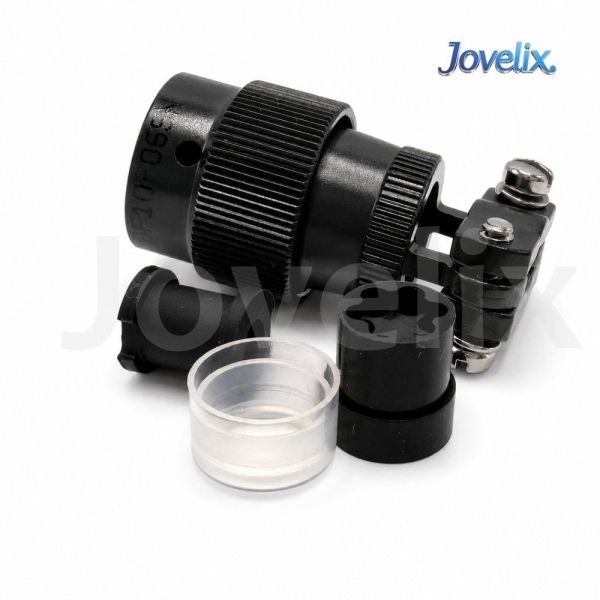

MS3116F10-6S 6Pin Female Straight Circular Connector Plug
MS3116F10-6S 6Pin Female Straight Circular Connector Plug
MS3116F10-6S 6Pin Female Straight Circular Connector Plug
MS3116F10-6S 6Pin Female Straight Circular Connector Plug
MS3116F10-6S 6Pin Female Straight Circular Connector Plug
MS3116F10-6S 6Pin Female Straight Circular Connector Plug
Specifications
Durability :
≥ 500 cycles
Environmental seal :
≤ 4.6×102 Pa ·cm3/s
Delivery Time :
2--9 weeks
Random vibration :
Frequency 10Hz ~ 2000Hz at 147 m/s2
Certification :
AS9001
Brand Name :
Jovelix
Place of Origin :
China
Supply Ability :
10000 pcs per month
Packaging Details :
standard export package
Corrosion resistance :
Class L withstand 48 hours salt spray and others withstand 500 hours salt spray
Price :
10＄--500＄
Shell Material :
Aluminium-alloy, copper-alloy or stainless-steel
Shock :
Max acceleration 490 m/s2
Model Number :
MS3116F10-6S
Payment Terms :
L/C,T/T,Western Union
MOQ :
10PCS
Operating temperature range :
-55 oC ~ +125 oC
Description
MIL-C-26482 Series I Quick Bayonet Circular Electrical Connector

The MIL-C-26482 Series I Quick Bayonet Circular Electrical Connector is a small-size, medium-density connector designed for reliable signal and power interconnection. It features quick bayonet locking, solder contacts, flexible contact layouts, and durable shell options for high-reliability electrical systems.

This circular connector series is available in 9 shell sizes, 4 surface finishes, 6 plug styles, 18 receptacle mounting styles, 3 contact types, and more than 30 contact arrangements. Shell materials include aluminum alloy, copper alloy, and stainless steel, offering flexible choices for different application environments.

The connector provides excellent mechanical and environmental performance, including an operating temperature range of -55°C to +125°C, durability of ≥500 mating cycles, shock resistance up to 490 m/s², and random vibration resistance from 10 Hz to 2000 Hz at 147 m/s². It is widely used in commercial systems, mili-tary equipment, aerospace platforms, industrial control systems, and high-reliability electronic devices.

Straight plug (MS3116F)
MS3116F10-6S 6Pin Female Straight Circular Connector Plug
Shell No. 8 10 12 14 16 18 20 22 24
L (max) 48.0 48.0 48.0 48.0 51.0 51.0 52.0 52.0 52.0
A (max) 19.0 21.0 26.0 28.5 31.0 35.0 39.0 42.0 45.0
D (max) 19.9 21.5 24.0 27.8 29.4 35.3 35.3 41.1 42.4
G (max) 3.5 5.0 8.2 10.0 13.0 16.0 16.0 19.3 20.6
