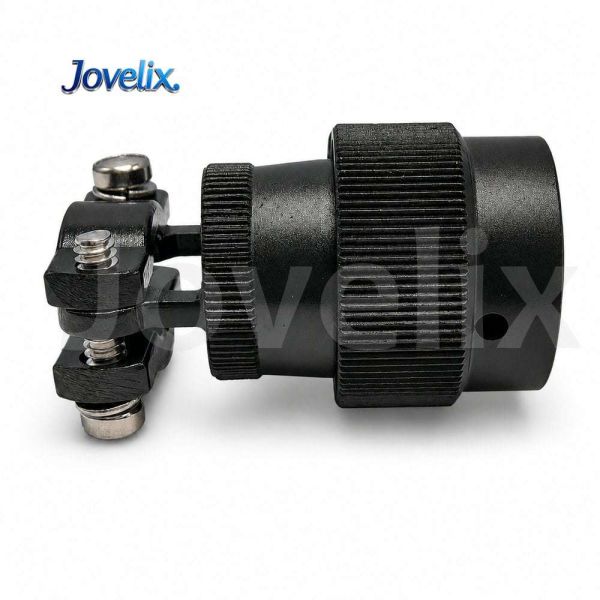

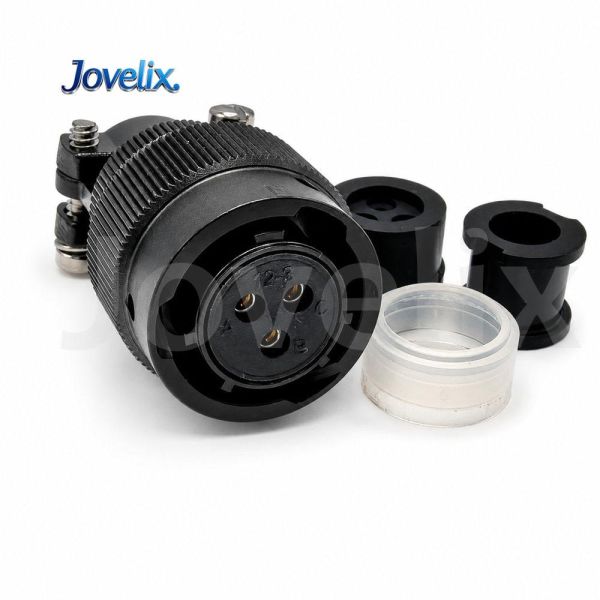

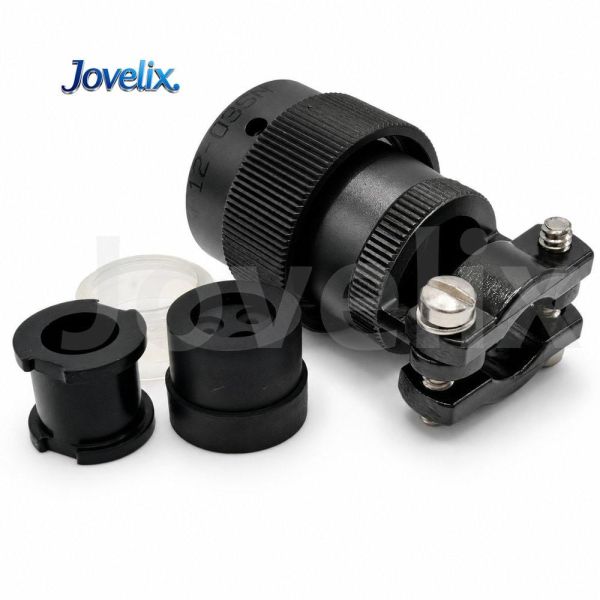

MS3116F12-3S 3Pin Female Straight Circular Connector Plug
MS3116F12-3S 3Pin Female Straight Circular Connector Plug
MS3116F12-3S 3Pin Female Straight Circular Connector Plug
MS3116F12-3S 3Pin Female Straight Circular Connector Plug
MS3116F12-3S 3Pin Female Straight Circular Connector Plug
MS3116F12-3S 3Pin Female Straight Circular Connector Plug
Specifications
Shell Material :
Aluminium-alloy, copper-alloy or stainless-steel
Place of Origin :
China
Delivery Time :
2--9 weeks
Corrosion resistance :
Class L withstand 48 hours salt spray and others withstand 500 hours salt spray
Operating temperature range :
-55 oC ~ +125 oC
MOQ :
10PCS
Packaging Details :
standard export package
Supply Ability :
10000 pcs per month
Random vibration :
Frequency 10Hz ~ 2000Hz at 147 m/s2
Shock :
Max acceleration 490 m/s2
Certification :
AS9001
Brand Name :
Jovelix
Payment Terms :
L/C,T/T,Western Union
Environmental seal :
≤ 4.6×102 Pa ·cm3/s
Model Number :
MS3116F12-3S
Price :
10＄--500＄
Durability :
≥ 500 cycles
Description
Configurable MIL-C-26482 Series I Circular Connector

Designed for flexible system integration, the MIL-C-26482 Series I Connector combines compact size, quick bayonet coupling, and solder contact reliability in one circular connector platform. The series supports a wide range of configurations, including 3 shell materials, 9 shell sizes, 4 finishes, 6 plug styles, 18 receptacle mounting styles, 3 contact types, and 30+ contact layouts.

This broad configurability allows engineers to match connector selection with specific installation space, environmental conditions, and circuit requirements. Operating from -55°C to +125°C, the connector provides dependable performance for aerospace systems, mili-tary equipment, industrial electronics, and commercial electronic platforms.

Performance specifications

Operating temperature range:-55 oC ~ +125 oC

Shell Material:Aluminium-alloy, copper-alloy or stainless-steel

Corrosion resistance:Class L withstand 48 hours salt spray and others withstand 500 hours salt spray

Environmental seal:≤ 4.6*102 Pa ·cm3/s

Durability:≥ 500 cycles

Shock:Max acceleration 490 m/s2

Random vibration:Frequency 10Hz ~ 2000Hz at 147 m/s2

Straight plug (MS3116F)
MS3116F12-3S 3Pin Female Straight Circular Connector Plug
Shell No. 8 10 12 14 16 18 20 22 24
L (max) 48.0 48.0 48.0 48.0 51.0 51.0 52.0 52.0 52.0
A (max) 19.0 21.0 26.0 28.5 31.0 35.0 39.0 42.0 45.0
D (max) 19.9 21.5 24.0 27.8 29.4 35.3 35.3 41.1 42.4
G (max) 3.5 5.0 8.2 10.0 13.0 16.0 16.0 19.3 20.6
