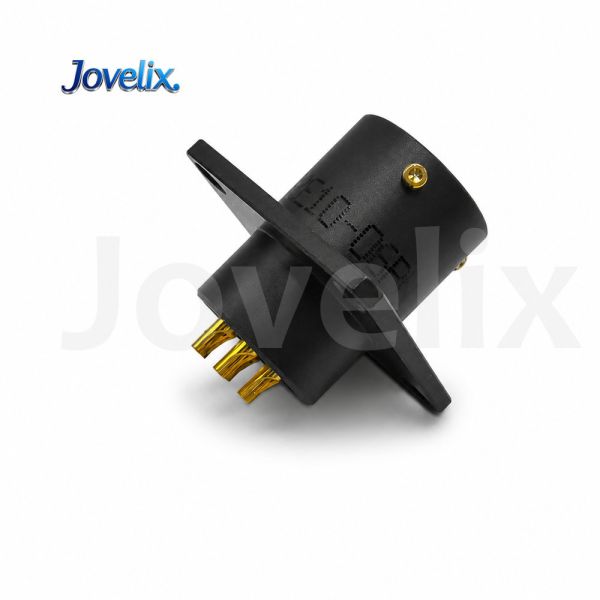

MS3112E10-6P 6 Contact Panel Mount Circular Connector Socket MIL-DTL-26482
MS3112E10-6P 6 Contact Panel Mount Circular Connector Socket MIL-DTL-26482
MS3112E10-6P 6 Contact Panel Mount Circular Connector Socket MIL-DTL-26482
MS3112E10-6P 6 Contact Panel Mount Circular Connector Socket MIL-DTL-26482
MS3112E10-6P 6 Contact Panel Mount Circular Connector Socket MIL-DTL-26482
MS3112E10-6P 6 Contact Panel Mount Circular Connector Socket MIL-DTL-26482
Specifications
Place of Origin :
China
Payment Terms :
L/C,T/T,Western Union
Model Number :
MS3112E10-6P
Brand Name :
Jovelix
Certification :
AS9001
Random vibration :
Frequency 10Hz ~ 2000Hz at 147 m/s2
Corrosion resistance :
Class L withstand 48 hours salt spray and others withstand 500 hours salt spray
Delivery Time :
2--9 weeks
Packaging Details :
standard export package
Shell Material :
Aluminium-alloy, copper-alloy or stainless-steel
Shock :
Max acceleration 490 m/s2
Supply Ability :
10000 pcs per month
Operating temperature range :
-55 oC ~ +125 oC
Durability :
≥ 500 cycles
Price :
10＄--500＄
Environmental seal :
≤ 4.6×102 Pa ·cm3/s
MOQ :
10PCS
Description
MIL-C-26482 Series I Circular Connector

The MIL-C-26482 Series I Circular Connector is a compact, medium-density circular electrical connector designed with quick bayonet coupling and solder contact termination. It provides fast mating, secure locking, and reliable electrical performance for applications requiring stable signal and power transmission.

This connector series is available in multiple configurations, including aluminum alloy, copper alloy, and stainless-steel shell options, 9 shell sizes, 4 surface finishes, 6 plug styles, 18 receptacle mounting styles, 3 contact types, and more than 30 contact arrangements. These flexible combinations allow users to select suitable connector solutions for different installation and circuit requirements.

Engineered for demanding environments, the series operates from -55°C to +125°C, supports 500 or more mating cycles, and withstands shock acceleration up to 490 m/s². With environmental sealing performance of ≤4.6 * 10² Pa·cm³/s and random vibration resistance from 10 Hz to 2000 Hz at 147 m/s², it is suitable for commercial, mili-tary, aerospace, and industrial electronic systems.

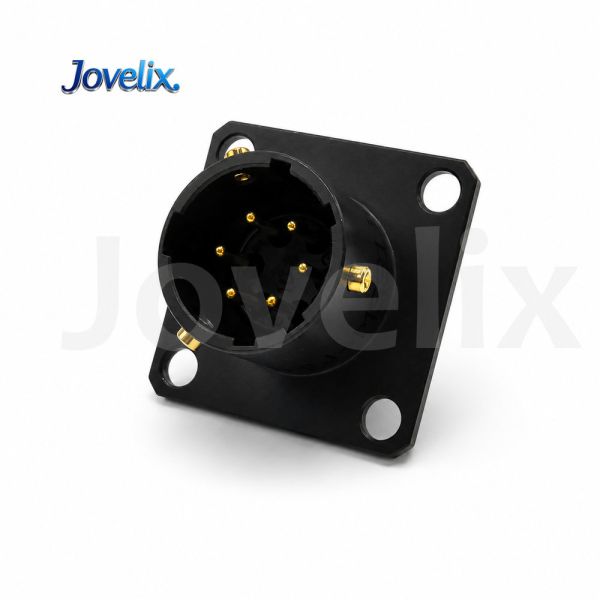

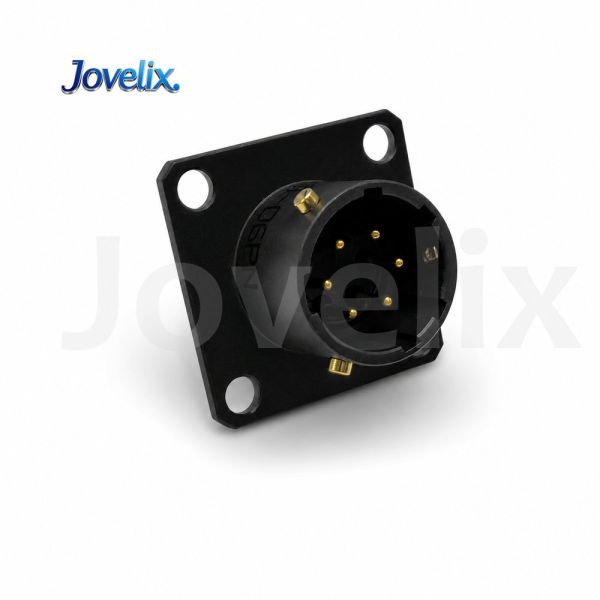

Box square flange receptacle (MS3112E)
MS3112E10-6P 6 Contact Panel Mount Circular Connector Socket MIL-DTL-26482
MS3112E10-6P 6 Contact Panel Mount Circular Connector Socket MIL-DTL-26482
