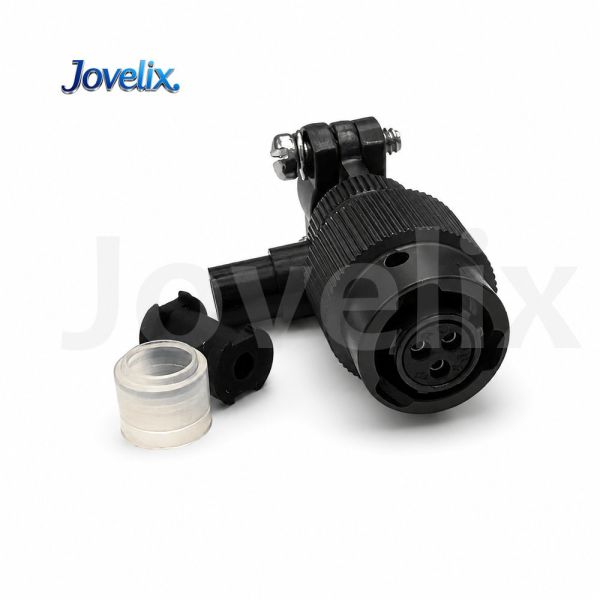

MS3116F8-33S 3 Pin Female Circular Connector Plug MIL-DTL-26482 Series I
MS3116F8-33S 3 Pin Female Circular Connector Plug MIL-DTL-26482 Series I
MS3116F8-33S 3 Pin Female Circular Connector Plug MIL-DTL-26482 Series I
MS3116F8-33S 3 Pin Female Circular Connector Plug MIL-DTL-26482 Series I
MS3116F8-33S 3 Pin Female Circular Connector Plug MIL-DTL-26482 Series I
MS3116F8-33S 3 Pin Female Circular Connector Plug MIL-DTL-26482 Series I
Specifications
Operating temperature range :
-55 oC ~ +125 oC
Certification :
AS9001
Durability :
≥ 500 cycles
Supply Ability :
10000 pcs per month
Corrosion resistance :
Class L withstand 48 hours salt spray and others withstand 500 hours salt spray
Shell Material :
Aluminium-alloy, copper-alloy or stainless-steel
Place of Origin :
China
Model Number :
MS3116F8-33S
Packaging Details :
standard export package
Environmental seal :
≤ 4.6×102 Pa ·cm3/s
Delivery Time :
2--9 weeks
Brand Name :
Jovelix
Payment Terms :
L/C,T/T,Western Union
Shock :
Max acceleration 490 m/s2
Random vibration :
Frequency 10Hz ~ 2000Hz at 147 m/s2
MOQ :
10PCS
Price :
10＄--500＄
Description
MIL-C-26482 Series I Bayonet Circular Connector

The MIL-C-26482 Series I Bayonet Circular Connector is built for applications where compact design, quick connection, and environmental durability are critical. Its bayonet coupling structure enables rapid connection and disconnection, while solder contacts provide stable electrical termination for medium-density circuit layouts.

The connector is available with aluminum alloy, copper alloy, or stainless-steel shells, and supports multiple finishes and mounting styles to meet diverse system requirements. It operates reliably from -55°C to +125°C, withstands shock up to 490 m/s², random vibration from 10 Hz to 2000 Hz at 147 m/s², and provides corrosion resistance with salt spray performance up to 500 hours depending on finish class.

Straight plug (MS3116F)
MS3116F8-33S 3 Pin Female Circular Connector Plug MIL-DTL-26482 Series I
MS3116F8-33S 3 Pin Female Circular Connector Plug MIL-DTL-26482 Series I
