M83723-83G12122 Circular Connector Receptacle 12 Position High Density Connector
M83723-83G12122 Circular Connector Receptacle 12 Position High Density Connector
M83723-83G12122 Circular Connector Receptacle 12 Position High Density Connector
M83723-83G12122 Circular Connector Receptacle 12 Position High Density Connector
M83723-83G12122 Circular Connector Receptacle 12 Position High Density Connector
M83723-83G12122 Circular Connector Receptacle 12 Position High Density Connector
Specifications
Model Number :
M83723-83G12122
Place of Origin :
China
Brand Name :
Jovelix
Payment Terms :
L/C,T/T,Western Union
Relative humidity :
95%～98% at20±5℃
Salt spray resistance :
500 hours or 48 hours
MOQ :
10pcs
Delivery Time :
2-9weeks
RF Interference Shielding :
65dB @ 100MHz
Ambient Temperature :
-65℃ ~ 200℃; -65 ℃~ 260 ℃(Sealed)
Packaging Details :
standard export package
Price :
10$-500$
Certification :
AS9001
Enterprise Standard No. :
Q/3E20029-2007
Air tightness :
1 atmospheric pressure differential
Supply Ability :
10000pcs per month
Insulation Resistance :
≥5000MΩ under normal conditions;Humid and hot condition: ≥ 100 MΩ
Description
ZH83723 Series Electrical Connectors

GJB4337-2002 (MIL-C-83723E)

Product Introduction:

This series of products fully complies with the technical requirements of GJB4337-2002 (MIL-C-83723E) for Class A, K, R and Y.

This product series is widely applicable to electrical connectors used in aviation, aerospace and other electronic equipment.

M83723-83G12122 Circular Connector Receptacle 12 Position High Density Connector

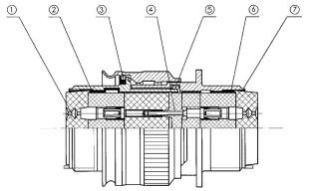

Key Features:
  1. The self-sealing wire seal with three ribbed holes provides reliable sealing and prevents moisture from entering the interior of the connector.
  2. The combined insulator is bonded to the shell by means of adhesive injection.
  3. The self-locking mechanism prevents mated connectors from loosening and disengaging.
  4. The interface seal ensures reliable interface sealing after connector assembly.
  5. The "O"-type ensures reliable circumferential sealing of mated connectors.
  6. The combined insulator is bonded to the shell by means of adhesive injection.
  7. Three teeth on the rear end of the shell prevent rotation of the cable clamp plate, and the nut compresses the insulator to achieve reliable sealing for each single wire.
disaster working Conditional I Conditional ŸII contact parts 20 16 12
sea level 1500 2300 Contact Resistance(mΩ) 7.4 3.8 2.2
15000m 500 750 Rated Current (A) 7.5 13 23
21000m 375 500
33000m 200 200 Note: Conditions I and II correspond to the hole arrangement of the insulator.
