J63A-212-009-161-JC Ultra Miniature Rectangular Electrical Connector Lightweight Reliable
J63A-212-009-161-JC Ultra Miniature Rectangular Electrical Connector Lightweight Reliable
J63A-212-009-161-JC Ultra Miniature Rectangular Electrical Connector Lightweight Reliable
J63A-212-009-161-JC Ultra Miniature Rectangular Electrical Connector Lightweight Reliable
J63A-212-009-161-JC Ultra Miniature Rectangular Electrical Connector Lightweight Reliable
J63A-212-009-161-JC Ultra Miniature Rectangular Electrical Connector Lightweight Reliable
Specifications
Model Number :
J63A-212-009-161-JC
Payment Terms :
L/C,T/T,Western Union
Ambient temperature :
-55°C to +125°C
vibration :
10 Hz to 2000 Hz, 196 m/s ²
Impact :
980 m/s² for 6 ms
Dielectric Withstanding Voltage :
250 V
Packaging Details :
standard export package
Brand Name :
Jovelix
Contact Resistance :
21mΩ
Overall RMS Acceleration :
23.1 G
Rated current :
1A
Certification :
AS9001
Insulation Resistance :
5000MΩ 100VDC
Supply Ability :
10000pcs per month
MOQ :
10PCS
Mechanical Service Life :
200 mating cycles
Place of Origin :
China
Delivery Time :
2--9 weeks
Price :
10＄--500＄
Description
J63A Series Ultra-Miniature Rectangular Electrical Connector

The J63A Series Ultra-Miniature Rectangular Electrical Connector is designed for high-density and lightweight electrical circuit interconnection. It uses stranded elastic twisted-pin contacts with a 0.635 mm pitch, offering compact size, stable contact performance, and reliable electrical connectivity.

The series is available in 5, 9, 15, 21, 25, 31, 37, 51, 65, 69, and 85-pin configurations, supporting flexible selection for different miniaturized system requirements. With a crimped wire cross-sectional area of 0.035 mm², it is suitable for compact wiring layouts and high-density electronic equipment.

The plug and socket are locked by a screw-and-nut mechanism, ensuring secure mating, smooth insertion and extraction, and reliable connection stability. The J63A Series is ideal for applications requiring miniaturization, lightweight design, high-density wiring, and high-reliability interconnection.

Technical Specifications
Ambient temperature: -55°C to +125°C
Contact Resistance: 21mΩ
Vibration: 10 Hz to 2000 Hz, 196 m/s²
Insulation Resistance: 5000MΩ 100VDC
Impact: 980 m/s² for 6 ms
Dielectric Withstanding Voltage: 250 V
Rated current: 1A
Mechanical Service Life: 200 mating cycles
Random Vibration:
Overall RMS Acceleration: 23.1 G
Power Spectral Density: 0.4G²/Hz

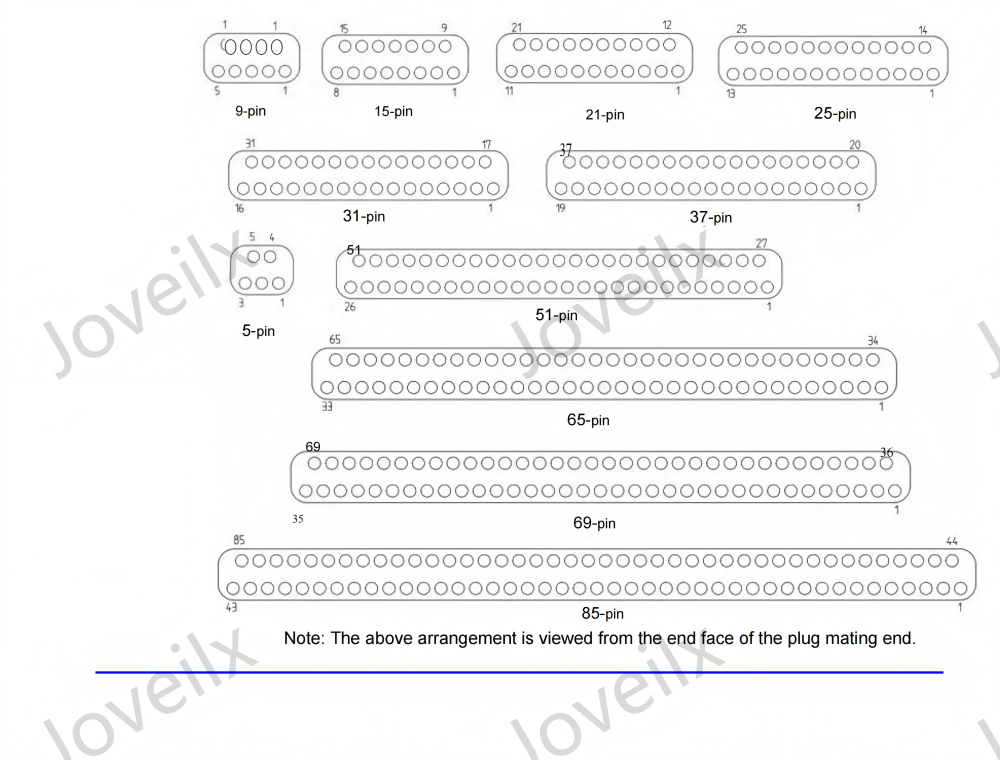

Genealogy Arrangement
