small business facial tissue machines price
Main Features:

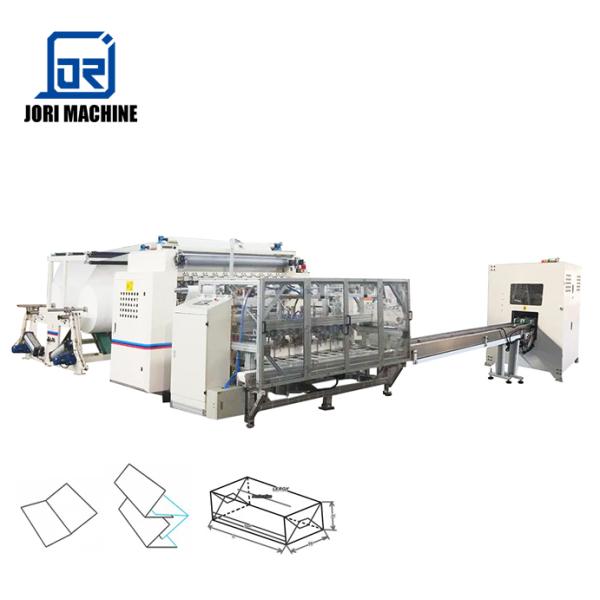

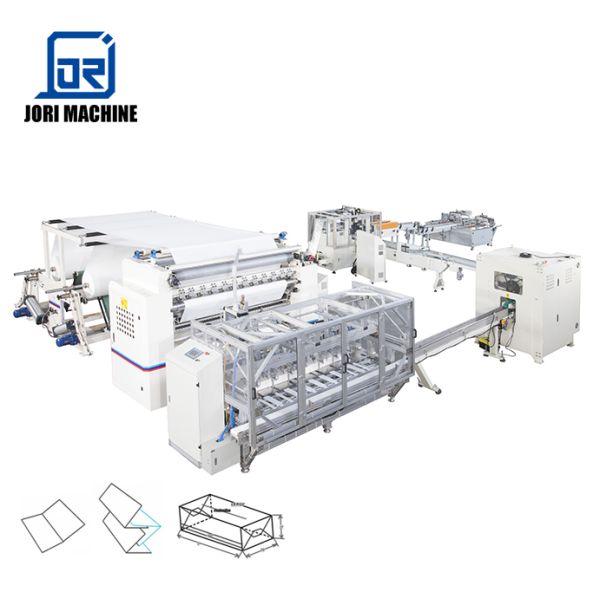

Box-drawing facial tissue machine use jumbo roll to process and fold into "V" type of paper. The machine adopts the vaccum
adsorption principle and auxiliary manipulator folding.
1. Automatic counting points a whole row output;
2. Helical balde shear, vacuum adsorption folding;
3. Stepless speed regulation unwind, It can adjust to use for high or low tension paper material;
4. Adopt PLC computer programming control, pneumatic lifting for jumbo roll, easy for operation;
5. Frequency conversion contrtol, save energy;
6. The width of paper can be adjustable, to meet different market requirement;
7. Supporting paper rolling pattern device and edge rolling device, Pattern is obvious, flexible to meet market demand. (Pattern
selected by customers)
8. It can make "V" type single layer towel and two layers glue lamination.(Optional)
Name | Specification | ||||||||
Production rate: | 60~80 meters/minute per line | ||||||||
Product unfold size (mm): | 180(length) x130-210 (adjustable width) | ||||||||
190(length) x130-210 (adjustable width) | |||||||||
200(length) x130-210 (adjustable width) | |||||||||
Folding proucts size (mm): | 90(length) x130-210 (adjustable width) | ||||||||
95(length) x130-210 (adjustable width) | |||||||||
100(length) x130-210 (adjustable width) | |||||||||
Max. jumbo roll width: | 2L | 3L | 4L | 5L | 6L | ||||
420mm | 630mm | 840mm | 1050mm | 1260mm | |||||
Max. jumbo roll width: | 1100mm (other sizes can be specify) | ||||||||
Main motor power: | 2L | 3L | 4L | 5L | 6L | ||||
3.0kw | 3.0kw | 4.0kw | 5.5kw | 5.5kw | |||||
Vacuum blower power: | 2L | 3L | 4L | 5L | 6L | ||||
7.5kw | 11kw | 15kw | 15kw | 22kw | |||||
Embossing unit: | Steel to rubber rollers, (steel yo steel embossing need customized) | ||||||||
Edge embossing unit: | Steel to steel rollers | ||||||||

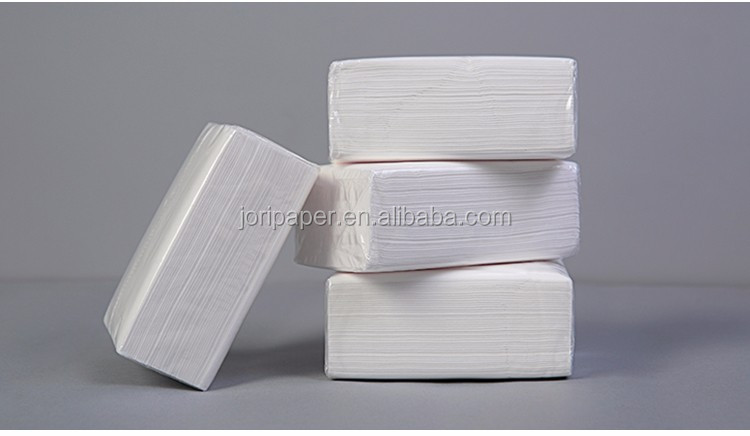

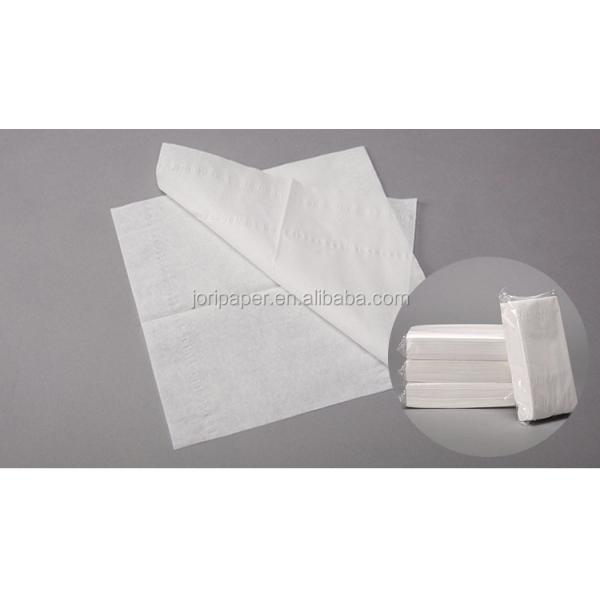

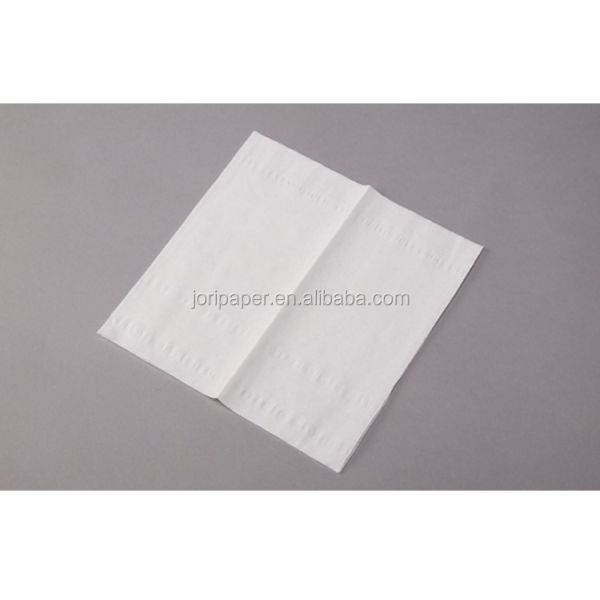

Finished Products:
Scope of application | Facial tissue, napkin tissue |
Infeed | ASF Full automatic |
Max.design mechanical speed | 80 packs per min |
Max. stable operation speed | 70 packs per min |
Film change over time | ≤2 min |
Napkin length | 120mm-210mm |
Napkin wiidth | 90mm-120mm |
Napkin heigth | 40mm-100mm |
