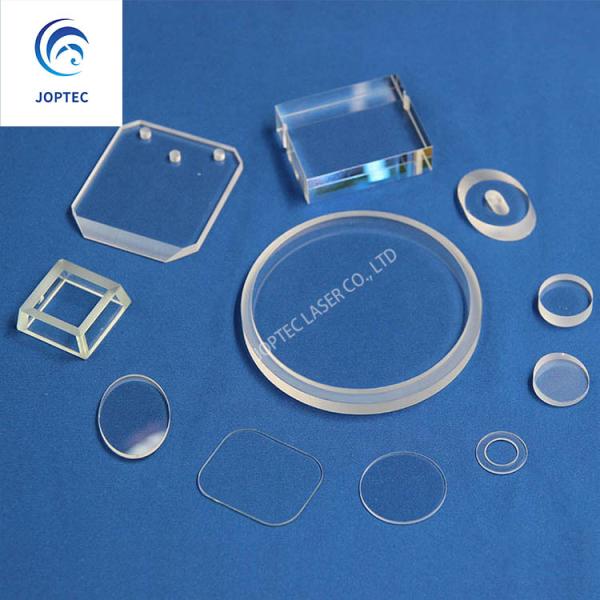

Circular Precision Laser Protection BK7 Optical Windows
Circular Precision Laser Protection BK7 Optical Windows
Specifications
Brand Name :
JOPTEC
Place of Origin :
HEFEI, CHINA
MOQ :
50 PCS
Payment Terms :
T/T
Supply Ability :
5000000 PCS/Month
Delivery Time :
30 Days
Packaging Details :
Boxes
Material :
BK7
Dimension Tolerance :
+0.0, -0.1mm
Thickness Tolerance :
± 0.1mm
Surface quality :
60/40(Standard), 10/5(High Precision)
Clear Aperture :
>85%
Flatness :
λ(Standard), λ/10(High Precision) per 25mm@633nm
Parallelism :
1' (Standard), 10" (High Precision)
Bevel :
<0.25mm X 45°
Description
Material: BK7
Dimension Tolerance: +0.0, -0.1mm
Thickness Tolerance: ± 0.1mm
Surface quality: 60/40(Standard), 10/5(High Precision)
Clear Aperture: >85%
Flatness: λ(Standard), λ/10(High Precision) per 25mm@633nm
Parallelism: 1' (Standard), 10" (High Precision)
Bevel: <0.25mm X 45°
Coating: Upon requirement

Typical Sizes:
Round Shape Φ5.0; Φ10.0 ; Φ12.7; Φ15.0; Φ20.0;
Diameter(mm): Φ25.4; Φ30.0; Φ38.1; Φ50.8; Φ76.2
Square Shape: 5.0x5.0 ; 10.0x10.0 ; 15.0x15.0 ;
WxH(mm) 20.0x20.0; 25.0x25.0; 50.0x50.0
Thickness(mm): 0.5; 1.0; 1.5; 2.0; 3.0;

4.0; 5.0; 6.0; 8.0; 10.0
