10-3/4 Inch SS304 Water Well Screen with #20 Slot
10-3/4 Inch SS304 Water Well Screen with #20 Slot
10-3/4 Inch SS304 Water Well Screen with #20 Slot
10-3/4 Inch SS304 Water Well Screen with #20 Slot
10-3/4 Inch SS304 Water Well Screen with #20 Slot
10-3/4 Inch SS304 Water Well Screen with #20 Slot
10-3/4 Inch SS304 Water Well Screen with #20 Slot
10-3/4 Inch SS304 Water Well Screen with #20 Slot
Specifications
Brand Name :
Heng Yuan
Model Number :
10-3/4"
Certification :
ISO9000
Place of Origin :
Hengshui,Hebei,China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
10 work days
Packaging Details :
Plastic film
Name :
Water well screens
Material :
Stainless Steel
Grade :
SS304
Diameter :
10-3/4" (219mm)
Length :
5800mm
Slot size :
#20
Wrap wire :
3*4.6mm
Support rod :
ø3.8mm
NO. of rod :
50NOS
End connection :
male/female threaded
Weight :
25KG/meter
Package :
Plastic film
Description
10-3/4" SS304 Slot #20 Water Well Screens
Water Well Screens Specifications
Attribute Value
Name Water well screens
Material Stainless Steel
Grade SS304
Diameter 10-3/4" (273mm)
Length 5800mm
Slot size #20
Wrap wire 3*4.6mm
Support rod ø3.8mm
NO. of rod 50NOS
End connection Male/female threaded
Weight 25KG/meter
Package Plastic film
Water Well Screen Overview

Water well screen, also known as Johnson screen, water wire screen, wire wrap screen, wedge wire screen, or wound screen, is designed for water wells with sand control requirements.

Due to its high open area, our water well screens enable more effective development as more energy can reach the formation. This ensures efficient removal of fine material as all energy is directed at the surrounding formation.

Water Well Screens Recommended Applications
  • Formations comprised of small or fine particles
  • Water wells where gravel packs will be installed
  • Thin aquifers, where maximum open area is required
  • Small diameter wells
Water Well Screens Standard Specifications

Name: Water Well Screen, Johnson screen, Water wire screen, Wire warp screen, Wedge wire screen, Screen tube, Slotted tube, Wound screen, Continuous slot screen filter, Sand control screen, Wedge wire screen pipe, Rotary filter drum, Oil screen.

Material: Stainless steel 202, 304, 304L, 316L, Non-magnetic Stainless steel, Low carbon galvanized etc.

Diameter: 3", 4", 6", 8", 10", 12", 14", 16", 18" etc.

Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm)

Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container)

Special specifications can be made according to your needs!
Water Well Screens Technical Specifications
Sizes (inch) OD (mm) Slot (mm) Length (m) Tensile Strength Collapse Strength Wrap wire Vee-shaped wire (mm) Support rod Round wire (mm)
3-1/2 88.9 1.0 2.9 ＞22 10.2 2.0*3.5(Width*height) ø3.8MM×22
4-1/2 114.3 1.0 2.9 ＞28 11.5 2.0*3.5(Width*height) ø3.8MM×22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.0*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.2*3.5(Width*height) ø3.8MM×32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.2*3.5(Width*height) ø3.8MM×48
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*4.6(Width*height) ø4.8MM×55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0(Width*height) ø4.0MM×56
16 426 1.0 2.9 ＞80 37.5 3.0*5.5(Width*height) ø4.0MM×64
Water Well Screens Advantages

NON-CLOGGING SLOT: Designed with unique structural strength. The "V" shaped openings allow only two contact points, preventing clogging and making cleaning easier.

REDUCTIONS IN OPERATING COSTS: Using our screens achieves savings in pumping costs. Lower through-slot velocities mean:

  • Pressure drops are minimized
  • Drawdowns are reduced
  • Less energy is needed for pumping
  • Flow rates are increased
  • Less sand in the water reduces wear on pumps

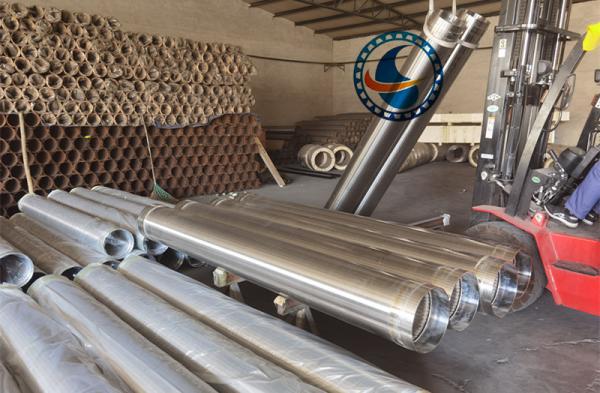

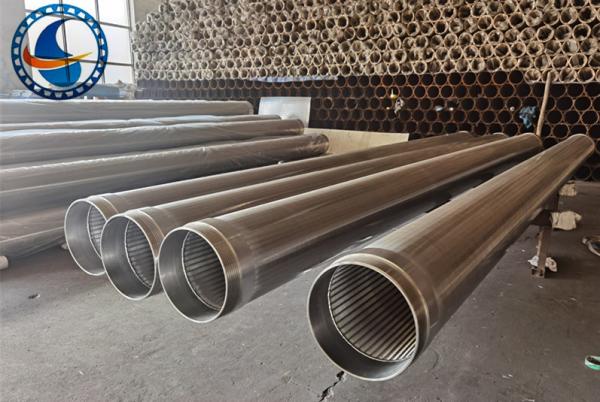

Water Well Screens Images
