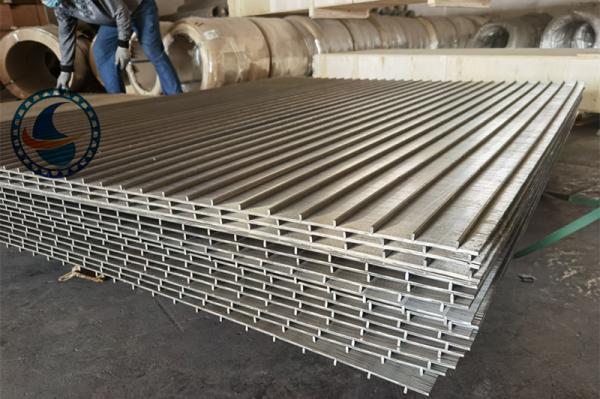

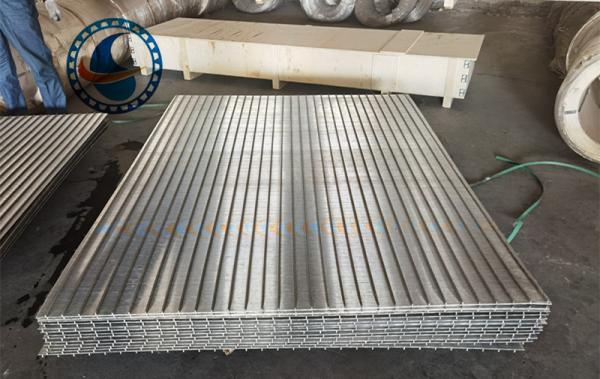

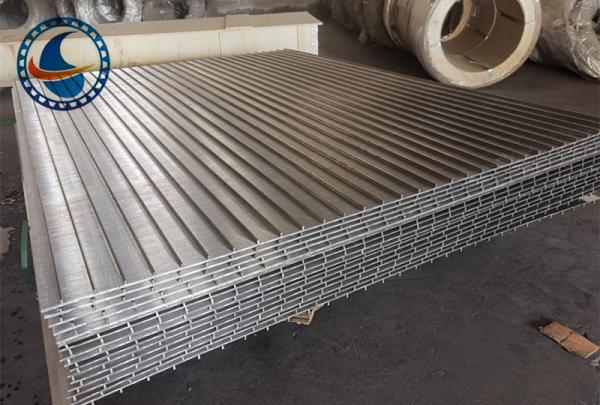

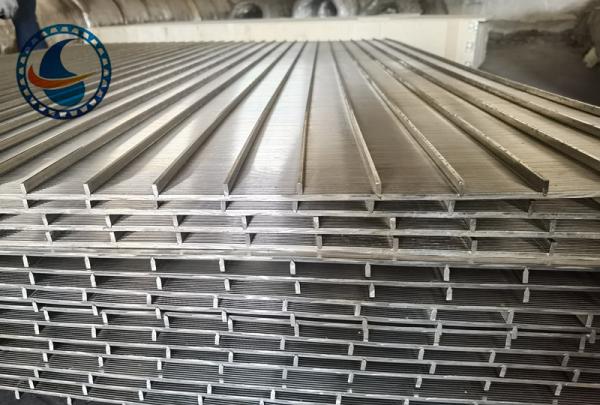

SS316L Wedge Wire Screen Panels for Petroleum Filtration
SS316L Wedge Wire Screen Panels for Petroleum Filtration
SS316L Wedge Wire Screen Panels for Petroleum Filtration
SS316L Wedge Wire Screen Panels for Petroleum Filtration
SS316L Wedge Wire Screen Panels for Petroleum Filtration
SS316L Wedge Wire Screen Panels for Petroleum Filtration
SS316L Wedge Wire Screen Panels for Petroleum Filtration
SS316L Wedge Wire Screen Panels for Petroleum Filtration
Specifications
Brand Name :
Heng Yuan
Model Number :
HY072609
Certification :
ISO9000
Place of Origin :
Hebei,China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Moister-Barrier with each piece,64pcs per 20 ft container
Name :
Wedge Wire Screen Panels
Material :
Stainless steel 316L, 304, 321, 2205, 2507
Slot size :
0.025mm-100MM
Video outgoing-inspection: :
Provide
FIlter rating :
75%
Hole shape :
slot
Business type :
Manufacturer
Technique :
wedge wire,wire wound
Oem :
YES
Feature :
easy leakage,non-clogging,wear resistance,corrosion resistance
Description
SS316L Wedge Wire Screen Panels For Petroleum Industry
Wedge Wire Screen Panels Specifications
Attribute Value
Name Wedge Wire Screen Panels
Material Stainless steel 316L, 304, 321, 2205, 2507
Slot size 0.025mm-100MM
Video outgoing-inspection Provide
Filter rating 75%
Hole shape slot
Business type Manufacturer
Technique wedge wire, wire wound
OEM YES
Feature easy leakage, non-clogging, wear resistance, corrosion resistance
Wedge Wire Screen Panels Description

Wedge wire welded panel consists of V shape profile wire and the longitudinal support rods. Each intersecting point the V shape section panel can avoid blockage, and make sure of the unimpeded water.

The consecutive slot have more open area, and it can reduce the speed of the water entering to of these wires is fusion welded, so it has sturdy construction and good mechanical property. Avoid the sand entering the screen under the great pressure, so it can filter sand better. Meanwhile, the slot can change according to the real condition of the earth.

If you are interested in our product, please contact us for more information.

Wedge Wire Screen Panels Applications
  • Widely used in various kinds of medium filtering
  • As the fitting using in the water-treating equipment, the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment
  • The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol
  • The organic solution recycling filter
Wedge Wire Screen Panels Technical Specifications

Material: stainless steel 302, 304, 316, 304L, 316L etc.

Slot: 0.025mm - 100mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm, length up to 4430mm

SIZES OF THE WIRE AND ROD
WIRE SHAPE V V V V V V
Width(mm) 1.0 1.2 1.5 2.0 2.2 3.0
Height(mm) 2.0 2.0 2.0 3.5 4.5 4.6
ROD SHAPE V V V V V O
Width(mm) 2.0 2.2 3.0 3.0 3.2 Diameter
Height(mm) 3.0 4.5 4.6 5.0 6.0 3.0~3.8
