SS304 Wedge Wire Rotary Screen 1008mm Diameter for Wastewater
SS304 Wedge Wire Rotary Screen 1008mm Diameter for Wastewater
SS304 Wedge Wire Rotary Screen 1008mm Diameter for Wastewater
SS304 Wedge Wire Rotary Screen 1008mm Diameter for Wastewater
SS304 Wedge Wire Rotary Screen 1008mm Diameter for Wastewater
SS304 Wedge Wire Rotary Screen 1008mm Diameter for Wastewater
SS304 Wedge Wire Rotary Screen 1008mm Diameter for Wastewater
SS304 Wedge Wire Rotary Screen 1008mm Diameter for Wastewater
Specifications
Brand Name :
HengYuan
Model Number :
HY072606
Certification :
ISO,CO,FORM E,CIQ, etc
Place of Origin :
Hengshui City,Hebei Provincei,China
MOQ :
1 piece
Price :
Negotiated price
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1500 pcs /month
Delivery Time :
7 days
Packaging Details :
wooden box
Name :
Wedge Wire Rotary Screen
Material :
Stainless Steel 304
Diameter :
1008mm
Length :
1200mm
Slot :
0.3mm
Wire :
1.5*2mm Vee wire
Support rod :
2*3mm Vee wire
Ends :
Nothing
Technique :
Point welding
Features :
Non-clogging
Application :
Filteration
Package :
Wooden box
Business type :
Manufacturer
Filter type :
From inside to outside
Description
SS304 Wedge Wire Rotary Screen For Wastewater Treatment
Attribute Value
Name Wedge Wire Rotary Screen
Material Stainless steel 304
Diameter 1008mm
Length 1200mm
Slot 0.3mm
Wire 1.5*2mm Vee wire
Support rod 2*3mm Vee wire
Ends Nothing
Technique Point welding
Features Non-clogging
Application Filteration
Package Wooden box
Business type Manufacturer
Filter type From inside to outside

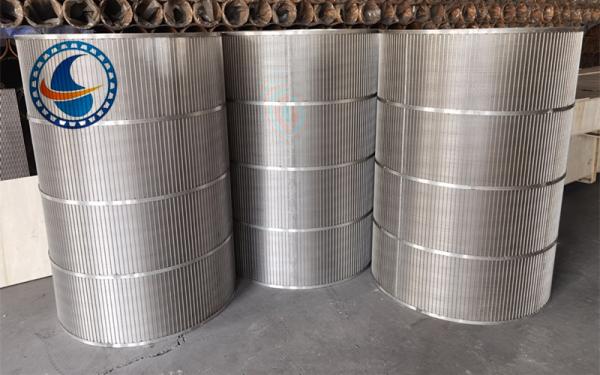

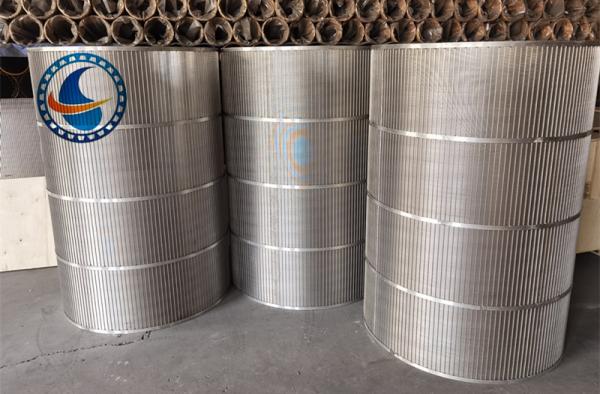

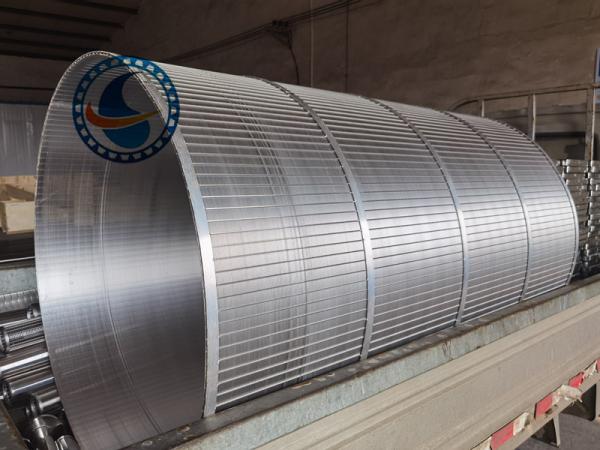

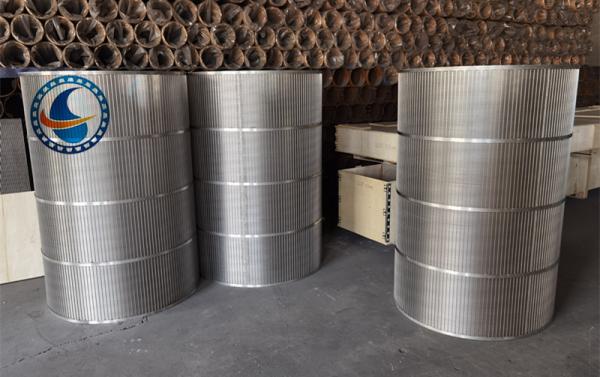

Stainless Steel Wedge Wire Rotary Screen

Wedge Wire Rotary Screen, also called wedge wire cylinder, is a type of cylindrical "V" shape wedge wire screen, which is made of stainless steel V shaped wires and support rods. As the wedge wire rotary drum screen is working under high pressure when separation and filtration, so there is reinforced rods on the structure.

The end of rotary drum wire screen is welded flanges or welded rings for easy installation. The slot sizes and structures may varies according to different materials and working conditions.

Wedge Wire Rotary Screen Information
Name:
Wedge Wire Rotary Drum Wire Screen, Johnson screen, Water wire screen, Water well screen, Wire warp screen, Screen tube, Wound screen, Continuous slot screen filter, Sand control screen, Wedge wire screen pipe.
Material:
Stainless steel 201, 304, 316L, 904L, Duplex steel 2205, 2507, C276 etc.
Diameter:
From 25-1300mm
Slot:
From 0.025-100mm
Length:
From 100-6000mm
Wrap wire:
1×2mm, 1.2×2mm, 1.2×2.3mm, 1.5×2mm, 1.5×2.5mm, 2×3mm, 2×3.5mm, 2.2×3.5mm, 3×4.6mm etc.
Support rod:
2×3mm, 3×4.6mm Vee shaped; Also can be round wire, ø3.0-ø6.0mm
Ends:
Welded rings/Plain beveled ends, Male/female threaded, Flange, Closed up etc.
Use:
Water Well, Waste Water Treatment, Water supply systems, Coal & Mine, Food Processors & Beverage Screens, Environmental protection, Refining & Petrochemical, Architecture & Construction etc.
Wedge Wire Rotary Screen Type

Flow inside to outside also known as filtration in to out (FITO) happens when the support profile is horizontal to the surface profile of the wedge wire filter.

Flow inside to outside is ideal if you want to maintain the pressure of the fluid during the filtration. However, there will be frequent cake formation as a result of the deposit of contaminants at the sides of the wedge wire filter. This is due to the small inner diameter which does not generate enough pressure to force the contaminants.
