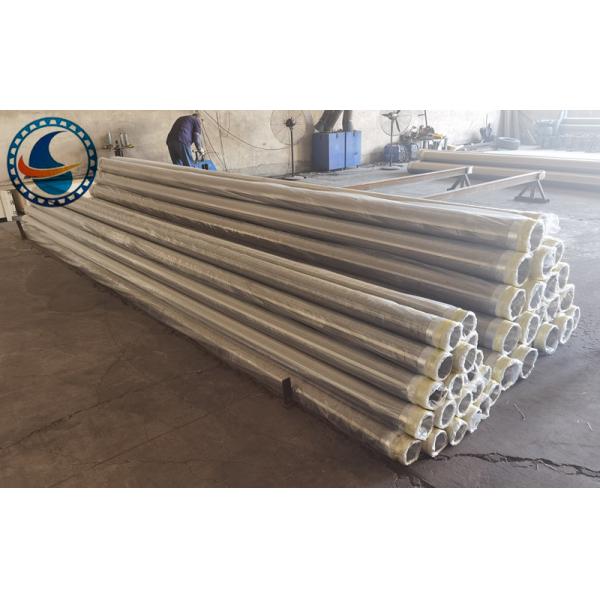

6-5/8" Johnson VEE-WIRE Water Well Screen Pipe
Johnson VEE-WIRE Water Well Screen Pipe Specifications
Attribute | Value |
Name | Johnson VEE-WIRE Water Well Screen Pipe |
Material | Stainless Steel 304L |
Diameter | 168mm |
Length | 5800mm |
Slot size | 0.5mm |
Wrap wire | 3×4.6mm |
Support rod | ø3.8mm |
NO. of rod | 32NOS |

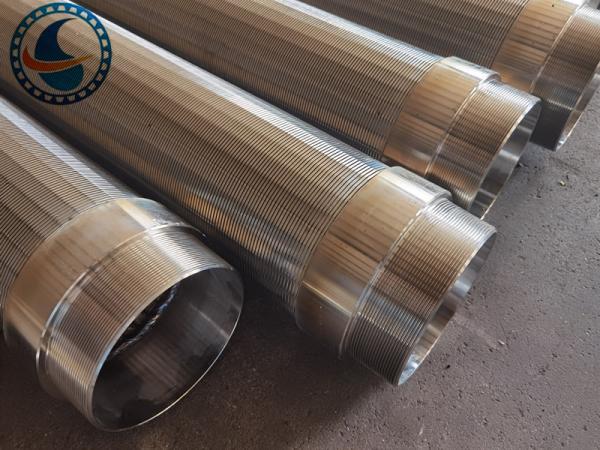

End connection | Male/female threaded |
Weight | 90KG/piece |

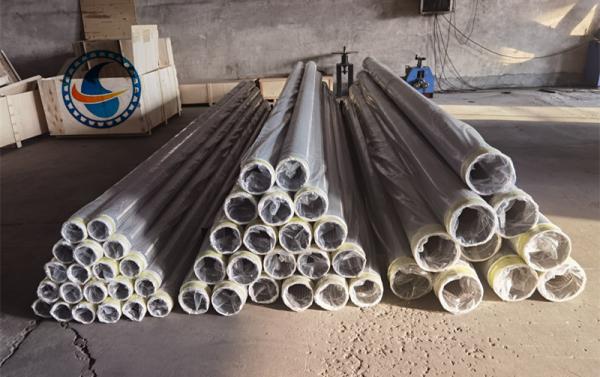

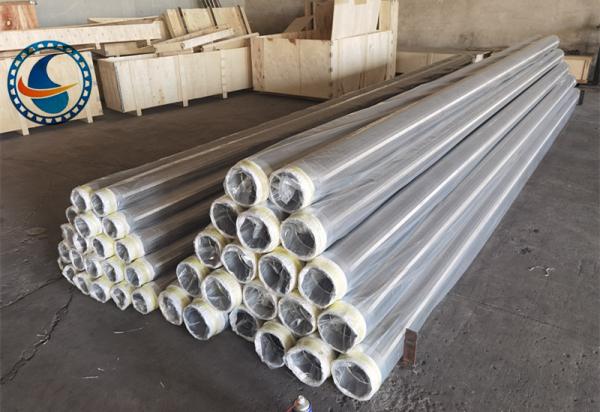

Package | Plastic film |
Use | In water wells for sand control |
Johnson VEE-WIRE Water Well Screen Pipe
Our Johnson VEE-WIRE Water Well Screen Pipe, also known as wedge wire screens or continuous slot water well screens, represents the pinnacle of quality in sand control solutions. Manufactured in our state-of-the-art facility, these screens combine precision engineering with durable non-magnetic stainless steel construction.
Johnson VEE-WIRE Water Well Screen Pipe Key Features
- Available in pipe-base configuration for deep wells and rod-base for shallow wells
- Optimized manufacturing processes ensure consistent quality and performance
- Streamlined production for reliable on-time delivery
- Precision slot sizes from 0.1-100mm available
- Custom configurations to meet specific application requirements
Johnson VEE-WIRE Water Well Screen Pipe Standard Specifications
Name | Johnson VEE-WIRE Water Well Screen Pipe, Continuous Slot Water Well Screen, Oil Well Sand Screen, Wedge Wire Screen |
Material | Stainless steel 202, 304, 304L, 316L, Non-magnetic Stainless steel, Low carbon galvanized |
Diameter | 3", 4", 6", 8", 10", 12", 14", 16", 18" (custom sizes available) |
Slot Size | 0.1-100mm (standard sizes: 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm) |
Length | 100-6000mm (standard lengths: 2.9m/3m and 5.8m/6m for container shipping) |
Wrap Wire | 2×3.5mm, 2.2×3.5mm, 3×4.6mm, 3×5mm, 3×6mm, 3×6.5mm, 3.2×6mm, 4×7mm |
Support Rod | ø3.0-ø6.0mm round wire or Vee-shaped wire options |
End Connections | Welded rings, Plain beveled ends, Male/female threaded, Flange |
Johnson VEE-WIRE Water Well Screen Pipe Technical Specifications Table
Sizes (inch) | OD (mm) | Slot (mm) | Length (m) | Tensile Strength | Collapse Strength | Wrap wire Vee-shaped wire (mm) | Support rod Round wire (mm) |
3-1/2 | 88.9 | 1.0 | 2.9 | >22 | 10.2 | 2.0*3.5 | ø3.8MM×22 |
4-1/2 | 114.3 | 1.0 | 2.9 | >28 | 11.5 | 2.0*3.5 | ø3.8MM×22 |
6-5/8 | 168.3 | 0.75 | 5.8 | >40 | 12.8 | 2.0*3.5 | ø3.8MM×32 |
6-5/8 | 168.3 | 1.0 | 5.8 | >33 | 12.8 | 2.2*3.5 | ø3.8MM×32 |
6-5/8 | 168.3 | 0.63 | 5.8 | >83 | 45 | 3.0*6.0 | ø6.0MM×32 |
8-5/8 | 219.1 | 1.0 | 5.8 | >34 | 21.9 | 2.2*3.5 | ø3.8MM×48 |
8-5/8 | 219.1 | 1.0 | 5.8 | >50 | 38.2 | 3.0*4.6 | ø4.0MM×48 |
8-5/8 | 219.1 | 1.0 | 5.8 | >60 | 46 | 3.0*6.0 | ø5.0MM×48 |
10-3/4 | 273.1 | 0.75 | 5.8 | >50 | 32.9 | 2.2*3.5 | ø4.0MM×55 |
10-3/4 | 273.1 | 1.0 | 5.8 | >60 | 39.5 | 3.0*4.6 | ø4.8MM×55 |
10-3/4 | 273.1 | 1.0 | 5.8 | >100 | 48 | 3.2*6.0 | ø5.0MM×55 |
Special specifications can be manufactured according to your specific requirements.
Johnson VEE-WIRE Water Well Screen Pipe Industry Applications
- Water Well Systems
- Food & Beverage Processing
- Pharmaceutical & Biological
- Refining & Petrochemical
- Water Treatment & Separation
- Mineral & Aggregate Processing
- Pulp & Paper Manufacturing
- Environmental Protection
- Architecture & Construction
