Customizable Stainless Steel 304 Wedge Wire Screen Cylinder With End Connection
Customizable Stainless Steel 304 Wedge Wire Screen Cylinder With End Connection
Customizable Stainless Steel 304 Wedge Wire Screen Cylinder With End Connection
Customizable Stainless Steel 304 Wedge Wire Screen Cylinder With End Connection
Customizable Stainless Steel 304 Wedge Wire Screen Cylinder With End Connection
Customizable Stainless Steel 304 Wedge Wire Screen Cylinder With End Connection
Customizable Stainless Steel 304 Wedge Wire Screen Cylinder With End Connection
Customizable Stainless Steel 304 Wedge Wire Screen Cylinder With End Connection
Specifications
Brand Name :
Heng Yuan
Model Number :
250513004
Certification :
ISO,CIQ,CE, FORM E etc
Place of Origin :
Hengshui City,Hebei,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity

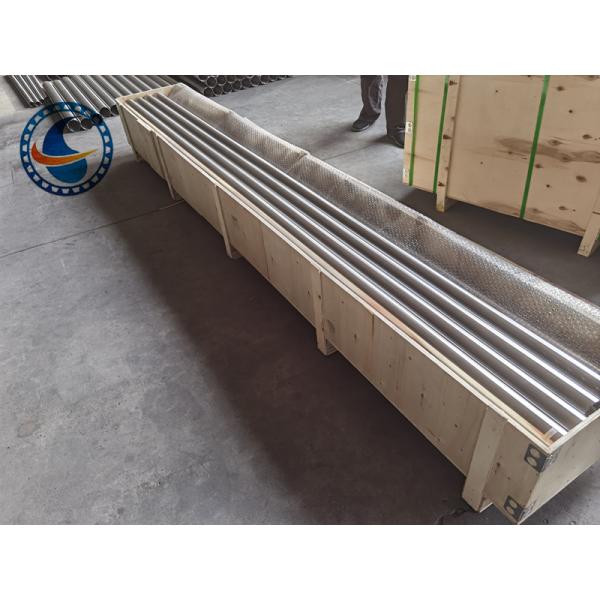

Packaging Details :
Moister-Barrier with each piece,64 pcs per 20 ft container
Name :
Wedge wire Screen cylinder
Material :
Stainless Steel 304
Diameter :
60mm
Length :
3000mm
Slot size :
0.18mm
Wire :
1.5*2mm
Support rod :
2*3mm etc
Package :
Wooden box

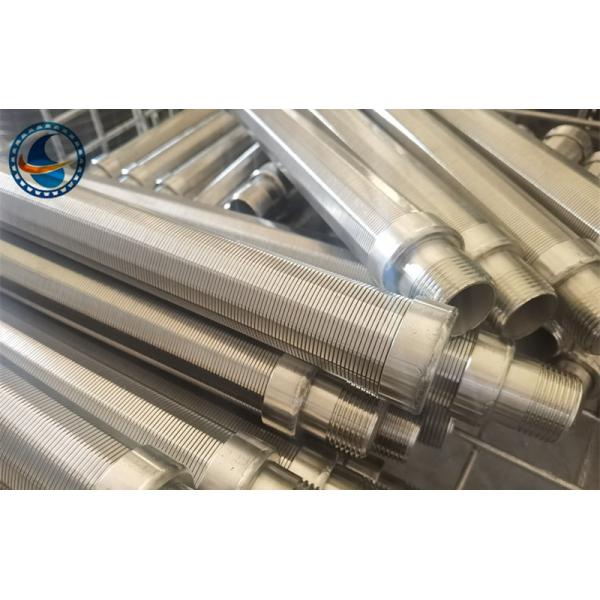

End connection :
DN25 male threaded,
Hole shape :
Vee-shaped
Description

SS 304 Wedge wire Screen cylinder

Wedge wire Screen cylinder Characteristics:

1. The application of Wedge wire Screen cylinder, so that the schroeder sieve tube gap between the formation of v-shaped opening. The design works more efficiently than other products and ensures smooth water filtration.

2. The trapezoidal wire continuous winding forms a continuous high-density uniform gap on the supporting wire in a circular arrangement, ensuring the opening area of schroeder sieve tube and no obstruction, and avoiding the high-density accumulation of sediment, providing a guarantee to improve the production efficiency and prolong the service life of the filter.

3. The winding wire and all supporting wires are connected by electric welding, durable, longer working life cycle.

4. Longitudinal arrangement of supporting wire and continuous gap form of screen tube designed according to actual demand make the product have higher compression performance.

Wedge wire Screen cylinder Specification:

Name Wedge wire Screen cylinder
Material Stainless steel 304, 304L, 316L and 321 etc.
Profile Wire

1.0 *2.0 mm 1.5*2.0mm 1.5*2.5mm 2*3mm 2.3*3.5mm 2.2*4mm 2.2*4.5mm

3*4mm 3*4.6mm etc
Support Rods 2*3mm 3*4mm 3*4.6mm 3*5mm 3*6mm 4*7mm
Round From 2.5mm to 6.0mm
Slot Size 0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc
Pipe Length Max 6 meter
Pipe diameter 25mm to 1300mm
Screen Ends Plain Beveled ends, male/female threaded, flange or close up.
