Corrosion Resistant Wire Wrapped Screen , SS Cylinder Screen With Bevel Ends
Corrosion Resistant Wire Wrapped Screen , SS Cylinder Screen With Bevel Ends
Corrosion Resistant Wire Wrapped Screen , SS Cylinder Screen With Bevel Ends
Corrosion Resistant Wire Wrapped Screen , SS Cylinder Screen With Bevel Ends
Specifications
Brand Name :
Heng Yuan
Model Number :
HY004
Certification :
ISO9000
Place of Origin :
Hebei,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity

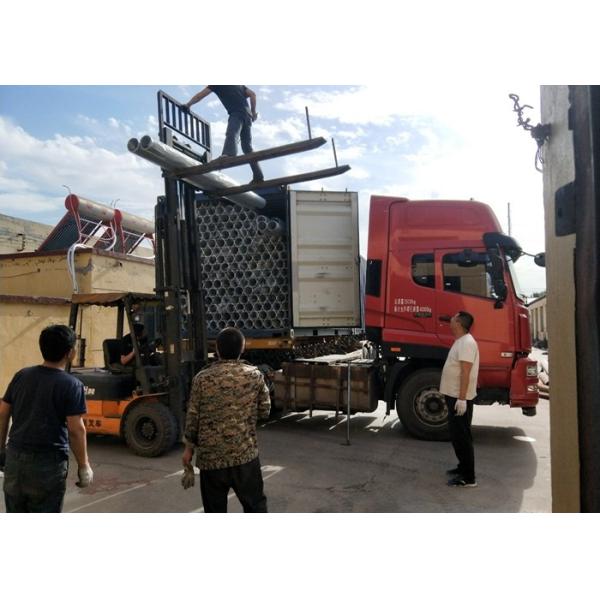

Packaging Details :
Moister-Barrier with each piece,110 pcs per 20 ft container
Material :
Stainless steel
Grade :
304
Slot size :
1.0 mm
Diameter :
8 ",219mm
Length :
2.9M/5.8M,1000-6000MM
End connection :
Wleded rings
Package :
Woden box, Container
Description

High Effective Wire Wrapped Screen Cylinder Screen For Refining / Petrochemical

Product Description:

Johnson Wire Wrap Screen are made by welding v-shaped wire on support rods, creating slots which enlarge inwardly, meeting the most demanding standards for ruggedness,durability, consistency and slot openings. The v-shaped opening allows only two contact points with the particles, thus preventing any risk of clogging.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The wrapped wire is V shape, and the support rod is O shape. Filter from outside to inside.

Specificarion:

MaterialA Stainless steel
Grade 316L
O.D 219mm
Size 8"
Length 300mm-6000mm,2.9m,5.8m
Solt size 1.0 mm
End connection Welded rings
Wire size 93 #
Support rod 140 #
Wire shape V shape

Characteristic:

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance

Regular Specification:

SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)
3-1/2 88.9 1.0 3 ＞22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 ＞28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 ＞80 37.8 3.0*5.0 4.0MM/59

Use:

Johnson Wire Wrap Screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:

water well

water supply systems

Refining & petrochemical

Pictures:

Corrosion Resistant Wire Wrapped Screen , SS Cylinder Screen With Bevel EndsCorrosion Resistant Wire Wrapped Screen , SS Cylinder Screen With Bevel Ends
