Duplex Steel 2507 Water Wire Screen With 0.13mm Slot
Duplex Steel 2507 Water Wire Screen With 0.13mm Slot
Duplex Steel 2507 Water Wire Screen With 0.13mm Slot
Duplex Steel 2507 Water Wire Screen With 0.13mm Slot
Duplex Steel 2507 Water Wire Screen With 0.13mm Slot
Duplex Steel 2507 Water Wire Screen With 0.13mm Slot
Duplex Steel 2507 Water Wire Screen With 0.13mm Slot
Duplex Steel 2507 Water Wire Screen With 0.13mm Slot
Specifications
Brand Name :
HengYuan
Model Number :
O.D 60mm
Certification :
ISO
Place of Origin :
Hebei,China
MOQ :
1 piece
Price :
Negotiated price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500 pcs/month
Delivery Time :
7 days
Packaging Details :
wooden boxes
Name :
Wire Wrapped Screen Cylinder
Material :
Duplex Steel 2507
Diameter :
60mm
Length :
1000mm
Slot :
0.13mm
Profile Wire :
1.5*2.5mm Vee wire
Support rod :
2*3mm Vee wire
No. of rods :
28 PCS
Technique :
Point welding
Features :
Non-clogging
Application :
Filteration
Filter type :
From outside to inside
Description

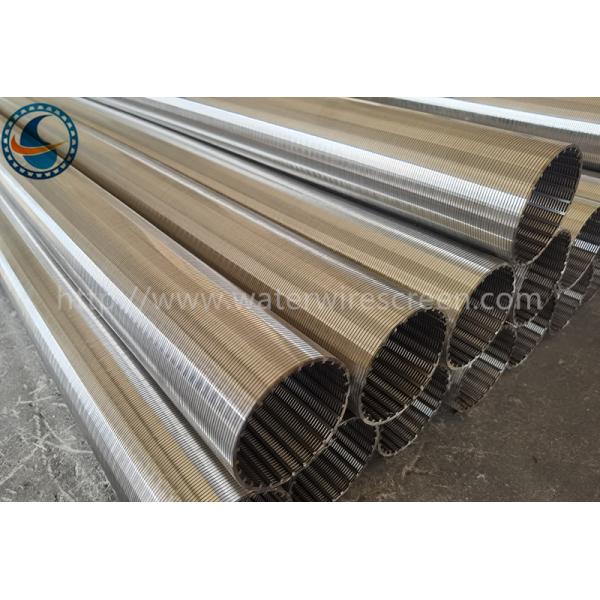

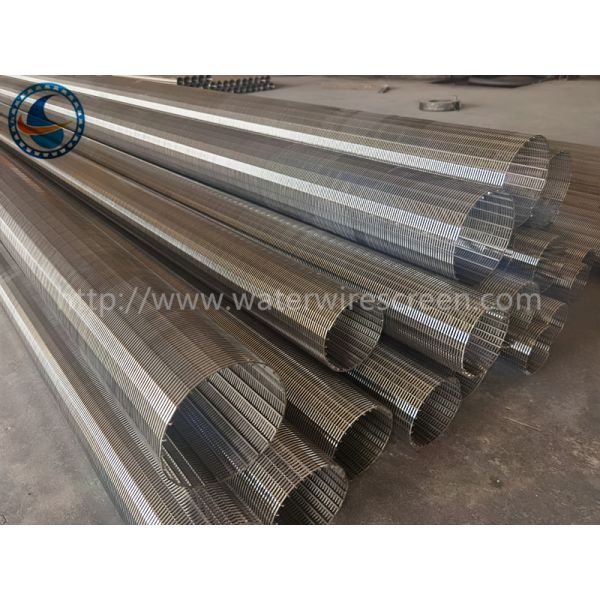

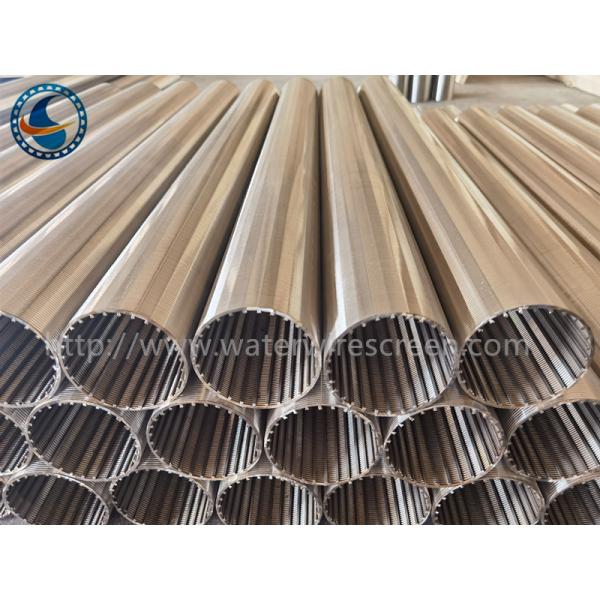

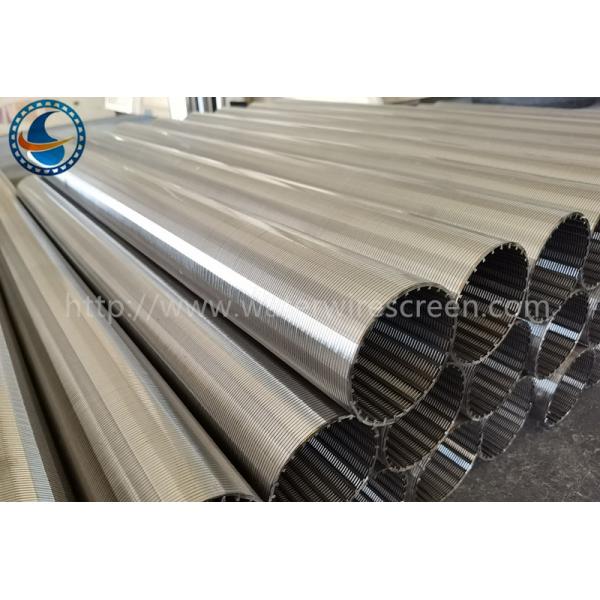

Duplex Steel 2507 Wire Wrapped Screen Cylinder With 0.13mm Slot

Wire Wrapped screen is made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube. This technology allows the production of wedge wire screens when very high gap precision and screen resistance are required.

Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.

Wire Wrapped Screen Cylinder Information:

Standard type:
External circumferential wire and axial internal support rods.


Wire Wrapped Screen Cylinder Benefits:
• Economical
• Suitable for most applications
• Precision openings


Wire Wrapped Screen Cylinder:
• Filter cartridges
• Diatom candle filters
• Header laterals
• Rotating drum screens
• Nozzles
• Resin traps

Wire Wrapped Screen Cylinder Normal Sizes:

Outside Diameter (mm) Length (mm) Slot (mm) Styles of connection(mm)

29,38,57,63,76,89,108,150,

168,320,600,900,1000 etc

 1000,2000,3000 0.05,0.1,0.25,0.5,1.0 weldedrings,male/female threaded coupling ,flange,closed up.
Explanation diameter:29-1300mm length 100-6000mm stainless steel or others
