DIN 1897,DIN338,DIN 340,DIN1869 stand HSS Fully Ground short, Jobber lenght ,long ,extra long Drill Bit Bright Finish
DIN 1897,DIN338,DIN 340,DIN1869 stand HSS Fully Ground short, Jobber lenght ,long ,extra long Drill Bit Bright Finish
DIN 1897,DIN338,DIN 340,DIN1869 stand HSS Fully Ground short, Jobber lenght ,long ,extra long Drill Bit Bright Finish
DIN 1897,DIN338,DIN 340,DIN1869 stand HSS Fully Ground short, Jobber lenght ,long ,extra long Drill Bit Bright Finish
DIN 1897,DIN338,DIN 340,DIN1869 stand HSS Fully Ground short, Jobber lenght ,long ,extra long Drill Bit Bright Finish
DIN 1897,DIN338,DIN 340,DIN1869 stand HSS Fully Ground short, Jobber lenght ,long ,extra long Drill Bit Bright Finish
Specifications
Brand Name :
M&G
Model Number :
DIN338
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, PayPal, Visa
Supply Ability :
500000PCS PER MONTH
Delivery Time :
30 Days
Packaging Details :
PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell,Metal Box
Product name： :
DIN338 HSS Fully Ground Twist Drill Straight Shank Jobber Drill Bright Finish
Material :
M35, M2, 4341
Process: :
Fully Ground, Milled, Roll forged
Standard: :
DIN338, DIN1897, DIN340, DIN1869
Type :
Jobber Length, Aircraft Extension, Extra Length, Screw Machine Length, Taper Length, Left Hand
Size: :
Metric size, Fractional Size, Wire Gauge Size, Letter Size
Description

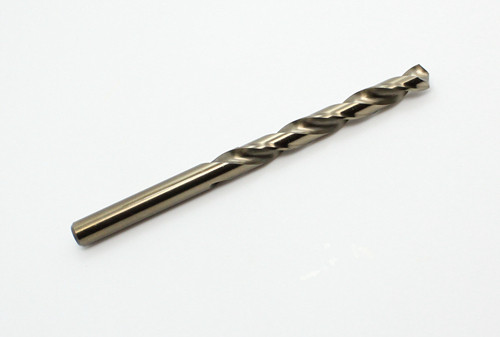

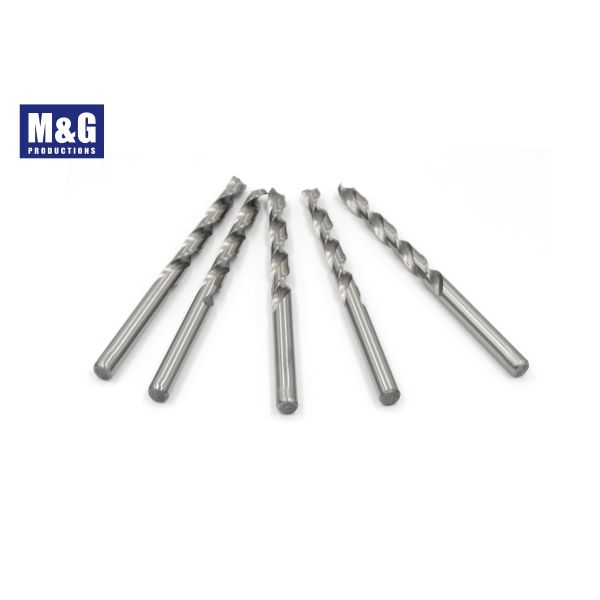

DIN338 HSS Fully Ground Twist Drill Straight Shank Jobber Drill


A bright finish tool has no surface treatment and is suitable for general purpose use


Product name: DIN338 HSS Fully Ground Twist Drill Straight Shank Jobber Drill Bright Finish
Material: M35, M2, 4341
Process: Fully Ground, Milled, Roll forged
Standard: DIN338, DIN1897, DIN340, DIN1869
Type: Jobber Length, Aircraft Extension, Extra Length, Screw Machine Length, Taper Length, Left Hand
Size: Metric size, Fractional Size, Wire Gauge Size, Letter Size
Point Type: 118° Split Point: Standard web construction which allows easier penetration
　 135° Split Point: Heavy web construction and may be used with heavier feeds in harder materials.
　 It’s popular in hand held drilling applications to reduce breakage and eliminate skidding or walking.
Shank Type: Straight Shank, Hex Shank, Reduced Shank, Tri-Flats Shank, Quick Release Shank
Flute Type: Regular Flute, Fast Spiral, Slow Spiral, Parabolic Flute
Surface Finish: Black Oxide: Creates a porous layer that holds cutting oil which provides abrasion resistance and improved chip flow.
　 Bright Finish:Better chip ejection in low carbon, non-ferrous materials.
　 Titanium Nitride Coated: For added wear resistance and better lubricity of tool surface which increases tool life and productivity.
　 Black & Gold
Package: PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell,Metal Box

Features:

  • High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.
  • Universal 135° point shape for drilling a wide selection of materials.
  • Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
  • Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface of the bit.
  • Special multi-cut geometry with ply-cutting and lower friction to reach better performance of endurance and removal of chips. So its life is lengthened. It is stable made and can cut with high speed, and make the surface of materials smooth. It has exact diameter and can use after regrinding.

DIN 1897,DIN338,DIN 340,DIN1869 stand HSS Fully Ground short, Jobber lenght ,long ,extra long Drill Bit Bright Finish

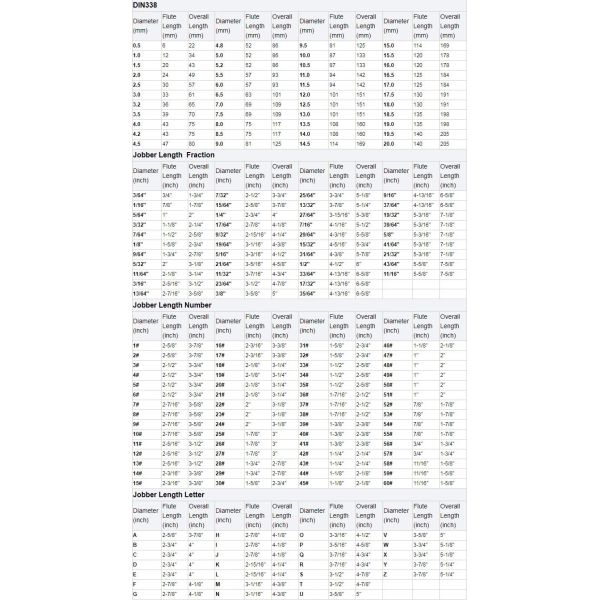

Size & Range

DIN 1897,DIN338,DIN 340,DIN1869 stand HSS Fully Ground short, Jobber lenght ,long ,extra long Drill Bit Bright Finish
