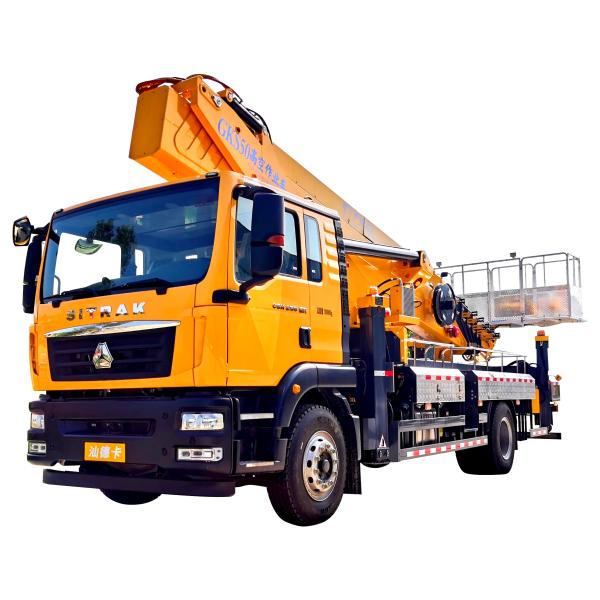

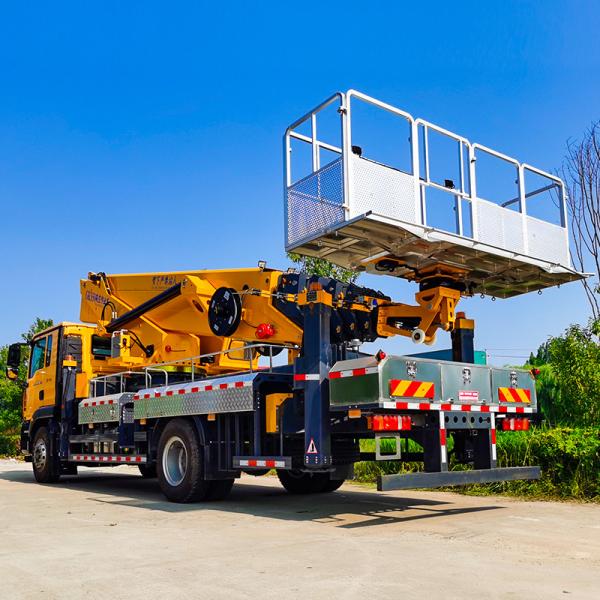

High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
Specifications
Place of Origin :
Shandong, China
Packaging Details :
Comply with Export Packaging Requirements
Supply Ability :
1000 Unit/Units per Year
Price :
$140,000.00/units 1-2 units
Transmission Type :
Manual
Condition :
New
Emission Standard :
Euro 6
Fuel Type :
Diesel
Dimensions (L x W x H) (mm) :
10120*2550*3920
After-sales Service Provided :
Video technical support, Online support
Horsepower :
150-250HP
Engine Capacity :
4 - 6L
Fuel Tank Capacity :
100-200L
Drive type :
4X2
Working platform dimensions :
3200 x 850 x 1200 mm
Max. working height :
50 m
Max. operating range :
32 m
Rated load :
400 kg
Gross Vehicle Weight :
18000 Kg
Working boom :
seven section synchronous telescopic boom
PTO System :
Electronic operation
Rotary device :
360 deg continuous rotation
Port :
Tianjing, Lianyungang, Qingdao, Shanghai port
Description
Products Description
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
Jiubang aerial working vehicle adopts JMC/JAC/ISUZU/Dongfeng as the working platform chassis. The overall structure is made of high-strength steel plates, which is safe and reliable. It is equipped with adjustable hydraulic outriggers, with a large span and more stable; Equipped with manual control, electric control, remote control and other modes of operation, convenient and fast; It also has interlock, soft retreat protection, automatic limit of working height in dangerous environment and automatic emergency system to protect personnel safety and construction safety.

SHANGHAI BAOSTEEL WORKING BOOM
High strength, stronger bearing capacity
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket

REINFORCED TELESCOPIC BOOM
Seven section synchronous telescopic boom
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
Chassis
Brand
Sitrak
Drive
4 x 2
Dimensions(L x W x H)
10120 x 2550 x 3920(mm)
Gross Vehicle Weight
18000 Kg
Engine
Sinotruk
Horsepower
250 HP
Max. speed
98 Km/h
Emission Standard
Euro VI
Wheelbase
5000 mm
Braking system
Dead air brake
Approach angle
20°
Departure angle
13°
Cab
Single row / 3 passengers / Air Conditioner
Aerial work platform
Working platform dimensions
3000 x 900 x 1200 mm
Rated load
400 Kg
Max. working height
50 m
Operating range at max. working height
3 m
Max. operating range
32 m
Working height at max. operating range
38 m
Working boom
Seven section synchronous telescopic boom
PTO System
Electronic operation
Rotary device
360 deg continuous rotation
Derricking cylinder
2 set
Telescopic structure
Oil cylinder and wire rope
Outrigger
X-type hydraulic telescopic outrigger, separately controlled
Outrigger span(TVS)
8200 mm
Outrigger span(I)
7300 mm
Operation mode
Remote / electric / manual
Emergency system
Automatic
Control system
CAN bus control system
Leveling system
Liquid automatic leveling
Control voltage
24 V

PRODUCT STANDARD CONFIGURATION
Higher configuration for your choice
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket Panoramic operation room

Good visibility, more comfortable, can be equipped with air conditioning

High altitude working platform SITRAK 50m Aerial truck crane truck with working basket

Folding work platform

Light weight, high strength and small space occupation

MORE STABLE LIFTING
Equipped with reducer and automatic leveling system
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
Equipped with Dejin rotary reducer, the
movement speed is adjusted stably
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
Liquid automatic leveling system makes the working platform more stable

360 DEGREE ROTATION
The working platform and rotary device can rotate 360 degrees
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
The rotary device can rotate 360 degrees continuously
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
Hydraulic rotary device, 360 degree continuous rotation

FOUR IN ONE OPERATION
Different operation modes in different construction environments
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket

MULTIPLE SECURITY GUARANTEES
Multiple safety schemes to ensure personnel and construction safety
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
HYDRAULIC OUTRIGGER
X-type Three section hydraulic outrigger, can be adjusted separately, more stable
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
Interlock the outrigger and vehicle to prevent misoperation
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
The outrigger touches the ground unevenly, and the boom is restricted to work in a dangerous way
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket

AUTOMATIC EMERGENCY PUMP

When the engine and main pump fail, the staff can be sent back to the ground through the emergency system

High altitude working platform SITRAK 50m Aerial truck crane truck with working basket

For emergency stop operation and limit boom operation

High altitude working platform SITRAK 50m Aerial truck crane truck with working basket

When the working range reaches the specified value, the dangerous direction will be automatically limited
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
Equipped with wind speed detector, when the wind speed is too high, the height will be automatically limited
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
Equipped with load detector to automatically limit the height and amplitude according to different loads

MORE PRODUCT DETAILS
Details determine product quality
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket

PRODUCT PHOTOGRAPH
More real product photos
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket

MORE PRODUCTS
PRODUCTS CAN BE CUSTOMIZED ACCORDING TO YOUR NEEDS
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
Company Profile
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
Jiubang Heavy Industry, located in Jining, Shandong, China, is a well-known enterprise in the heavy machinery manufacturing industry and a national high-tech enterprise. The company started in 2010. The new factory covers an area of more than 60,000 square meters, with 370 employees and more than 1,000 after-sales outlets. An enterprise integrating industry and trade, focusing on the research and development, design, production and sales of aerial work vehicles, suspension cranes, folding arm cranes, spider crawler cranes, forklift trucks, new energy engineering vehicles, laser screed machines and other products. With laser cutting machines, bending machines, fully automatic digital processing equipment, and a number of technical patents, it provides better products and services for global customers. The products are exported to more than 20 countries and regions including Russia, Southeast Asia, Kazakhstan, the Middle East, and Africa. We sincerely invite businessmen from all over the world to develop together.
