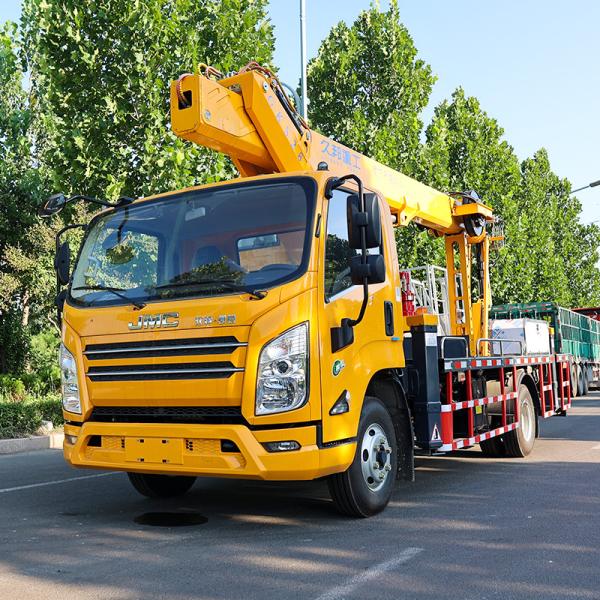

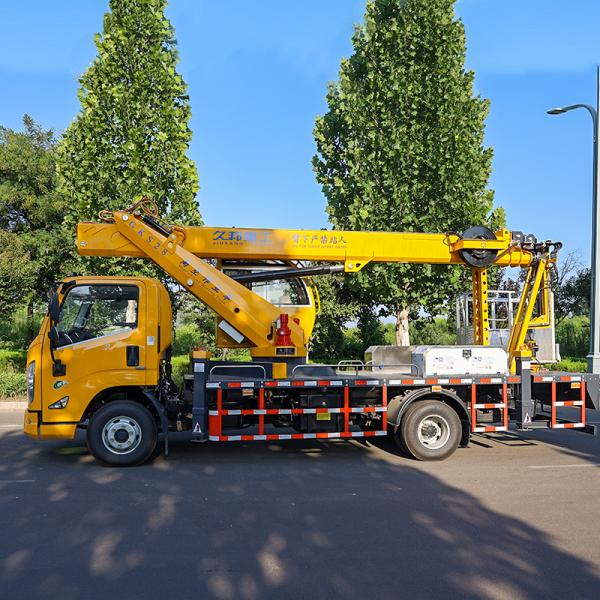

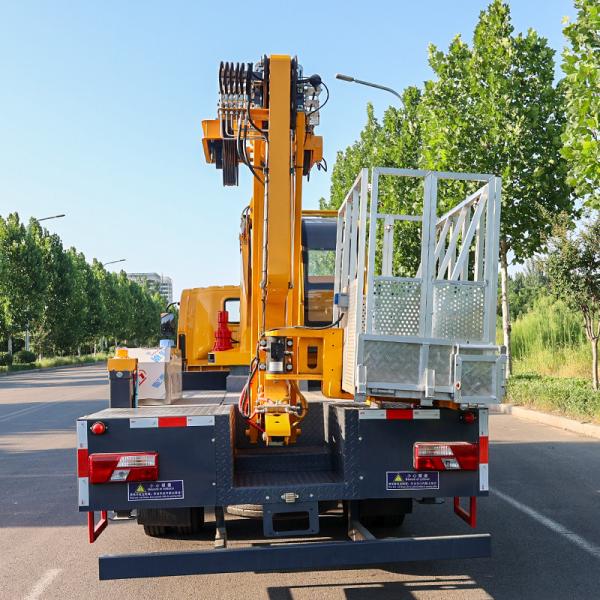

JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
Specifications
Place of Origin :
Shandong, China
Brand Name :
JIUBANG
Packaging Details :
Comply with Export Packaging Requirements
Supply Ability :
1000 Unit/Units per Year
Price :
discuss in detail
Model Number :
GKS28
Certification :
ISO9001、IAF/CNAS
MOQ :
1
Payment Terms :
T/T
Transmission Type :
Automatic
Condition :
New
Fuel Type :
Diesel
After-sales Service Provided :
Video technical support, Online support
Working platform dimensions :
1400 x 710 x 1200 mm
Max. working height :
27m
Max. operating range :
12 m
Rated load :
200 kg
Gross Vehicle Weight :
4495 Kg
Working boom :
Five section hexagonal work Boom
PTO System :
Mechanical operation
Rotary device :
360 deg continuous rotation
Port :
Tianjing, Lianyungang, Qingdao, Shanghai port
Description
Products Description
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
Jiubang 27m aerial working vehicle adopts JMC/JAC/ISUZU as the working platform chassis, with the working height up to 27m. The overall structure is made of high-strength steel plates, which is safe and reliable. It is equipped with adjustable hydraulic outriggers, with a large span and more stable; Equipped with manual control, electric control, remote control and other modes of operation, convenient and fast; It also has interlock, soft retreat protection, automatic limit of working height in dangerous environment and automatic emergency system to protect personnel safety and construction safety.
Brand
JAC/JMC/Isuzu
Drive
4 x 2
Dimensions(L x W x H)
5995 x 2000 x 2980(mm)
Gross Vehicle Weight
4495 Kg
Engine
Isuzu
Horsepower
95/115 HP
Max. speed
110 / 99 Km/h
Emission Standard
Euro VI
Wheelbase
3360 mm
Braking system
Oil brake
Approach angle
27°
Departure angle
11°
Cab
Single row / 2 passengers / Air Conditioner
Aerial work platform
Working platform dimensions
1400 x 710 x 1200 mm
Rated load
200 Kg
Max. working height
27 m
Operating range at max. working height
3 m
Max. operating range
12 m
Working height at max. operating range
17 m
Working boom
Five section hexagonal work Boom
PTO System
Mechanical operation
Rotary device
360 deg continuous rotation
Derricking cylinder
1 set
Telescopic structure
Oil cylinder and wire rope
Outrigger
Front V and rear H, separately controlled
Outrigger span(TVS)
4140 mm
Outrigger span(I)
4300 mm
Operation mode
Remote / electric / manual
Emergency system
Automatic
Control system
CAN bus control system
Leveling system
Liquid automatic leveling
Control voltage
12 V

MORE STABLE LIFTING
Equipped with reducer and automatic leveling system
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
Equipped with Dejin rotary reducer, the movement speed is adjusted stably
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
Liquid automatic leveling system makes the working platform more stable

360 DEGREE ROTATION
The working platform and rotary device can rotate 360 degrees
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
The rotary device can rotate 360 degrees continuously
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
The manned platform can rotate 360 degrees continuously

FOUR IN ONE OPERATION
Different operation modes in different construction environments
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform

MULTIPLE SECURITY GUARANTEES
Multiple safety schemes to ensure personnel and construction safety
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
HYDRAULIC OUTRIGGER
Front V and rear H type design, can be adjusted separately, more stable
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
Interlock the outrigger and vehicle to prevent misoperation
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
The outrigger touches the ground unevenly, and the boom is restricted to work in a dangerous way
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
AUTOMATIC EMERGENCY PUMP
When the engine and main pump fail, the staff can be sent back to the ground through the emergency system
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
For emergency stop operation and limit boom operation
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
When the working range reaches the specified value, the dangerous direction will be automatically limited

MORE PRODUCT DETAILS
Details determine product quality
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform

OPTIONAL CONFIGURATION
Products support customization, giving you more choices
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
Panoramic operation room
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
Enlarge the working platform

PRODUCT PHOTOGRAPH
More real product photos
JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
