Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit
Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit
Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit
Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit
Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit
Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit
Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit
Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit
Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit
Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit
Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit
Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit
Specifications
Place of Origin :
Anhui, China (Mainland)
Brand Name :
JNTECH
Model Number :
JNP22KH
Supply Ability :
1000 Set/Sets per Month
Packaging Details :
Standard export carton packing with wooden-pallet.
MOQ :
2 Set/Sets
Price :
$2,000.00 - $2,500.00 / Sets
Dc. Max. input voltage :
880V
Recommended MPPT voltage :
460-850VDC
Max. MPPT efficiency :
99%
Max. motor output power :
22KW
Rated output voltage :
380-460Vac three phase
Output frequency Range :
0-50/60Hz
Communication :
RS485/GPRS
Display :
LCD
Protection level :
IP65
Port :
Shanghai port, Ningbo port, Nanjing port
Description
Jntech good quality three phase 380v solar water pump inverter 22kw for farm irrigation in Yemen

1. Introduction of JNTECH three phase AC solar pump inverter

Jntech solar pumping inverter is AC three phase 50/60Hz inverter, there are two series of solar pumping

inverter,output 220V-240V inverters range from 1.1kw to 4kw. and 380-460V inverters range from 2.2kw

to 132kw.

Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit

Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit

Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit

2.Features of Three phase AC solar pump inverter

1), Wide MPPT range,tracking the max. power point to improve the efficiency of the Whole system.

efficiency is more than 99%.

2), With IP65 design, It can be installed outside with good waterproof.

3), Matching for any ordinary three phase 50Hz/60Hz pumps.

3), Full protection function can keep the system always in safe operation.

4), Three years warranty time.

5),Modular design,easy to install,operate and maintain.

3. Technical parameter of solar pump inverter

Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 49A
Max. MPTT efficiency 99%
Number of Strings 1
Max. applicable motor output power 22KW
Rated output voltage 380-460Vac 3 phase
Output frequency range 0-50/60Hz
Rated output current 42A
Dimension(W/H/D) 460x580x251mm
weight 31.5kg
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC above 60ºC need derate operation
Cooling method Force cooling
Display LCD
Communication interface RS485
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN 50178; IEC/EN 62109-1; IEC61800

4. Application of solar pump inverter

Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit

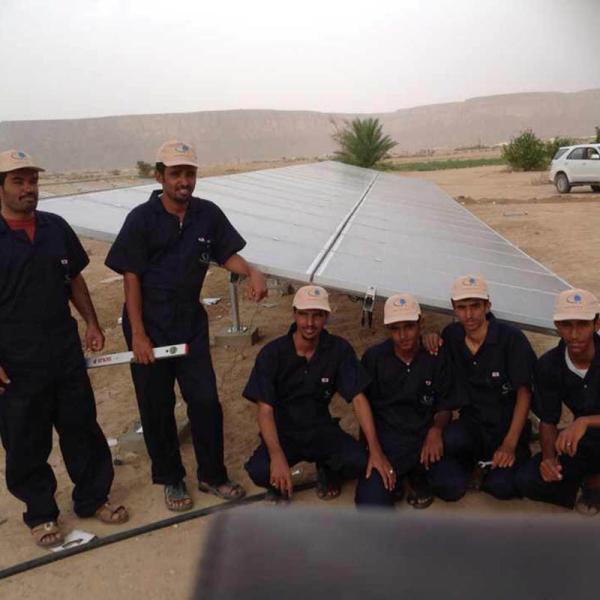

5.Project on-site

Three Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump KitThree Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump KitThree Phase 380v Solar Powered Irrigation System , 22kw Solar Water Well Pump Kit

Packaging & Shipping

By sea Delivery from Shanghai or Ningbo or Nanjing seaport
By air Departure from Shanghai Pudong Airport
By express By TNT/DHL/FedEx
